Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
Remove the intake manifold. Refer to: Intake Manifold .

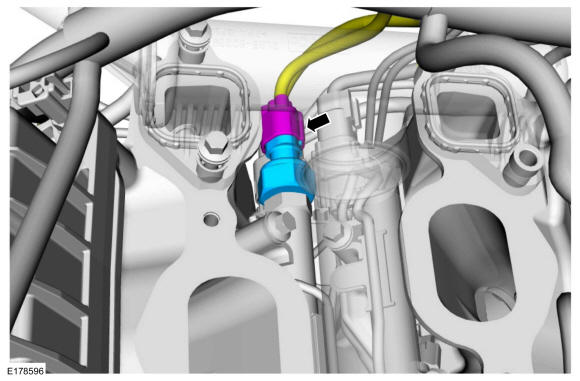

- Disconnect the FRP sensor electrical connector.
- Remove the FRP sensor.

Courtesy of FORD MOTOR COMPANY
