Fuel Rail Pressure (FRP) Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
-

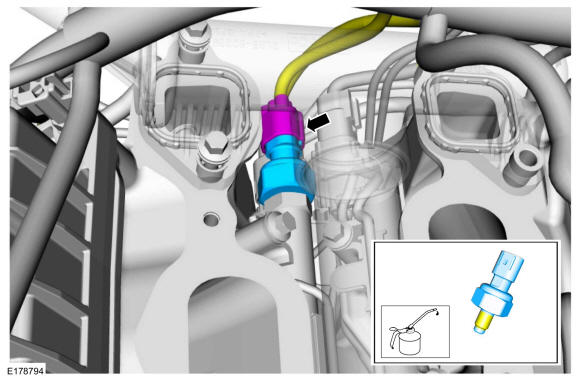

NOTE: Lubricate the thread area of the new FRP sensor with clean engine oil prior to installation.
- Install the FRP sensor.
Torque: 24 lb.ft (33 Nm)
- Connect the FRP sensor electrical connector.
- Install the FRP sensor.
- Install the intake manifold. Refer to: Intake Manifold .
- Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
