Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

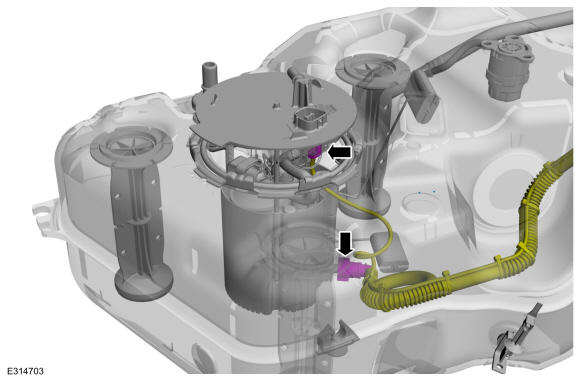

Reconnect the electrical connector and quick connector. Refer to: Quick Release Coupling

Courtesy of FORD MOTOR COMPANY

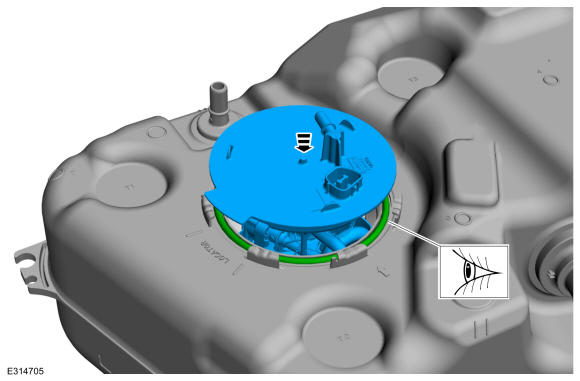

NOTE: Use new O-Ring Seal.

NOTE: Make sure that the seal is correctly located.

Courtesy of FORD MOTOR COMPANY

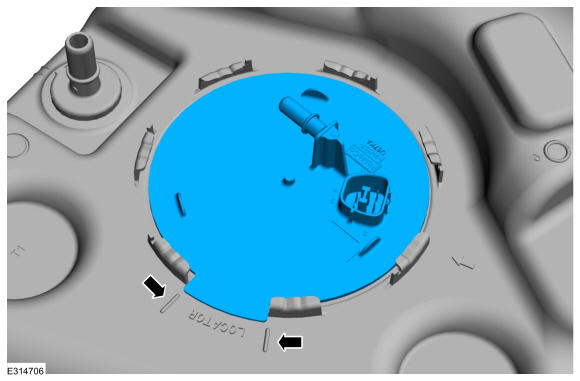

NOTE: Make sure that the location marks are aligned.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
