Fuel Lines: Removal
WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation steps.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions
- Release the fuel system pressure. Refer to: Fuel System Pressure Release
- Disconnect the battery. Refer to: Battery Cables - 2.5L Duratec - Hybrid (121kW/164PS) (BG)
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

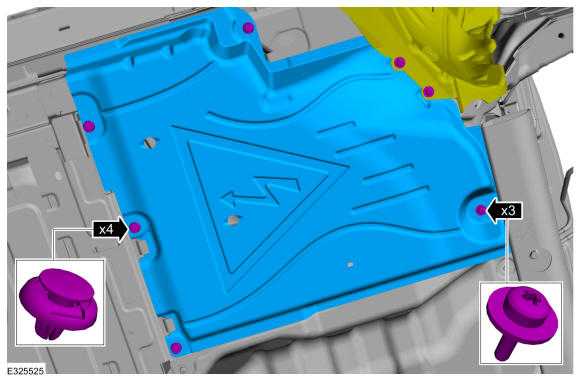

- Remove the high voltage battery. Refer to HIGH VOLTAGE BATTERY - HYBRID ELECTRIC VEHICLE (HEV) .
-
NOTE: Wrap the fuel line connector with a shop towel to absorb any residual fuel pressure during the removal of the fuel line.

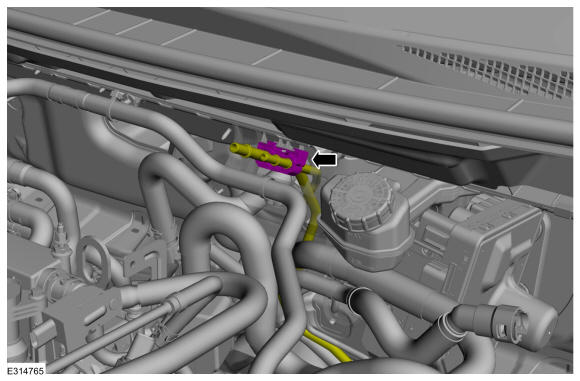

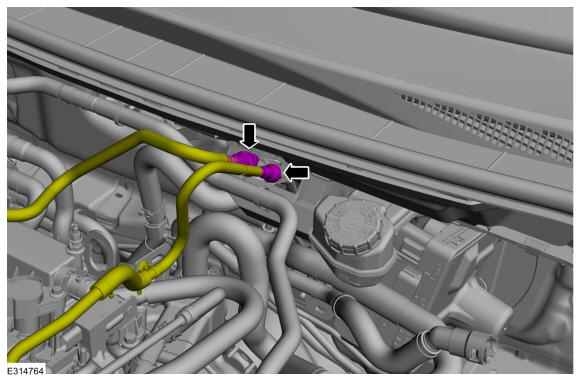

Disconnect the quick connectors. Refer to: Quick Release Coupling . Refer to: Spring Lock Couplings
- Detach the retainer clip.
-

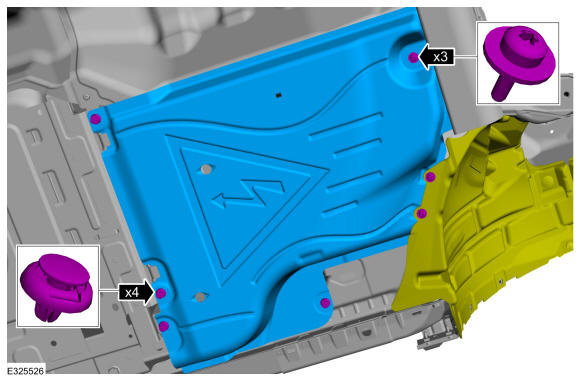

- Remove the retainers.
- Remove the screws and position the RH wheel arch liner aside.
Torque: 22 lb.in (2.5 Nm)
- Remove the RH air deflector.
-
- Remove the retainers.
- Remove the screws and position the LH wheel arch liner aside.
Torque: 22 lb.in (2.5 Nm)
- Remove the LH air deflector.

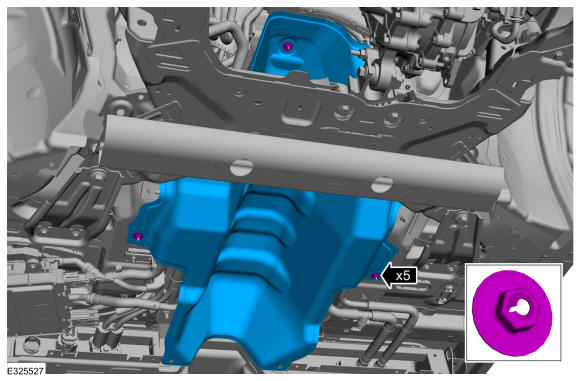

- Remove the nuts and heat shield.
Torque: 22 lb.in (2.5 Nm)
-

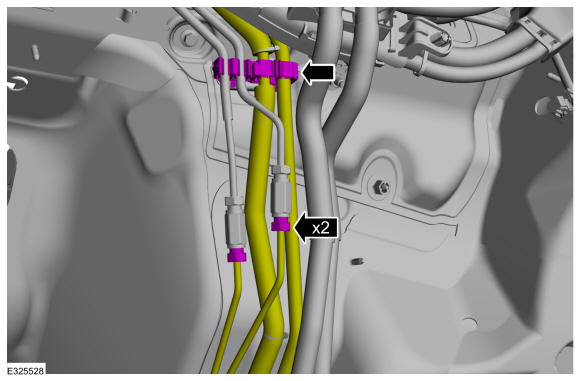

- Disconnect the front brake lines and detach the retainer clip.
Torque: 150 lb.in (17 Nm)
- Disconnect the front brake lines and detach the retainer clip.

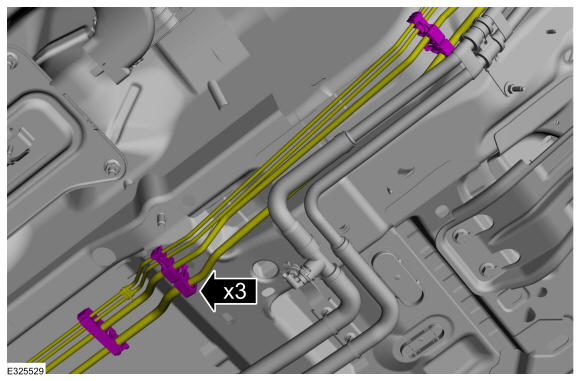

- Detach the retainer clips.
-
NOTE: Wrap the fuel line connector with a shop towel to absorb any residual fuel pressure during the removal of the fuel line.

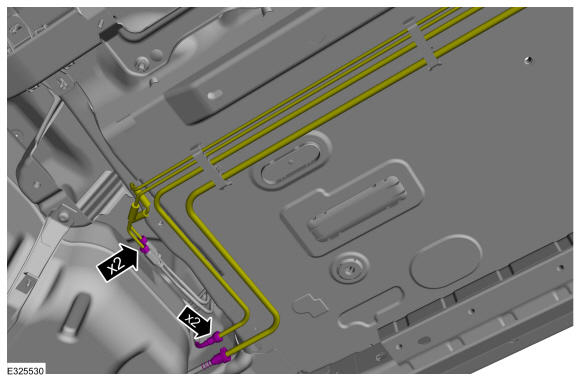

- Remove the quick connectors. Refer to: Quick Release Coupling
- Disconnect the rear brake lines retainers.
Torque: 150 lb.in (17 Nm)

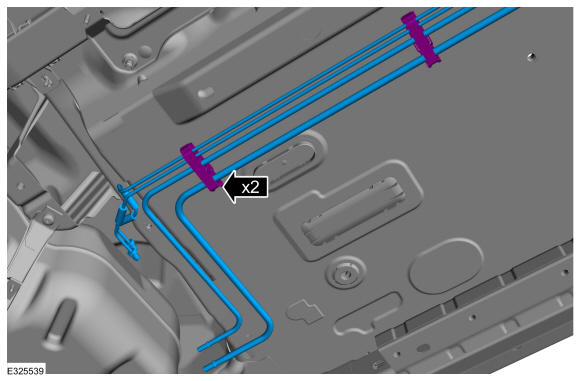

- Detach the fuel tube retainers and remove the fuel lines.
