Main Control Valve Body: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The Solenoid Body Strategy Data Download procedure must be performed if a new main control valve body is installed.
  1. Remove the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .
  2. Place the vehicle in manual park override. Refer to: Transmission Park by Wire Manual Release .

    Auto-Start-Stop vehicles

  3. Remove the bolt and the transmission fluid auxiliary pump tube.

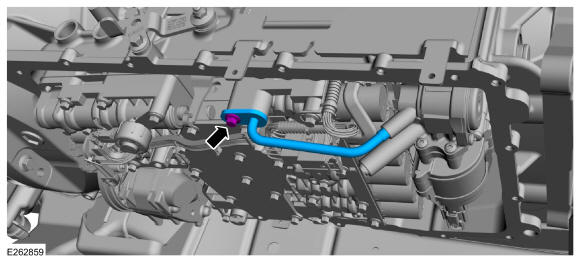

    GFD514230Courtesy of FORD MOTOR COMPANY
  4. Remove the transmission fluid auxiliary pump tube seal.

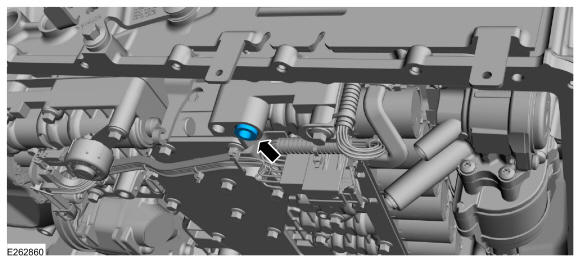

    GFD514231Courtesy of FORD MOTOR COMPANY

    All vehicles

  5. NOTE: The internal wiring harness electrical connector can not be fully disconnected until lowering the main control valve body.

    Unlock the internal wiring harness electrical connector.

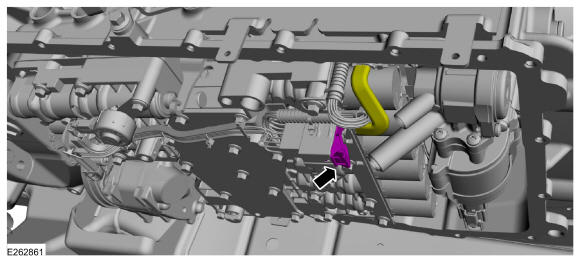

    GFD514232Courtesy of FORD MOTOR COMPANY
  6. Remove the main control valve body.

    1. While supporting the main control valve body, remove the main control-to-transmission case bolts.
    2. Disconnect the internal wiring harness electrical connector while removing the main control valve body.

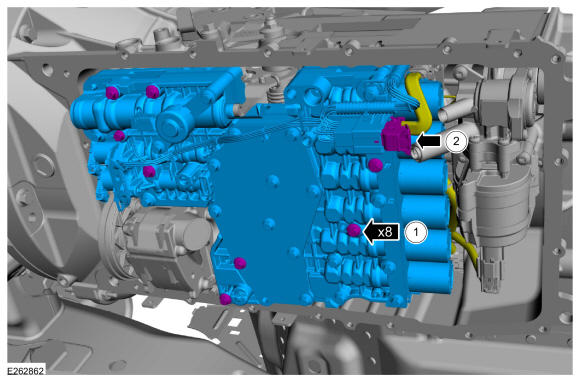

    GFD514233Courtesy of FORD MOTOR COMPANY
  7. Remove the main control assembly to transmission fluid pump seal.
GFD514234Courtesy of FORD MOTOR COMPANY
