Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
NOTE:
A slight twisting motion will aid in the installation of the VCT oil control solenoid
NOTE:
Keep the VCT oil control solenoid clean of dirt and debris.
NOTE:
Removal steps in this procedure may contain installation details.
RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the RH valve cover. Refer to: Valve Cover RH .

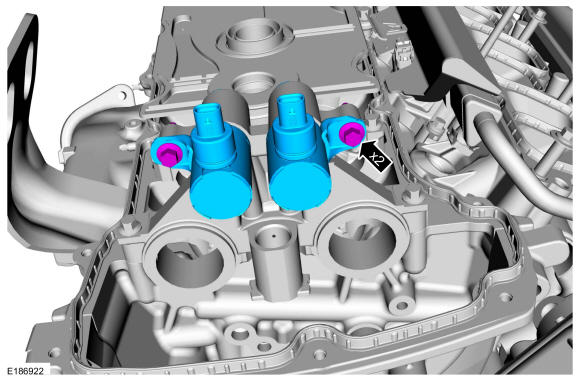

- Remove the bolts and the VCT oil control solenoids.
Torque: Stage 1: 71 lb.in (8 Nm) - - Stage 2: 20°
LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the LH valve cover. Refer to: Valve Cover LH .

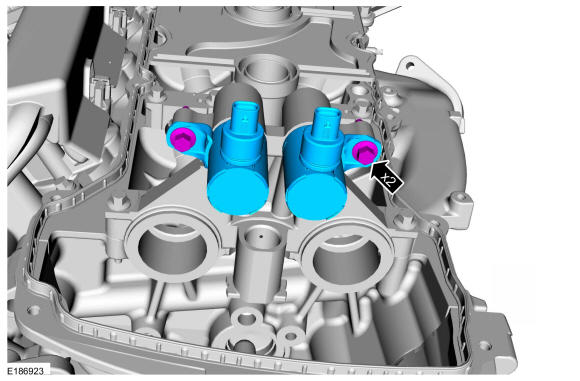

- Remove the bolts and the VCT oil control solenoids.
Torque: Stage 1: 71 lb.in (8 Nm) - - Stage 2: 20°
