Transmission Fluid Pump Idler Gear: Installation

WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new stator support seal on the front support. Lubricate the stator support seal with petroleum jelly.
    GFD514376Courtesy of FORD MOTOR COMPANY
  2. Using the special tool and a press, install the new transmission fluid pump idler gear bearing. Use Special Service Tool: 307-736 Installer, Pump Drive Gear Bearing. Use the General Equipment: Hydraulic Press
    GFD514375Courtesy of FORD MOTOR COMPANY
    1. Position the special tool on the front support. Use Special Service Tool: 307-737 Press Tool, Oil Pump Drive Idler Gear.
    2. NOTE: Install the transmission fluid pump idler gear with the grooved side up.
    3. Using the special tools and a dead blow hammer, install the new transmission fluid pump idler gear and bearing.
    GFD514377Courtesy of FORD MOTOR COMPANY
  4. Install the new transmission fluid pump drive gear with the flat side down.
    GFD514378Courtesy of FORD MOTOR COMPANY
  5. Install the front support cover by pressing down evenly by hand.
    GFD514379Courtesy of FORD MOTOR COMPANY
  6. NOTE: The front support cover snap ring ends are located in the cover Alignment features.

    Install the front support cover bolt and the front support cover snap ring.

    Torque

    : 62 lb. in (7 Nm)

    GFD514368Courtesy of FORD MOTOR COMPANY
  7. Install the new torque converter hub seal on the special tools. Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.
    GFD514720Courtesy of FORD MOTOR COMPANY

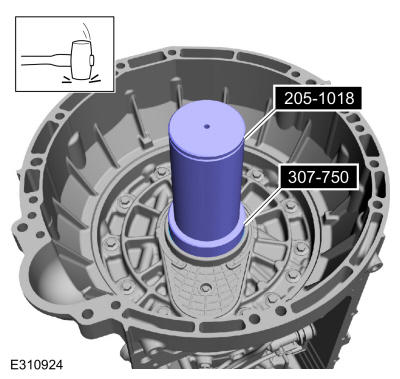

  8. Using the special tools, install the new torque converter hub seal. Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.
    GFD514776Courtesy of FORD MOTOR COMPANY
  9. Install the torque converter hub seal snap ring.
    GFD514381Courtesy of FORD MOTOR COMPANY
  10. Using the special tool, install the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.
    GFD514696Courtesy of FORD MOTOR COMPANY
  11. Install the special tool to hold the torque converter. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD514727Courtesy of FORD MOTOR COMPANY
    1. Install the new transmission fluid pump driven gear and the retaining ring.
    2. Install the transmission fluid pump driven gear outer cover.
    GFD514384Courtesy of FORD MOTOR COMPANY
  13. Install the transmission fluid pump and the bolts.

    Torque

    : 71 lb. in (8 Nm)

    GFD514136Courtesy of FORD MOTOR COMPANY

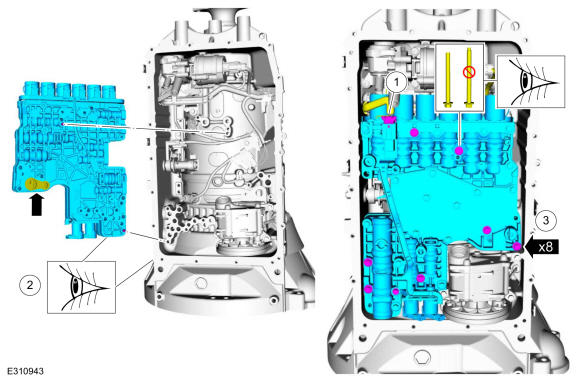

  14. NOTE: Do not install a 71 mm length bolt in the location shown or the transmission clutch and planetary container will be damaged and result in transmission failure.

    Loosely install the main control valve body.

    1. NOTE: Be sure the main control-to-case seal is attached to the main control.

      Connect the internal wiring harness electrical connector while installing the main control valve body.

    2. Align the guide pins on the main control valve body with the Alignment holes in the transmission case.
    3. Loosely install the 68 mm length main control-to-transmission case bolts.

    GFD514777Courtesy of FORD MOTOR COMPANY
  15. Tighten the bolts in the sequence shown.

    Torque

    : 89 lb. in (10 Nm)

    GFD514729Courtesy of FORD MOTOR COMPANY
  16. Lock the main control main electrical connector.
    GFD514130Courtesy of FORD MOTOR COMPANY
  17. Install the new filter seal in the pump.
    GFD514219Courtesy of FORD MOTOR COMPANY
  18. NOTE: If the bolts are installed in the wrong locations, transmission damage will occur.

    Install the new filter and the bolts in the correct locations.

    1. Short bolt 20 mm
    2. Long bolt 71 mm

    • Torque

      : 93 lb. in (10. 5 Nm)

    GFD514730Courtesy of FORD MOTOR COMPANY
  19. Clean and inspect the magnet and the retainer.
    GFD514731Courtesy of FORD MOTOR COMPANY
  20. NOTE: The transmission fluid pan gasket can be reused if not damaged.

    Align the tabs in the noted location and install the transmission fluid pan gasket.

    GFD514698Courtesy of FORD MOTOR COMPANY
  21. Install the transmission fluid pan and tighten the bolts in a crisscross pattern.

    1. Studbolts

      Torque

      : 106 lb. in (12 Nm)

    2. Bolts

      Torque

      : 89 lb. in (10 Nm)

    GFD514697Courtesy of FORD MOTOR COMPANY
  22. Install the transmission fluid level indicator.

    Torque

    : 52 lb. ft (70 Nm)

    GFD514699Courtesy of FORD MOTOR COMPANY
  23. To install the transmission assembly. Refer to: Transmission .
