Transmission - 3. 3L Duratec-V6: Installation

WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Prior to installing a new transmission or an overhauled transmission with a new main control, record the solenoid strategy identification tag. If a new main control was installed, install the replacement solenoid body tag over the original identification tag.
  1. NOTE: Prior to installation of the transmission, lubricate the torque converter pilot hub or damage to the torque converter or the engine crankshaft can occur.

    Lubricate the torque converter pilot hub with multi-purpose grease.

    Material

    : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD514336Courtesy of FORD MOTOR COMPANY
  2. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    GFD514337Courtesy of FORD MOTOR COMPANY
  3. Install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD514338Courtesy of FORD MOTOR COMPANY
  4. NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.
    NOTE: If transmission was disassembled, add transmission fluid to the transmission.
    NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.

    1. Remove the transmission fluid fill plug transmission fluid level indicator assembly.
    2. Verify transmission is filled with transmission fluid.
    3. Slightly tilt the transmission rearward.
    4. If the transmission was disassembled, add 11. 9 L (12. 6 qt) of transmission fluid to the transmission through the transmission fluid fill hole.

      Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    • Loosely install the transmission fluid fill plug when finished.

    GFD514307Courtesy of FORD MOTOR COMPANY
  5. Support the front of the engine with a jack stand and block of wood. Use the General Equipment: Wooden Block
    GFD514339Courtesy of FORD MOTOR COMPANY

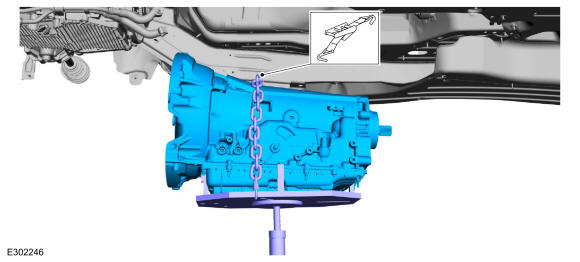

  6. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, position the transmission in the vehicle. Use the General Equipment: Transmission Jack Use the General Equipment: Retaining Strap

    GFD514757Courtesy of FORD MOTOR COMPANY
  7. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD514302Courtesy of FORD MOTOR COMPANY
  8. Align the index-mark made during removal.
    GFD514340Courtesy of FORD MOTOR COMPANY
  9. NOTE: Make sure the torque converter is fully seated in the transmission before aligning the transmission to the engine.

    1. Install the lower bellhousing bolt far enough to be used as guide pins.
    2. Install the upper bell housing bolt and tighten until the transmission bellhousing contacts the engine.

    • Tighten the bellhousing bolts.

      Torque: 35 lb. ft (48 Nm)

    GFD514341Courtesy of FORD MOTOR COMPANY
  10. Install the RH bellhousing bolt.

    Torque

    : 35 lb. ft (48 Nm)

    GFD514334Courtesy of FORD MOTOR COMPANY
  11. Install the upper bellhousing studbolts and bolt.

    Torque

    : 35 lb. ft (48 Nm)

    GFD514333Courtesy of FORD MOTOR COMPANY
  12. Connect the wiring harness retainers and the vent tube.
    GFD514332Courtesy of FORD MOTOR COMPANY
  13. Install the LH bellhousing studbolts and bolt.

    Torque: 35 lb. ft (48 Nm)

    GFD514331Courtesy of FORD MOTOR COMPANY
  14. Connect the wiring harness retainers on the studbolts.
    GFD514330Courtesy of FORD MOTOR COMPANY
  15. NOTE: Only rotate the crankshaft in a clockwise direction.

    Using a magnetic socket, install the new torque converter nuts. Use the General Equipment: Magnetic Socket

    Torque: 35 lb. ft (48 Nm)

    GFD514342Courtesy of FORD MOTOR COMPANY
  16. Install the torque converter nut access cover and the retainers.
    GFD514328Courtesy of FORD MOTOR COMPANY
  17. Connect the transmission electrical connector and the retainers.
    GFD514326Courtesy of FORD MOTOR COMPANY
  18. Install the front driveshaft assembly. Refer to: Front Driveshaft .

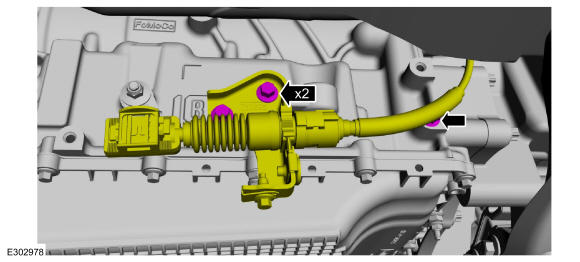

  19. Position back the selector lever cable, install the new bolts and attach the cable retainer.

    Torque: 97 lb. in (11 Nm)

    GFD514760Courtesy of FORD MOTOR COMPANY
  20. Install the heat shield and the retainers

    Torque: 80 lb. in (9 Nm)

    GFD514284Courtesy of FORD MOTOR COMPANY

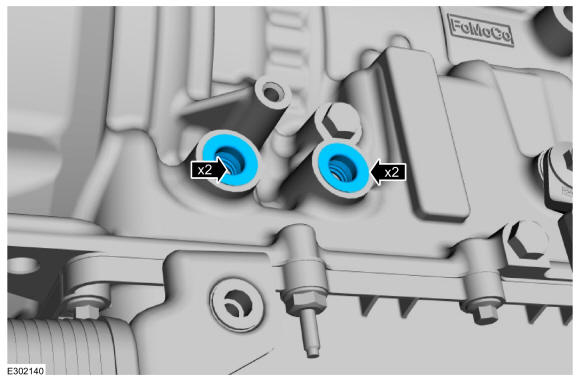

  21. Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
    GFD514761Courtesy of FORD MOTOR COMPANY
  22. Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.

    1. Seal (7D285).

      Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    2. Backing ring (7J324).

    GFD514762Courtesy of FORD MOTOR COMPANY

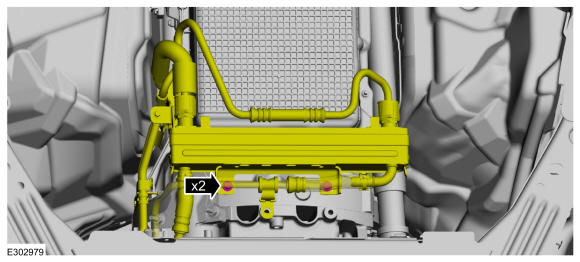

  23. Position back the transmission cooler assembly and install the bolts.

    Torque: 177 lb. in (20 Nm)

    GFD514767Courtesy of FORD MOTOR COMPANY
    1. Connect the transmission fluid cooler tubes to the transmission and install a new bolt.

      Torque: 177 lb. in (20 Nm)

    2. Install the cooler tube bracket bolt.

      Torque

      : 177 lb. in (20 Nm)

    GFD514763Courtesy of FORD MOTOR COMPANY

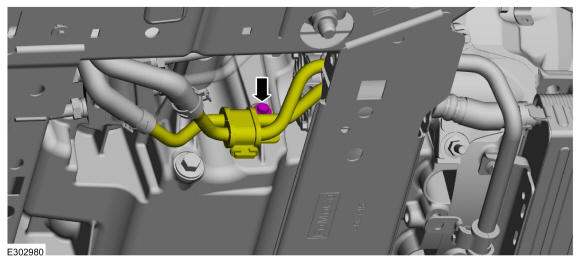

  25. Install the engine coolant tube bracket bolt.

    Torque

    : 89 lb. in (10 Nm)

    GFD514765Courtesy of FORD MOTOR COMPANY

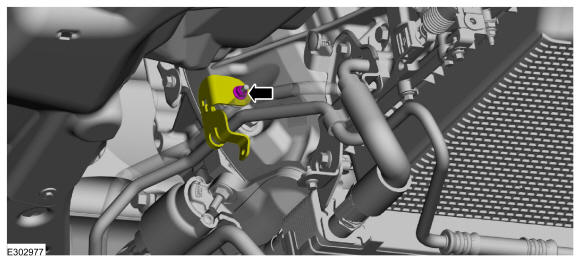

  26. Install the transmission fluid cooler tube bracket nut.

    Torque

    : 89 lb. in (10 Nm)

    GFD514764Courtesy of FORD MOTOR COMPANY
  27. Install the starter motor. Refer to: Starter Motor .
  28. Install the RH catalytic converter. Refer to: Catalytic Converter RH .
  29. Install the LH catalytic converter. Refer to: Catalytic Converter LH .
  30. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
  31. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
  32. If a new transmission or a new main control was installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
  33. If the transmission was overhauled, the adaptive drive cycle must be updated. Refer to: Adaptive Learning Drive Cycle .
  34. While driving the vehicle, use the scan tool to verify that the TFT has reached a temperature of 96°-101°C (206°-215°F). This will circulate the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system.
  35. Check the transmission fluid level Refer to: Transmission Fluid Level Check .
  36. Install the rear underbody shield, bolts and the pin-type retainers.

    Torque

    : 22 lb. in (2. 5 Nm)

    GFD514327Courtesy of FORD MOTOR COMPANY
    1. Install the underbody shield and the bolts.

      Torque

      : 22 lb. in (2. 5 Nm)

    2. Install pin-type retainer.
GFD514281Courtesy of FORD MOTOR COMPANY
