Transmission - 3. 0L EcoBoost: Installation

WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to installing a new transmission or an overhauled transmission with a new main control, record the solenoid strategy identification tag. If a new main control was installed, install the replacement solenoid body tag over the original identification tag.

NOTE: Prior to installation of the transmission, lubricate the torque converter pilot hub or damage to the torque converter or the engine crankshaft can occur.

Lubricate the torque converter pilot hub with multi-purpose grease.

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY
NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

Courtesy of FORD MOTOR COMPANY
Install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.

NOTE: If transmission was disassembled, add transmission fluid to the transmission.

NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.
1. Remove the transmission fluid fill plug transmission fluid level indicator assembly.
2. Verify transmission is filled with transmission fluid.
3. Slightly tilt the transmission rearward.
4. If the transmission was disassembled, add 11. 9 L (12. 6 qt) of transmission fluid to the transmission through the transmission fluid fill hole.
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
- Loosely install the transmission fluid fill plug when finished.
Courtesy of FORD MOTOR COMPANY
Support the front of the engine with a jack stand and block of wood. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
NOTE: Secure the transmission to the transmission jack with a safety strap.

NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

Using a high-lift transmission jack, position the transmission in the vehicle. Use the General Equipment: Transmission Jack Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY
Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY

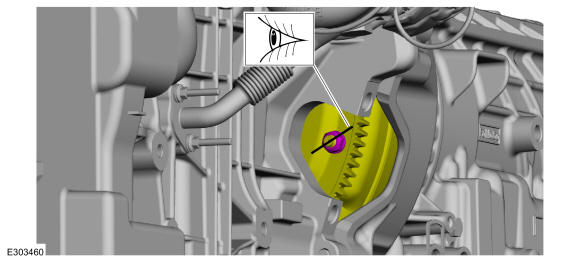

Align the index-mark made during removal.

Courtesy of FORD MOTOR COMPANY

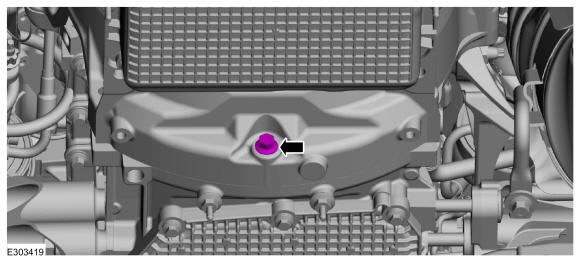

Install the lower bellhousing bolt.
Torque: 35 lb. ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

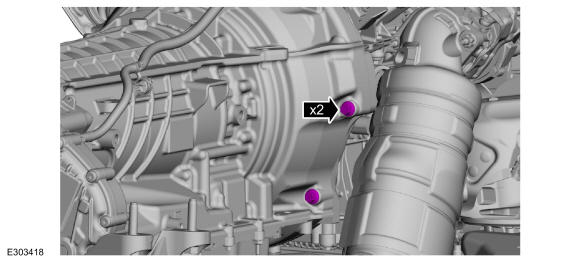

Install the RH bellhousing bolts.
Torque: 35 lb. ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

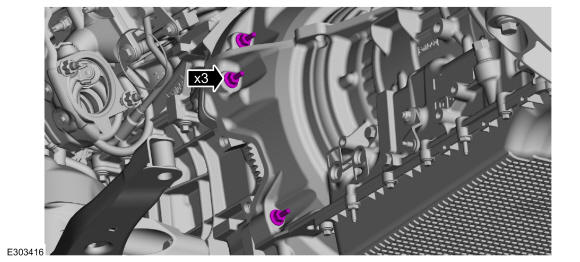

Install the upper bellhousing studbolts and bolt.
Torque: 35 lb. ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

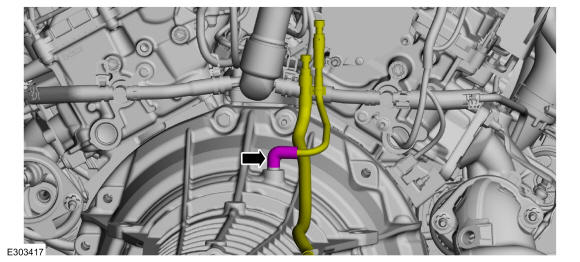

Connect the vent tube.

Courtesy of FORD MOTOR COMPANY
Install the LH bellhousing studbolts.
Torque

: 35 lb. ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft in a clockwise direction.

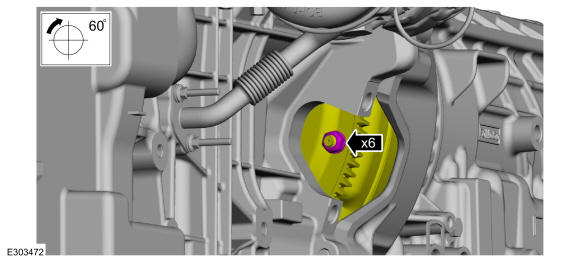

Using a magnetic socket, install the new torque converter nuts. Use the General Equipment: Magnetic Socket

Torque

: 35 lb. ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the transmission electrical connector and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the starter motor. Refer to: Starter Motor .
Install the transfer case. Refer to: Transfer Case .
Position back the selector lever cable, install the new bolts and attach the cable retainer.
Torque

: 97 lb. in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the heat shield and the retainers
Torque

: 80 lb. in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.

Courtesy of FORD MOTOR COMPANY
Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
1. Seal (7D285).
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
2. Backing ring (7J324).
Courtesy of FORD MOTOR COMPANY

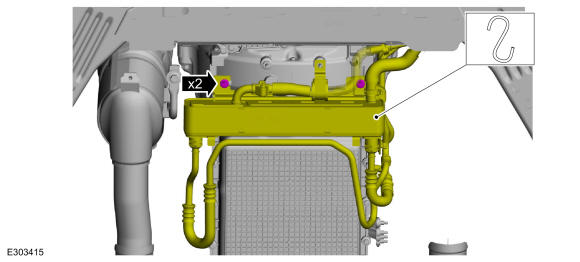

Position back the transmission cooler assembly and install the bolts.
Torque

: 177 lb. in (20 Nm)

Courtesy of FORD MOTOR COMPANY
1. Connect the transmission fluid cooler tubes to the transmission and install a new bolt.
  Torque

  : 177 lb. in (20 Nm)
2. Install the cooler tube bracket bolt.
  Torque

  : 177 lb. in (20 Nm)
Courtesy of FORD MOTOR COMPANY

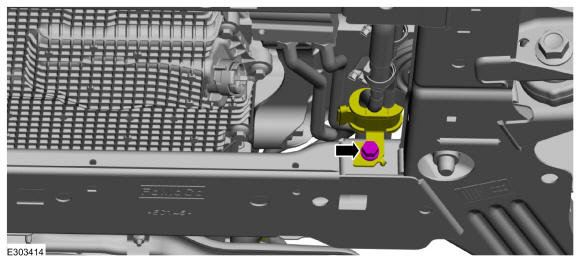

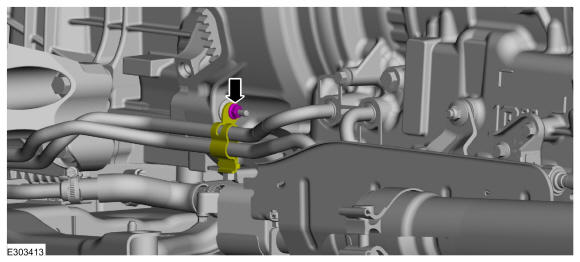

Install the engine coolant tube bracket bolt.
Torque

: 89 lb. in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube bracket nut.
Torque

: 89 lb. in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
If a new transmission or a new main control was installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
If the transmission was overhauled, the adaptive drive cycle must be updated. Refer to: Adaptive Learning Drive Cycle .
While driving the vehicle, use the scan tool to verify that the TFT has reached a temperature of 96°-101°C (206°-215°F). This will circulate the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system.
Check the transmission fluid level Refer to: Transmission Fluid Level Check .
Install the rear underbody shield, bolts and the pin-type retainers.
Torque

: 22 lb. in (2. 5 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the underbody shield and the bolts.
  Torque

  : 22 lb. in (2. 5 Nm)
2. Install pin-type retainer.

Courtesy of FORD MOTOR COMPANY
