Main Control Valve Body: Installation
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
- Install the main control assembly to transmission fluid pump seal.
-
NOTE: Do not install a 71 mm length bolt in the location shown or the transmission clutch and planetary container will be damaged and result in transmission failure.
Loosely install the main control valve body.

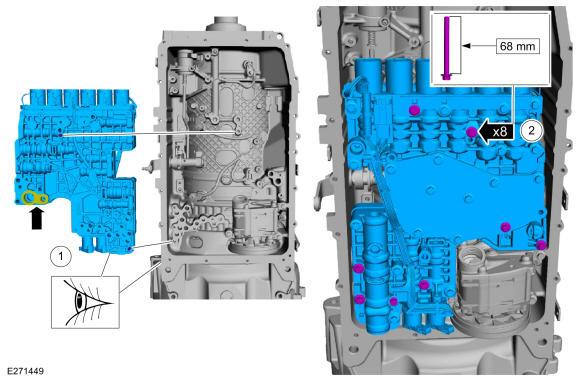

- Align the guide pins on the main control valve body with the Alignment holes in the transmission case.
- Loosely install the 68 mm length main control-to-transmission case bolts.

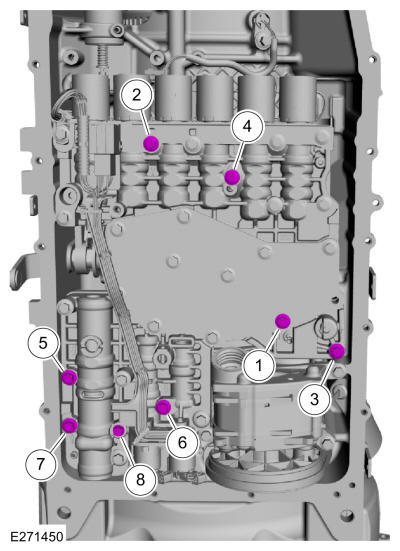

- Tighten the bolts in the sequence shown.
Torque: 89 lb. in (10 Nm)

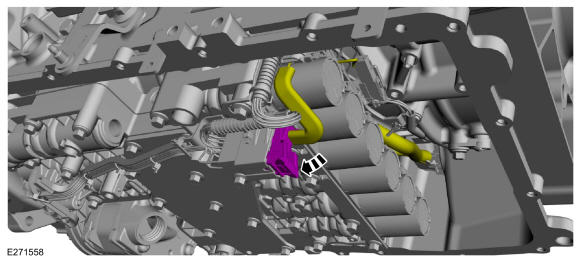

- Connect the internal wiring harness electrical connector.
- Install the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .
-
NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new main control valve body is installed. A new main control valve body service tag must be installed over the current main control valve body service tag on the transmission case.
If a new main control valve body was installed, download a new transmission strategy. Refer to: Transmission Strategy Download .
