Clutch Disc and Pressure Plate: Installation
WARNING: This page is about a different variant/trim than selected.

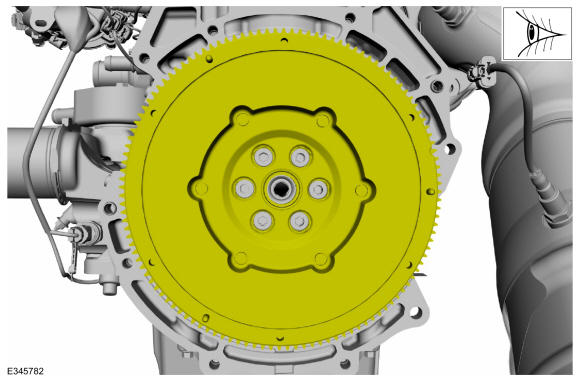

- Inspect the flywheel for damage, burn marks or wear and install a new flywheel if necessary.
-
NOTE: When installing the clutch disc, position the side marked as "transmission side" toward the transmission or damage can occur.NOTE: If installing the original pressure plate, align it using the index-marks made during removal or a clutch system vibration can occur.

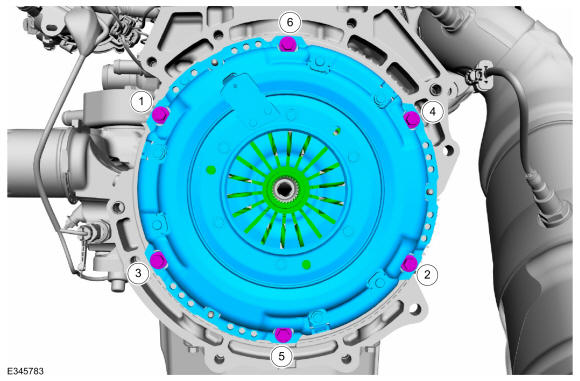

Using a clutch aligner, position the clutch disc on the flywheel. If installing the original pressure plate, align the pressure plate to the flywheel using the index-marks made during removal. Install the pressure plate and pressure plate bolts by turning the bolts 1 turn at a time in a star pattern until the clutch is fully secured. Use the General Equipment: Clutch Alignment Tool
Torque:
Stage 1: 53 lb.in (6 Nm)
Stage 2: 18 lb.ft (25 Nm)
Stage 3: 22 lb.ft (30 Nm)
- Install the transmission. Refer to: Transmission - 2.3L EcoBoost (199kW/270PS) .
- After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
