Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

7-Speed Manual Transmission - MT88/10-Speed Automatic Transmission - 10R60

  1. Remove the engine. Refer to: Engine .

    10-Speed Automatic Transmission - 10R60

    • Remove the bolts and the flexplate.

    • Discard the flexplate bolts.

    GFD624140Courtesy of FORD MOTOR COMPANY

    7-Speed Manual Transmission - MT88

  3. NOTE: If the parts are to be reused, index-mark the pressure plate to the flywheel. Failure to install the pressure plate to the flywheel in the original position may result in a clutch system vibration.

    • Remove the pressure plate bolts by turning them 1 turn at a time in a star pattern until the clutch is fully released and remove the pressure plate and the clutch disc.

    • Discard the pressure plate bolts.

    GFD624141Courtesy of FORD MOTOR COMPANY
    • Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

    • Remove the bolts and the flywheel.

    • Discard the flywheel bolts.

    GFD624142Courtesy of FORD MOTOR COMPANY

    7-Speed Manual Transmission - MT88/10-Speed Automatic Transmission - 10R60

  5. Using a floor crane, install the engine on a mounting stand. Use the General Equipment: Mounting Stand
    GFD624143Courtesy of FORD MOTOR COMPANY
  6. Remove the engine lift equipment.
    GFD624144Courtesy of FORD MOTOR COMPANY
  7. Remove the oil level indicator.
    GFD624145Courtesy of FORD MOTOR COMPANY
    • Disconnect the wiring harness electrical connectors.

    • Detach the wiring harness from the bracket.

    GFD624146Courtesy of FORD MOTOR COMPANY

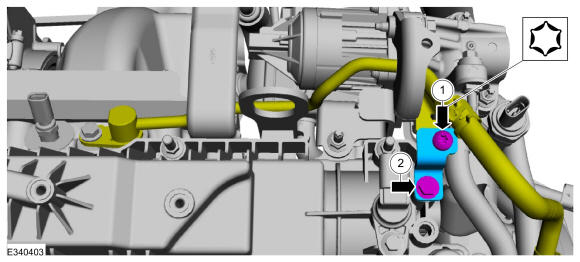

    1. Remove the coolant tube bracket bolt.
    2. Remove the coolant tube bolt and the bracket.
    GFD624147Courtesy of FORD MOTOR COMPANY
  10. NOTE: This step is necessary for clearance to remove the valve cover.

    Remove the bolt and position the coolant tube aside.

    GFD624148Courtesy of FORD MOTOR COMPANY
  11. Disconnect the CHT sensor wiring harness electrical connector and detach the retainers.
    GFD624149Courtesy of FORD MOTOR COMPANY
    • Disconnect the wiring harness electrical connectors.

    • Detach the wiring harness retainers.

    • Position the wiring harness aside.

    GFD624150Courtesy of FORD MOTOR COMPANY
  13. Remove the fuel pump cover stud.
    GFD624151Courtesy of FORD MOTOR COMPANY

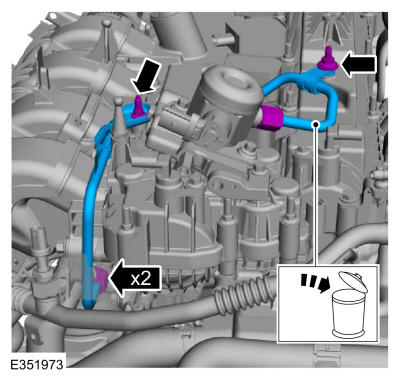

    • Remove the high-pressure fuel tube bolts.

    • Loosen the flare nuts, remove and discard the high-pressure fuel tube.

    GFD624152Courtesy of FORD MOTOR COMPANY
  15. Remove the bolt and the bracket.
    GFD624153Courtesy of FORD MOTOR COMPANY

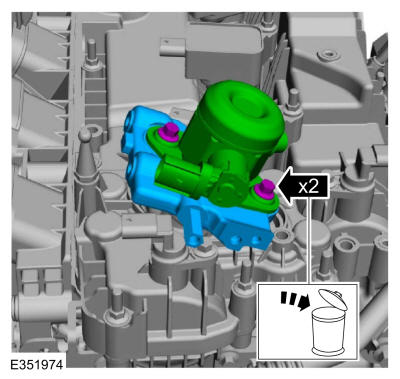

    • Remove and discard the bolts.

    • Remove the high-pressure fuel pump and mounting plate.

    GFD624154Courtesy of FORD MOTOR COMPANY
  17. Remove and discard the high-pressure fuel pump O-ring seal.
    GFD624155Courtesy of FORD MOTOR COMPANY

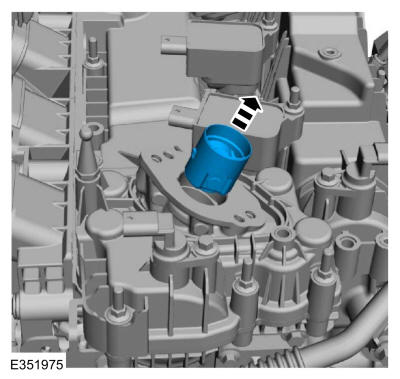

  18. Remove the high-pressure fuel pump tappet.
    GFD624156Courtesy of FORD MOTOR COMPANY
  19. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the stud bolts and the ignition coil-on-plugs.

    GFD624157Courtesy of FORD MOTOR COMPANY

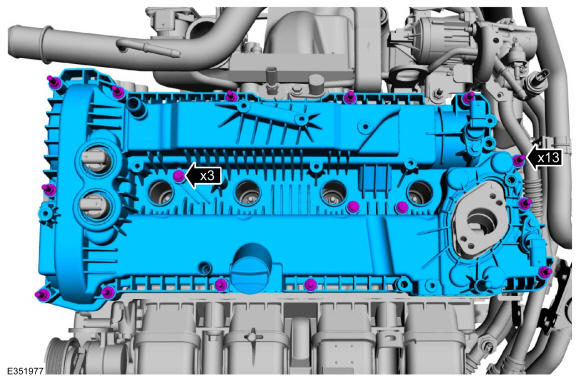

  20. Loosen the fasteners and remove the valve cover.
    GFD624158Courtesy of FORD MOTOR COMPANY
  21. Remove and discard the valve cover gaskets.
    GFD624159Courtesy of FORD MOTOR COMPANY
  22. NOTE: The VCT solenoid seals should only be replaced if they are damaged.

    • Inspect the VCT oil control solenoid seals for damage.

    • If damaged, using the special tools, remove and discard the VCT oil control solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1687 Installer, VCT Solenoid Seal.

    GFD624160Courtesy of FORD MOTOR COMPANY
  23. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD624161Courtesy of FORD MOTOR COMPANY
  24. Remove the bolts and the high-pressure fuel pump drive unit.
    GFD624162Courtesy of FORD MOTOR COMPANY

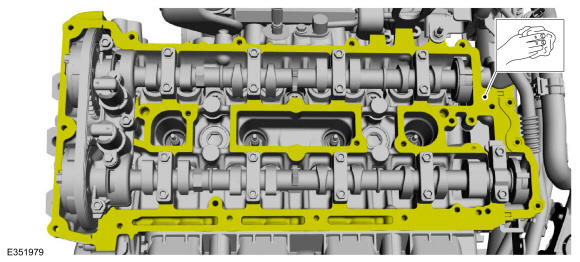

  25. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD624163Courtesy of FORD MOTOR COMPANY
  26. Remove the bolts and the accessory drive belt tensioner.
    GFD624164Courtesy of FORD MOTOR COMPANY

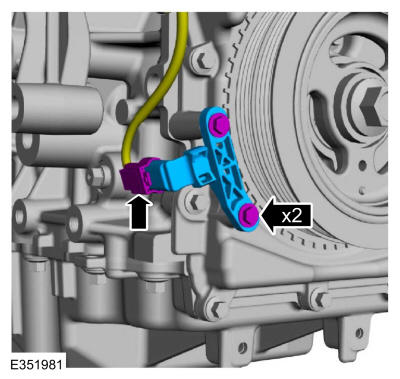

    • Disconnect the CKP sensor electrical connector.

    • Remove the bolts and the CKP sensor.

    GFD624165Courtesy of FORD MOTOR COMPANY
  28. Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.
    GFD624166Courtesy of FORD MOTOR COMPANY

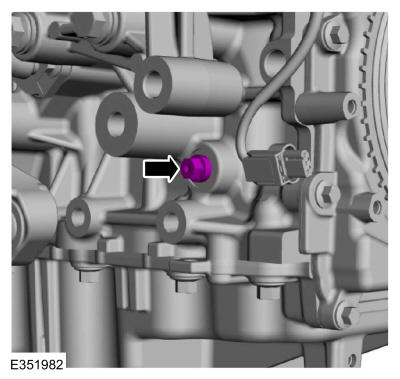

  29. Remove the engine plug bolt.
    GFD624167Courtesy of FORD MOTOR COMPANY

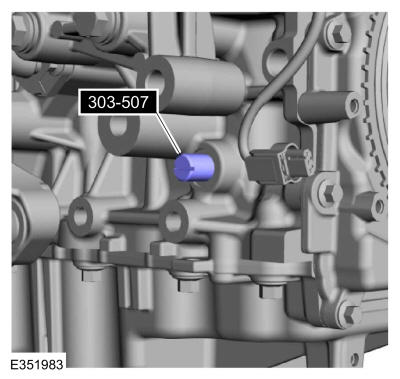

  30. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    GFD624168Courtesy of FORD MOTOR COMPANY
  31. NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.
    NOTE: The engine front cover is removed from graphic for clarity.

    Rotate the crankshaft clockwise until the contacts the special tool. Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    GFD624169Courtesy of FORD MOTOR COMPANY
  32. NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Tool cannot be installed, remove the TDC Timing Peg and rotate the crankshaft three-fourths of a revolution clockwise and repeat the previous 2 steps of this procedure.

    Install Special Service Tool: 303-1685 Alignment Tool, Camshaft.

    GFD624170Courtesy of FORD MOTOR COMPANY
  33. NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be removed using an air impact wrench (1/2-in drive minimum).

    • Using the special tool, remove the bolt, washer and the crankshaft pulley. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

    • NOTE: Retain the original crankshaft pulley bolt to use for the removal of the crankshaft front seal.

      Discard the bolt.

    GFD624001Courtesy of FORD MOTOR COMPANY
  34. Install the old crankshaft pulley bolt.
    GFD623986Courtesy of FORD MOTOR COMPANY
  35. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    GFD623987Courtesy of FORD MOTOR COMPANY

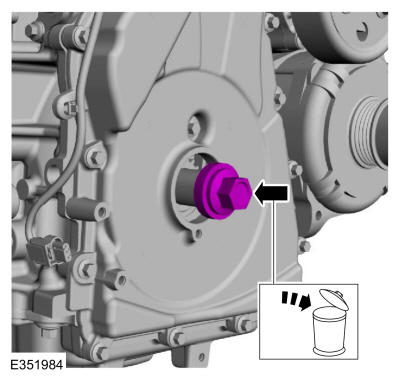

  36. NOTE: If necessary, retain the original crankshaft pulley bolt to use in other procedures.

    Remove and discard the crankshaft pulley bolt.

    GFD624171Courtesy of FORD MOTOR COMPANY
  37. Remove the bolts and the coolant pump pulley.
    GFD624172Courtesy of FORD MOTOR COMPANY
  38. Detach wiring harness retainers from the engine front cover and stud bolts.
    GFD624173Courtesy of FORD MOTOR COMPANY

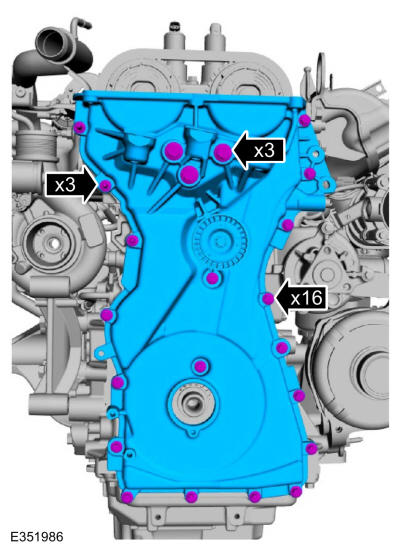

  39. Remove the fasteners and the engine front cover.
    GFD624174Courtesy of FORD MOTOR COMPANY
  40. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD624053Courtesy of FORD MOTOR COMPANY

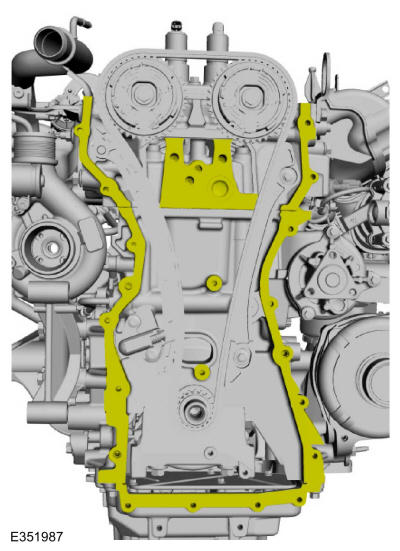

  41. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD624175Courtesy of FORD MOTOR COMPANY

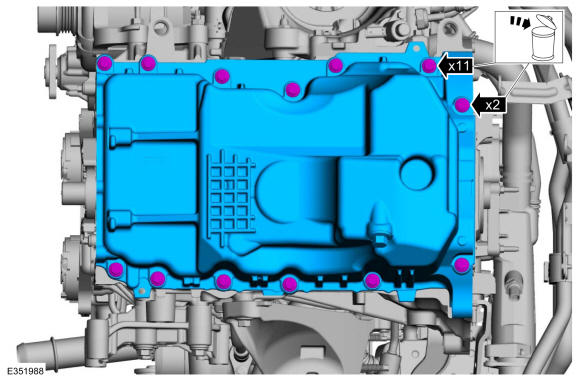

  42. NOTE: Do not strike the oil pan sideways to remove, the oil pan is doweled and will damage the oil pan and engine block.

    • Remove the bolts and the oil pan.

    • Discard the bolts.

    GFD624176Courtesy of FORD MOTOR COMPANY
  43. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD624177Courtesy of FORD MOTOR COMPANY

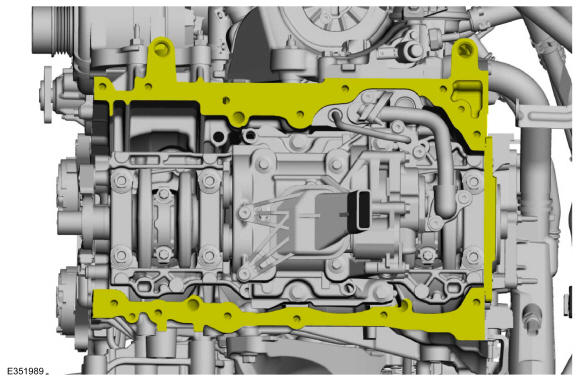

  44. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD624178Courtesy of FORD MOTOR COMPANY
