Section 2 (Engine - 2.3L ECOBOOST (199KW/270PS)): Removal: Engine

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Magnetic Socket
Floor Crane
Oil Drain Equipment
Trolley Jack
Side Cutter Pliers
Hose Clamp Remover/Installer
Knife
Wooden Block

Materials

Name Specification
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B -

7-Speed Manual Transmission - MT88/10-Speed Automatic Transmission - 10R60

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD624059Courtesy of FORD MOTOR COMPANY
  3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  4. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  5. Remove the following items:

    1. Remove the battery tray. Refer to: Battery Tray .
    2. Remove the hood. Refer to: Hood .
    3. Remove the air cleaner. Refer to: Air Cleaner .
    4. Remove the accessory drive belt. Refer to: Accessory Drive Belt .
    5. Remove the EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
    6. Remove the LH and RH fender splash shields. Refer to: Fender Splash Shield .
    7. Remove the engine front undershield. Refer to: Engine Front Undershield .
    8. Remove the engine rear undershield. Refer to: Engine Rear Undershield .

  6. NOTE: The crankcase vent tube may have either a permanent or quick connect connector at one or both ends. If the tube needs to be removed for any reason, the permanent connector(s) must be cut to remove the tube. The tube will then need to be replaced.
    NOTE: If the crankcase vent tube is replaced, the replacement part may not come with a crankcase pressure sensor. If so, the PCM will need to be reprogrammed.

    • If equipped, disconnect the wiring harness electrical connector.

    • Cut the lock tab, on both ends, if needed. Use the General Equipment: Side Cutter Pliers

    • Remove and discard the crankcase vent tube.

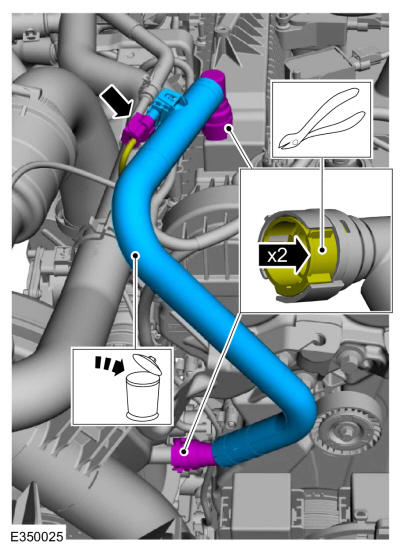

    GFD624242Courtesy of FORD MOTOR COMPANY
  7. Remove the ground cable bolt, retainer and position the ground cable on the engine.

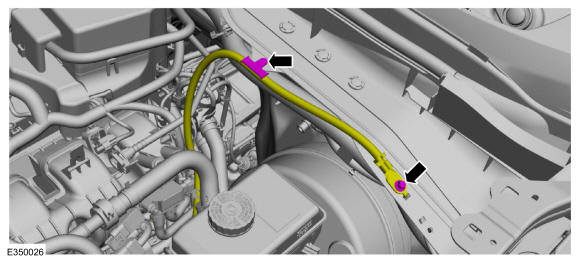

    GFD624243Courtesy of FORD MOTOR COMPANY

    • Disconnect the quick release coupling and the retainer from the intake manifold and position the brake vacuum tube assembly aside. Refer to: Quick Release Coupling .

    GFD624244Courtesy of FORD MOTOR COMPANY
  9. Disconnect the wiring harness electrical connector and detach the brake vacuum tube retainers and remove.
    GFD624245Courtesy of FORD MOTOR COMPANY

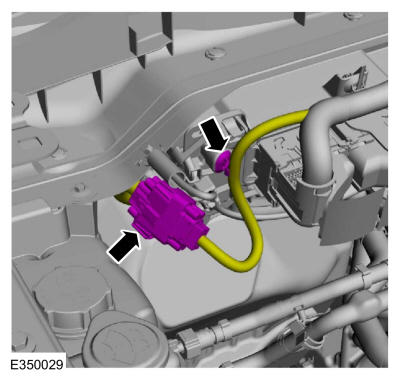

  10. Disconnect the engine wiring harness electrical connector and the retainer.
    GFD624246Courtesy of FORD MOTOR COMPANY
  11. Disconnect the PCM wiring harness electrical connector and the wiring harness retainers.

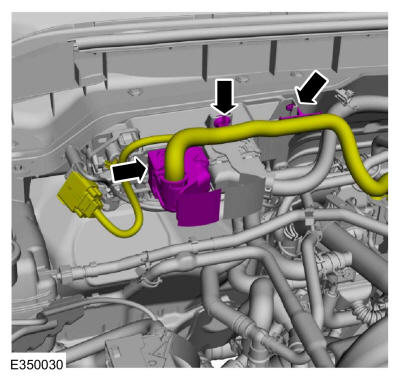

    GFD624247Courtesy of FORD MOTOR COMPANY
    • Detach the wiring harness retainer from the rear engine lift eye.

    • Detach the wiring harness retainers and position aside.

    GFD624248Courtesy of FORD MOTOR COMPANY

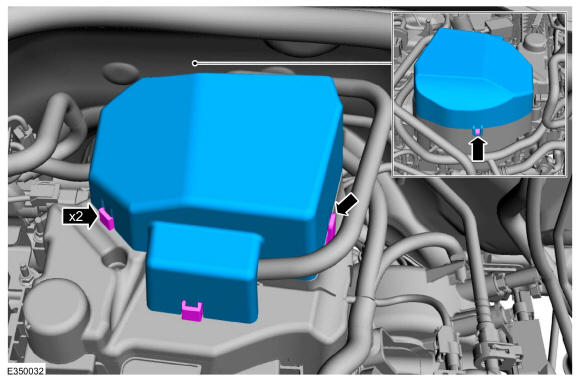

  13. Release the tabs and remove the upper plastic and foam high-pressure fuel pump cover.
    GFD624249Courtesy of FORD MOTOR COMPANY
  14. Remove the lower plastic and foam high-pressure fuel pump cover retainer and position the fuel tube up.

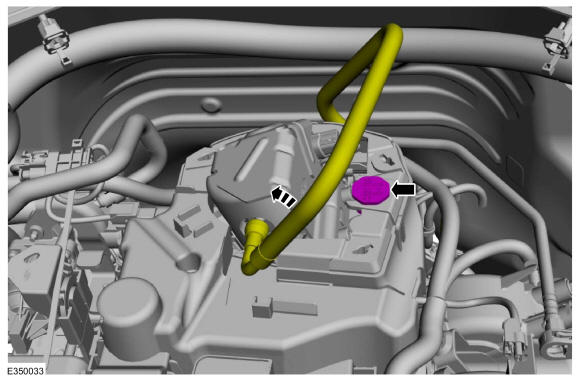

    GFD624250Courtesy of FORD MOTOR COMPANY
  15. NOTE: The lower plastic high-pressure fuel pump cover will only need to be cut one time and then can be reused.

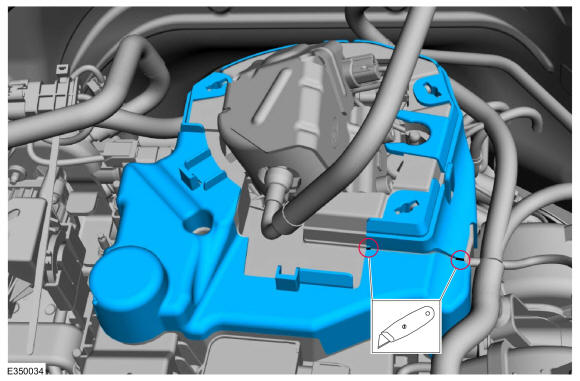

    Using a knife, cut the lower plastic high-pressure fuel pump cover at the two positions shown and remove the lower plastic high-pressure fuel pump cover. Use the General Equipment: Knife

    GFD624251Courtesy of FORD MOTOR COMPANY
    • Remove the lower foam high-pressure fuel pump cover retainer.

    • NOTE: The lower foam high-pressure fuel pump cover will only need to be cut one time and then can be reused.

      Using a knife, cut the lower foam high-pressure fuel pump cover at the position shown and remove. Use the General Equipment: Knife

    GFD624252Courtesy of FORD MOTOR COMPANY
  17. Position the fuel tube down.
    GFD624253Courtesy of FORD MOTOR COMPANY
  18. Remove the bolts and the high-pressure fuel pump crash bracket.
    GFD624254Courtesy of FORD MOTOR COMPANY
  19. NOTE: When removing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Remove the high-pressure fuel pump noise insulator.

    GFD624255Courtesy of FORD MOTOR COMPANY
  20. Disconnect the fuel tube spring lock coupling and position aside. Refer to: Spring Lock Couplings .
    GFD624256Courtesy of FORD MOTOR COMPANY
  21. Release the clip and remove the LH CAC pipe assembly.
    GFD624257Courtesy of FORD MOTOR COMPANY
  22. Release the clip and position the RH CAC pipe aside.
    GFD624258Courtesy of FORD MOTOR COMPANY
  23. Disconnect the diverter valve electrical connector and the wiring harness retainers.
    GFD624259Courtesy of FORD MOTOR COMPANY
  24. Loosen the turbocharger tube clamps.
    GFD624260Courtesy of FORD MOTOR COMPANY

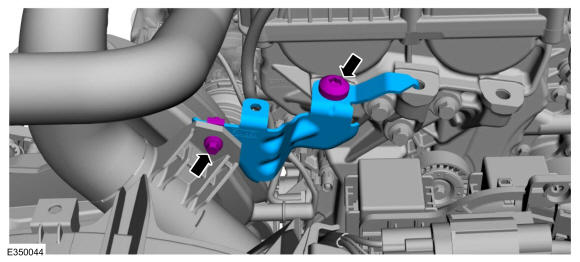

  25. Remove the bolts and the CAC pipe support bracket.
    GFD624261Courtesy of FORD MOTOR COMPANY
  26. Remove the CAC pipe and diverter valve assembly.
    GFD624262Courtesy of FORD MOTOR COMPANY
  27. Disconnect the upper radiator hose from coolant tube. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624263Courtesy of FORD MOTOR COMPANY
    • Disconnect the coolant hose from the rear coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Disconnect the degas bottle hose from coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Disconnect the heater hose from the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

    GFD624264Courtesy of FORD MOTOR COMPANY
  29. Disconnect the coolant hoses from engine coolant tubes. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624265Courtesy of FORD MOTOR COMPANY
    • Disconnect the A/C wiring harness electrical connectors.

    • Disconnect the A/C pressure sensor electrical connector.

    • Detach the wiring harness retainers from engine ground bolt and from the A/C compressor bracket and A/C line.

    GFD624266Courtesy of FORD MOTOR COMPANY
  31. Remove the nut and position the A/C compressor bracket aside.

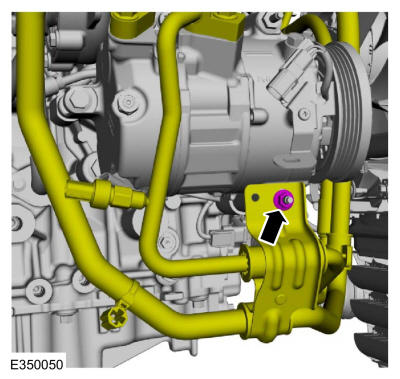

    GFD624267Courtesy of FORD MOTOR COMPANY

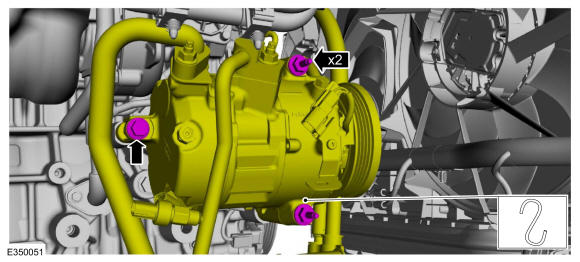

  32. Remove the bolt and stud bolts and position and support the A/C compressor aside.
    GFD624268Courtesy of FORD MOTOR COMPANY
    • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the oil pan drain bolt.

      Torque: 20 lb.ft (27 Nm)

    GFD623962Courtesy of FORD MOTOR COMPANY
  34. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD623963Courtesy of FORD MOTOR COMPANY
    1. Using brake cleaner, clean the drain troughs. Use the General Equipment: Oil Drain Equipment

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Wipe the drain troughs clean.
    GFD623964Courtesy of FORD MOTOR COMPANY

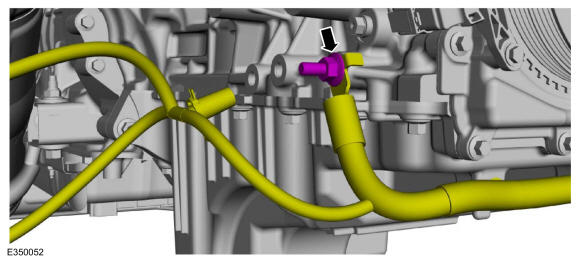

  36. Remove the ground wire stud bolt.
    GFD624269Courtesy of FORD MOTOR COMPANY
  37. Detach the wiring harness retainers from the front of the oil pan.
    GFD624270Courtesy of FORD MOTOR COMPANY
  38. Remove the nut and position the wiring harness from the generator stud bolt.
    GFD624271Courtesy of FORD MOTOR COMPANY
  39. Remove the nut and the LH splash shield bracket.
    GFD624060Courtesy of FORD MOTOR COMPANY
    • Remove and discard the bolt.

    • Separate the steering shaft and position aside.

    GFD624061Courtesy of FORD MOTOR COMPANY

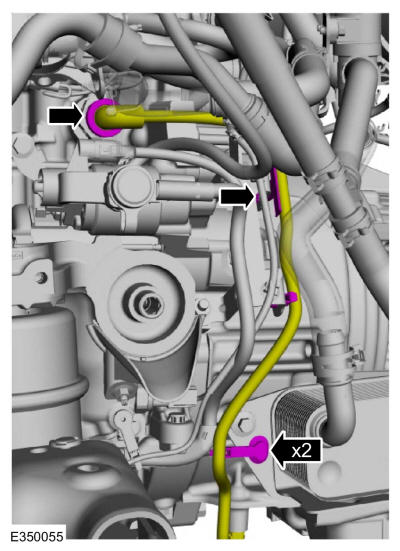

  41. If equipped, disconnect the block heater wiring harness electrical connector and retainers.
    GFD624272Courtesy of FORD MOTOR COMPANY
  42. NOTE: Automatic transmission shown, manual transmission similar.

    • If equipped, disconnect the block heater wiring harness retainers from transmission.

    • If equipped, disconnect the block heater wiring harness retainer from the RH side transmission stud bolt.

    GFD624273Courtesy of FORD MOTOR COMPANY
  43. If equipped, disconnect the block heater wiring harness retainer from the RH side of engine block and position aside.
    GFD624274Courtesy of FORD MOTOR COMPANY
  44. Remove the starter motor. Refer to: Starter Motor .
  45. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the starter motor insulator.

    GFD624275Courtesy of FORD MOTOR COMPANY

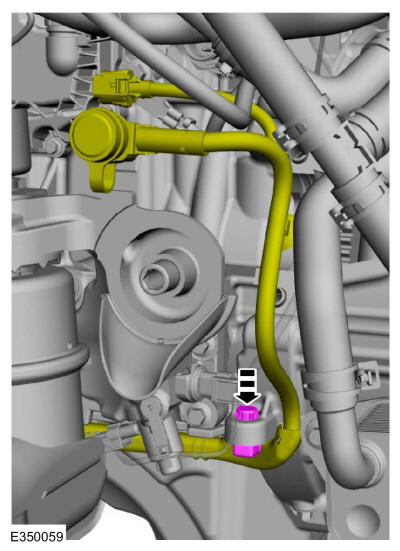

  46. Detach wiring harness retainer from LH side of the cylinder block.
    GFD624276Courtesy of FORD MOTOR COMPANY
  47. Disconnect the lower radiator hose from the thermostat housing and the retainer from the generator stud bolt. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624277Courtesy of FORD MOTOR COMPANY

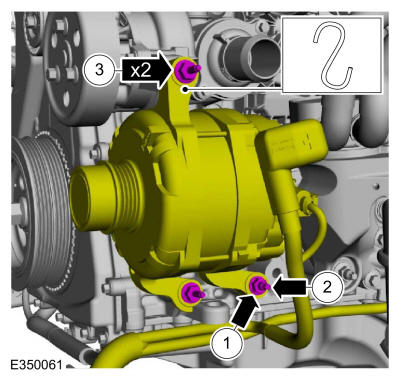

    1. Remove the generator nut.
    2. Remove the generator stud.
    3. Remove the stud bolts and position and support the generator aside.
    GFD624278Courtesy of FORD MOTOR COMPANY
  49. Remove the nut and the RH splash shield bracket.
    GFD624098Courtesy of FORD MOTOR COMPANY
  50. Remove the catalytic converter. Refer to: Catalytic Converter - 10-Speed Automatic Transmission - 10R60 . Refer to: Catalytic Converter - 7-Speed Manual Transmission - MT88 .
    NOTE: The step 51 is for vehicles without sway bar disconnect. Steps 52 thru 55 is for vehicles with sway bar disconnect.
    • Remove the nuts and bolts and lower the sway bar.

    • Discard the nuts and bolts.

    GFD624063Courtesy of FORD MOTOR COMPANY
  52. Remove the bolts and the sway bar disconnect skid plate.
    GFD624279Courtesy of FORD MOTOR COMPANY
  53. Disconnect the sway bar disconnect wiring harness electrical connectors and the retainers.
    GFD624280Courtesy of FORD MOTOR COMPANY

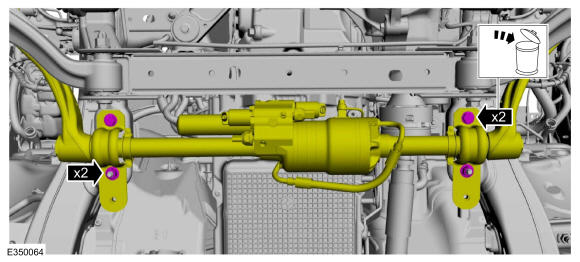

    • Remove the nuts and bolts and lower the sway bar disconnect.

    • Discard the bolts.

    GFD624281Courtesy of FORD MOTOR COMPANY
  55. Position the sway bar disconnect back so the front sway bar bracket holes are on the sway bar studs bolts and install the old nuts finger tight to position the sway bar aside.

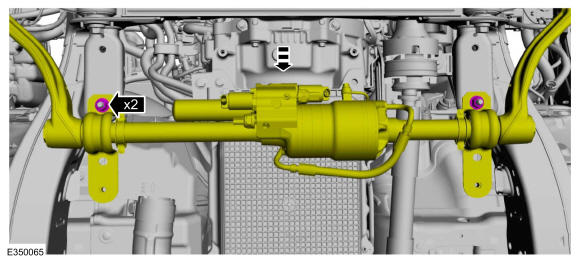

    GFD624282Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R60

  56. Disconnect transmission electrical connector and the wiring harness retainers and position the harness on the engine.
    GFD624283Courtesy of FORD MOTOR COMPANY
  57. Disconnect the coolant hoses from the transmission fluid cooler. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624284Courtesy of FORD MOTOR COMPANY

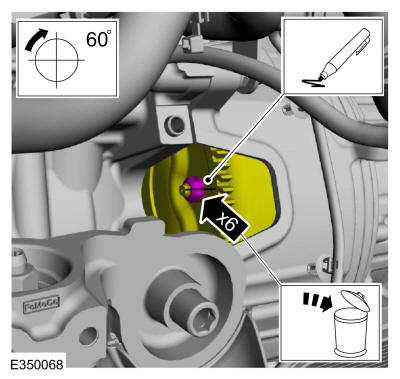

    • Index mark one stud and the flexplate for assembly reference.

    • NOTE: Only rotate the crankshaft in a clockwise direction.

      Remove and discard the torque convertor nuts. Use the General Equipment: Magnetic Socket

    GFD624285Courtesy of FORD MOTOR COMPANY
    • Detach the transmission and transfer case vent tubes retainer from the LH bracket.

    • Detach the fuel tube and vapor line retainer from the RH bracket.

    GFD624286Courtesy of FORD MOTOR COMPANY
  60. NOTE: This step is necessary to remove the coolant brackets in the next step.

    Remove the coolant tube bolt from under EGR cooler.

    GFD624287Courtesy of FORD MOTOR COMPANY
  61. Remove the nuts and position coolant brackets off the transmission stud bolts.
    GFD624288Courtesy of FORD MOTOR COMPANY
  62. Remove the upper bellhousing stud bolts.
    GFD624289Courtesy of FORD MOTOR COMPANY
  63. Remove the LH transmission bolts from behind transmission fluid cooler.
    GFD624290Courtesy of FORD MOTOR COMPANY
  64. Remove the lower bellhousing bolts.
    GFD624291Courtesy of FORD MOTOR COMPANY

    7-Speed Manual Transmission - MT88

    • Detach the transmission and transfer case vent tubes retainer from the LH bracket.

    • Detach the fuel tube and vapor line retainer from the RH bracket.

    GFD624292Courtesy of FORD MOTOR COMPANY
  66. Detach the catalyst monitor sensor wiring harness retainer.
    GFD624293Courtesy of FORD MOTOR COMPANY
  67. NOTE: This step is necessary to remove the coolant bracket in the next step.

    Remove the coolant tube bolt from under EGR cooler.

    GFD624294Courtesy of FORD MOTOR COMPANY
  68. Remove the nut and position coolant bracket off the transmission stud bolt.
    GFD624295Courtesy of FORD MOTOR COMPANY
  69. Remove the upper bellhousing stud bolts.
    GFD624296Courtesy of FORD MOTOR COMPANY
  70. Remove the LH transmission bolts.
    GFD624297Courtesy of FORD MOTOR COMPANY
  71. Remove the lower bellhousing stud bolts.
    GFD624298Courtesy of FORD MOTOR COMPANY

    7-Speed Manual Transmission - MT88/10-Speed Automatic Transmission - 10R60

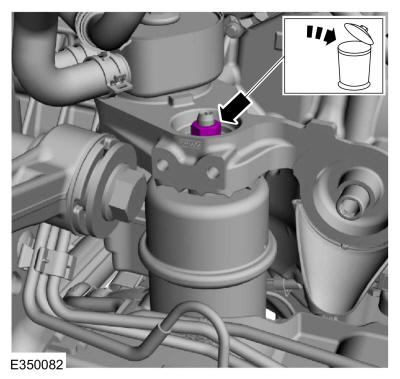

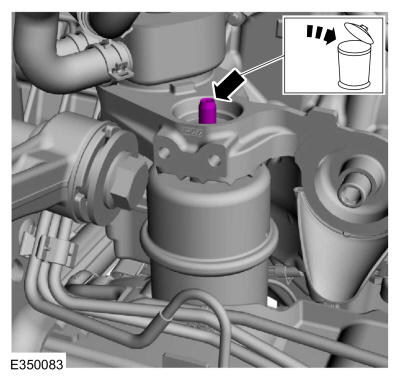

  72. Remove and discard the LH engine mount nut.
    GFD624299Courtesy of FORD MOTOR COMPANY
  73. Remove and discard the LH engine mount stud.
    GFD624300Courtesy of FORD MOTOR COMPANY

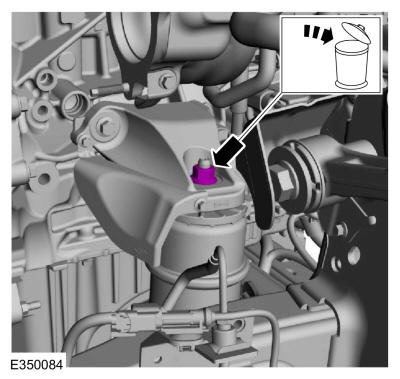

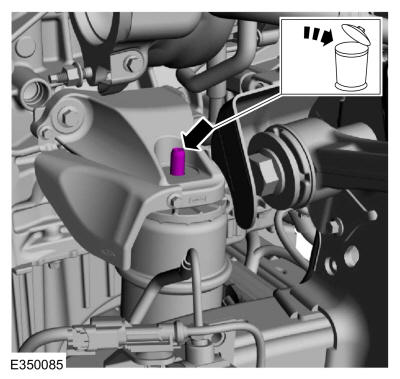

  74. Remove and discard the RH engine mount nut.
    GFD624301Courtesy of FORD MOTOR COMPANY
  75. Remove and discard the RH engine mount stud.
    GFD624302Courtesy of FORD MOTOR COMPANY
  76. NOTE: Automatic transmission shown, manual transmission similar.

    Loosen the transmission mount nuts.

    GFD624073Courtesy of FORD MOTOR COMPANY
  77. NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.
    NOTE: Automatic transmission shown, manual transmission similar.

    Support the bellhousing of the transmission with a suitable floor jack and a block of wood. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

    GFD624303Courtesy of FORD MOTOR COMPANY
  78. Install the engine lift equipment. Use the General Equipment: Floor Crane
    GFD624304Courtesy of FORD MOTOR COMPANY
  79. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the RH bellhousing bolts.

    GFD624305Courtesy of FORD MOTOR COMPANY
  80. With the aid of an assistant and using the floor crane, remove the engine. Use the General Equipment: Floor Crane
GFD624306Courtesy of FORD MOTOR COMPANY
scientia non olet · About LEMON Manuals
