Fuel Tank: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery. Refer to: Battery Disconnect and Connect .
  4. Drain the fuel tank. Refer to: Fuel Tank Draining .
    1. Detach the clip and disconnect the EVAP canister vent tube.
    2. Disconnect the electrical connector.
    3. Remove the quick release couplings and position aside the hoses. Refer to: Quick Release Coupling .

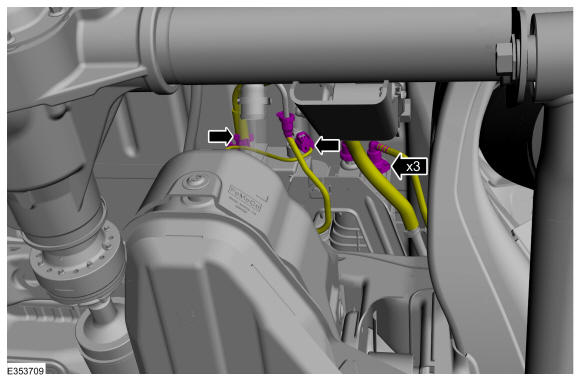

    GFD627147Courtesy of FORD MOTOR COMPANY

    3-Door

  6. Support the fuel tank and skid plate with a transmission jack and remove the bolts.

    Use the General Equipment: Transmission Jack

    Use the General Equipment: Retaining Strap

    Torque

    : 59 lb.ft (80 Nm)

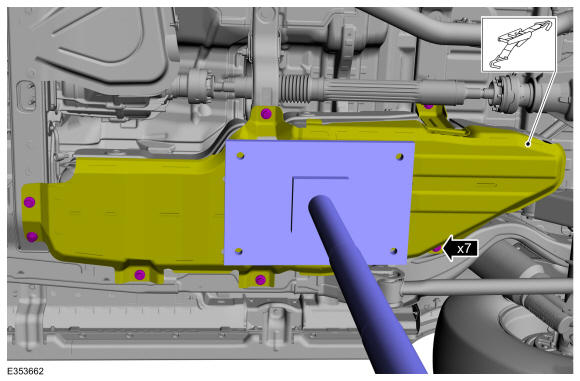

    GFD627148Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that no strain is placed on the fuel lines and wiring harnesses.

    Lower the fuel tank slowly to access the quick connectors and electrical connector.

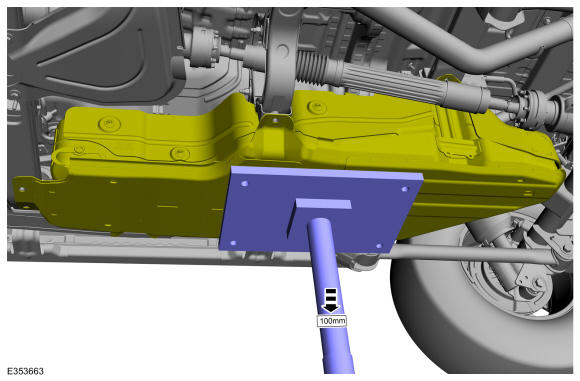

    GFD627149Courtesy of FORD MOTOR COMPANY
  8. Remove the quick release couplings. Refer to: Quick Release Coupling .

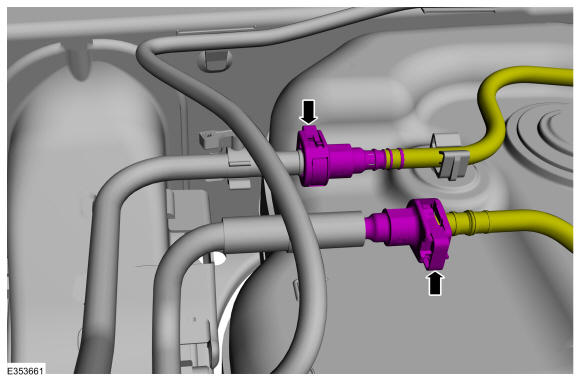

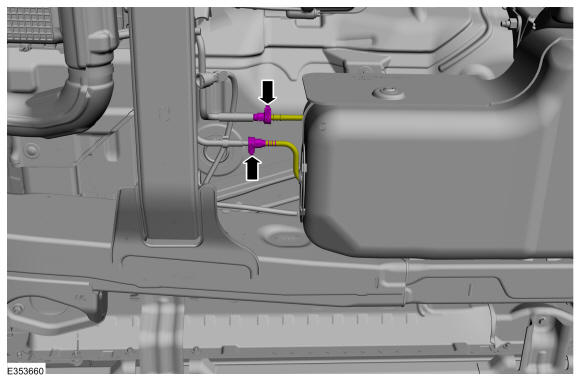

    GFD627150Courtesy of FORD MOTOR COMPANY
  9. Disconnect the electrical connector.

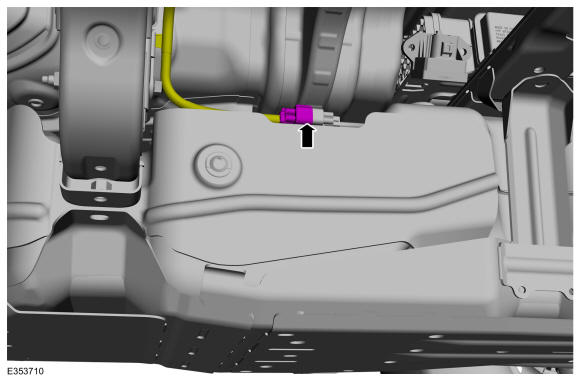

    GFD627151Courtesy of FORD MOTOR COMPANY
  10. Remove the fuel tank.

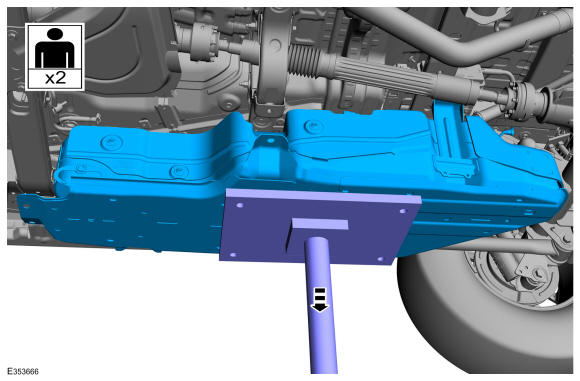

    GFD627152Courtesy of FORD MOTOR COMPANY

    5-Door

    • Support the fuel tank with a transmission jack and remove the bolts.

      Torque

      : 59 lb.ft (80 Nm)

    • NOTE: Make sure that no strain is placed on the fuel lines and wiring harnesses.

      Lower the fuel tank slowly to access the quick connectors and electrical connector.

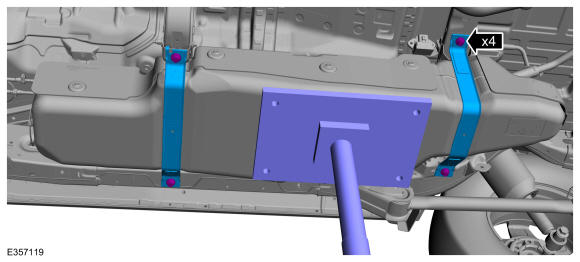

    GFD627153Courtesy of FORD MOTOR COMPANY

    5-Door

  12. Support the fuel tank and skid plate with a transmission jack and remove the bolts.

    Use the General Equipment: Transmission Jack

    Use the General Equipment: Retaining Strap

    Torque

    : 59 lb.ft (80 Nm)

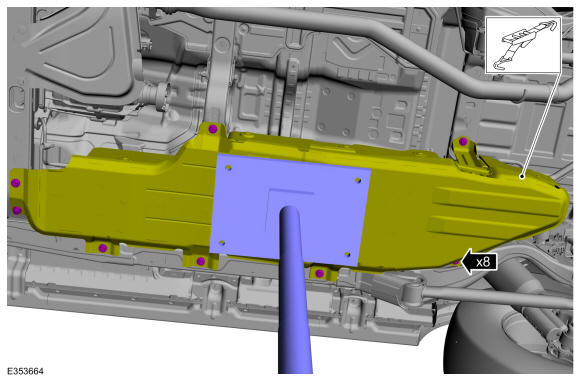

    GFD627154Courtesy of FORD MOTOR COMPANY
  13. NOTE: Make sure that no strain is placed on the fuel lines and wiring harnesses.

    Lower the fuel tank slowly to access the quick connectors and electrical connector.

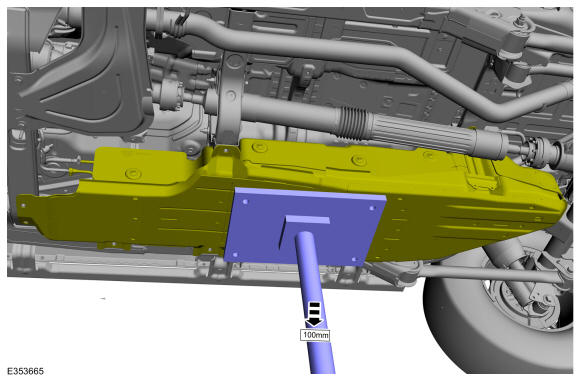

    GFD627155Courtesy of FORD MOTOR COMPANY
  14. Remove the quick release couplings. Refer to: Quick Release Coupling .
    GFD627156Courtesy of FORD MOTOR COMPANY
  15. Disconnect the electrical connector.

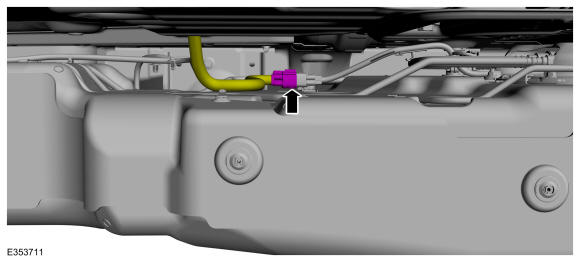

    GFD627157Courtesy of FORD MOTOR COMPANY
  16. Remove the fuel tank.

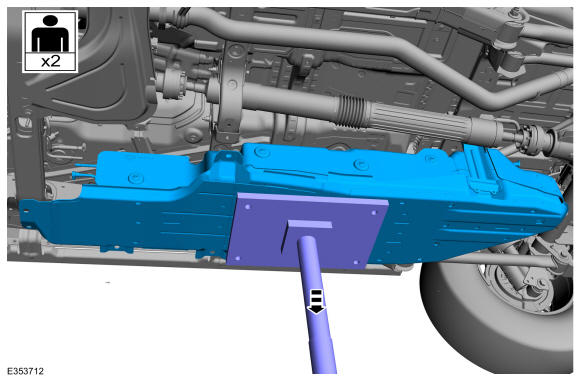

GFD627158Courtesy of FORD MOTOR COMPANY
