Fuel Tank Draining

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	292-00004 Fuel Tanker 100 GPM

Draining

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

   Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
4. Disconnect the battery. Refer to: Battery Disconnect and Connect .

5. Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

   NOTE: Only use the specified general equipment.
   NOTE: Be prepared to collect escaping fluid

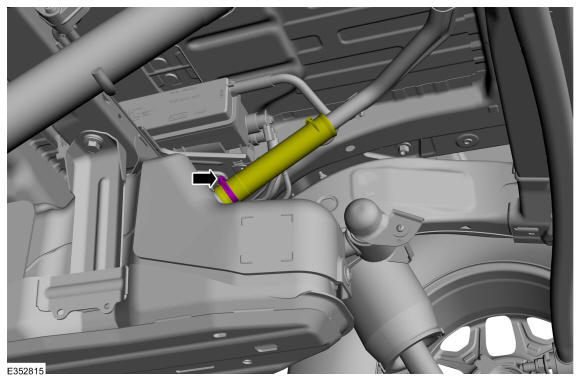

   Loosen the clamp and disconnect the hose.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Make sure the open end of the hose is secured above the fluid level in the reservoir
   NOTE: Use suitable paper absorb any escaping fluid

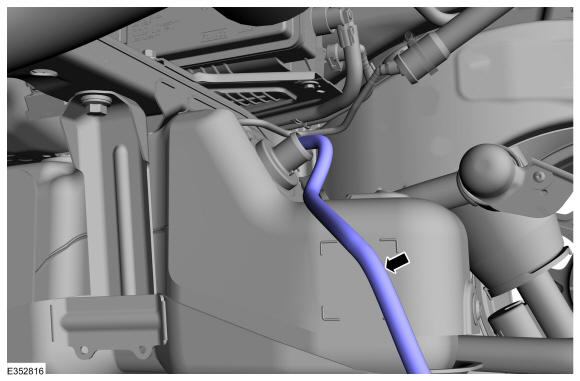

   Insert the hose from the fuel storage tanker and siphon the fuel through the hose. Use Special Service Tool: 292-00004Fuel Tanker 100 GPM.

Courtesy of FORD MOTOR COMPANY
