Fuel Tank Filler Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Drain the fuel tank. Refer to: Fuel Tank Draining .

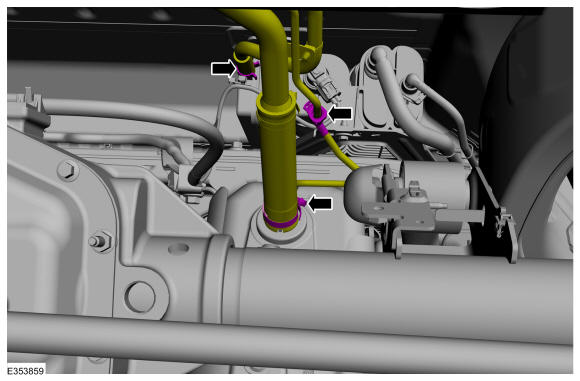

1. Release the clamp and position the fuel filler pipe aside.
  Torque

  : 35 lb.in (4 Nm)
2. Detach the clip and disconnect the EVAP canister vent tube.
3. Disconnect the quick release coupling and position aside the hose. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

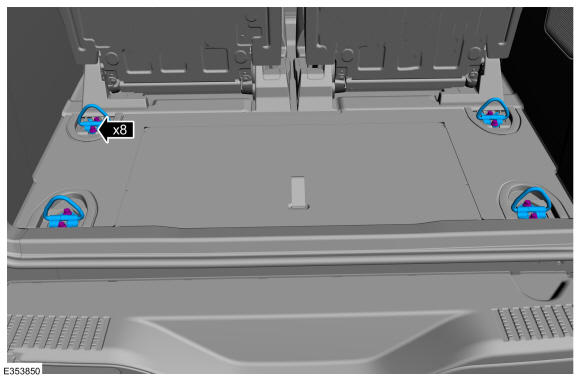

Loosen the bolts and remove the luggage hooks.
Torque

: 21 lb.ft (29 Nm)

Courtesy of FORD MOTOR COMPANY

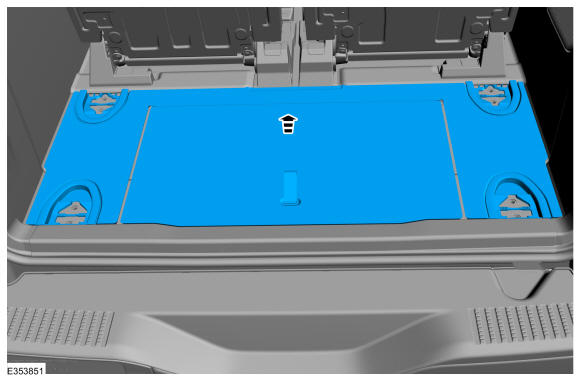

Remove the luggage cover.

Courtesy of FORD MOTOR COMPANY

3-Door

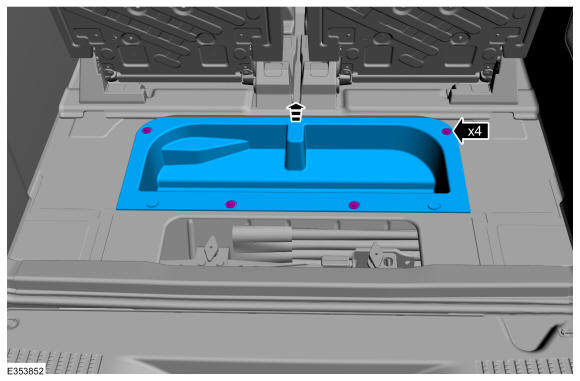

Loosen the bolts and remove the tray.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

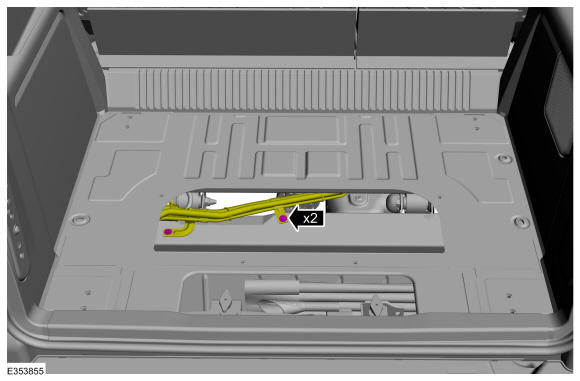

Remove the bolts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

5-Door

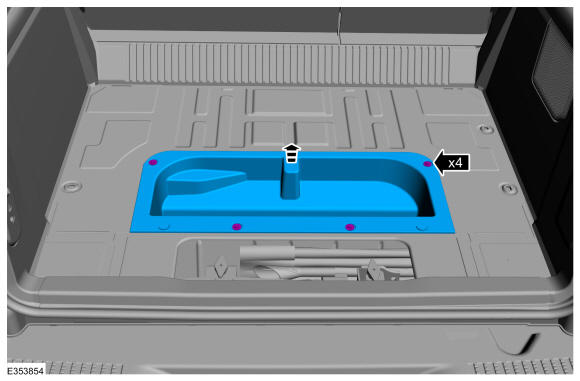

Loosen the bolts and remove the tray.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

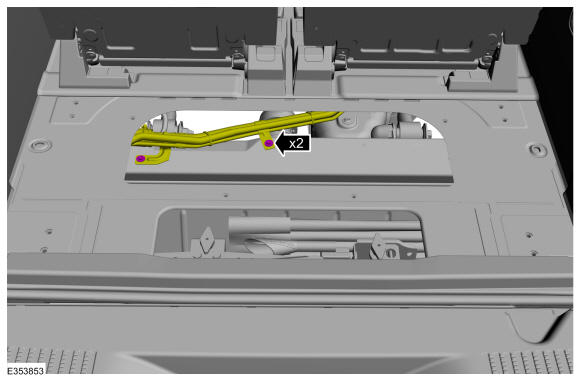

Remove the bolts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
Remove left side rear wheel and tire. Refer to: Wheel and Tire .
1. Remove the screws.
  Torque

  : 18 lb.in (2 Nm)
2. Remove the push pins and the trim panel.
Courtesy of FORD MOTOR COMPANY

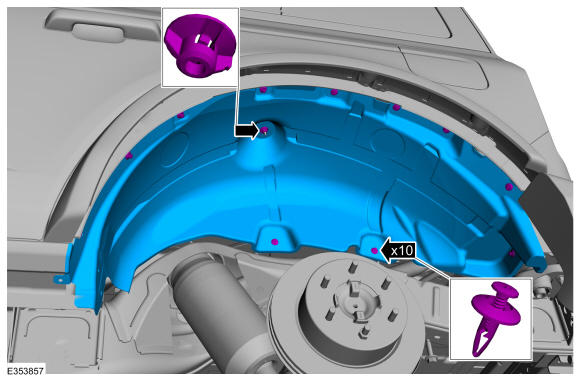

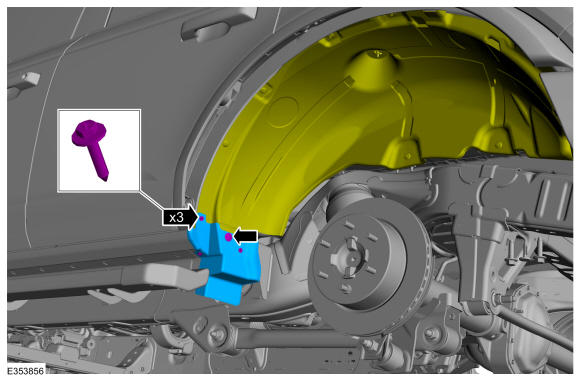

1. Remove the trim pins.
2. Remove the clip and LH wheel arch liner.
Courtesy of FORD MOTOR COMPANY

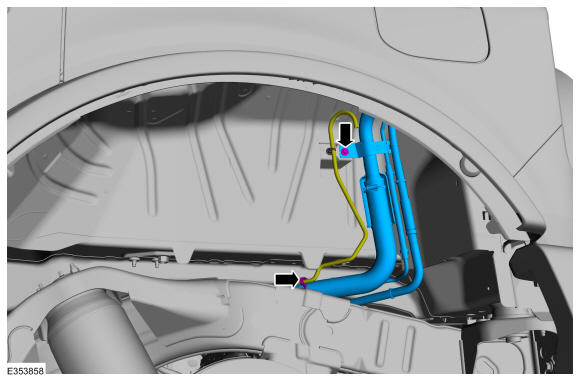

1. Detach the clip and position aside the vent hose.
2. Remove the bolt and fuel tank filler pipe assembly.
  Torque

  : 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
