Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the RH valve cover. Refer to: Valve Cover RH

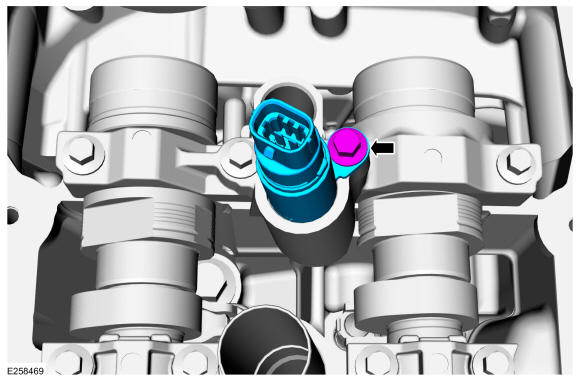

- Remove the bolt and the exhaust VCT oil control solenoid.
Torque: 89 lb.in (10 Nm)

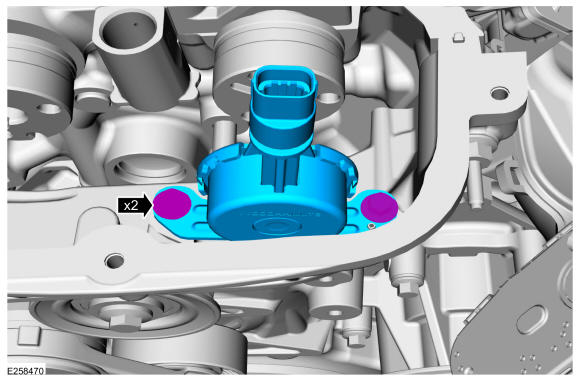

- Remove the bolts and the intake VCT oil control solenoid.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 30 deg.
LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the LH valve cover. Refer to: Valve Cover LH

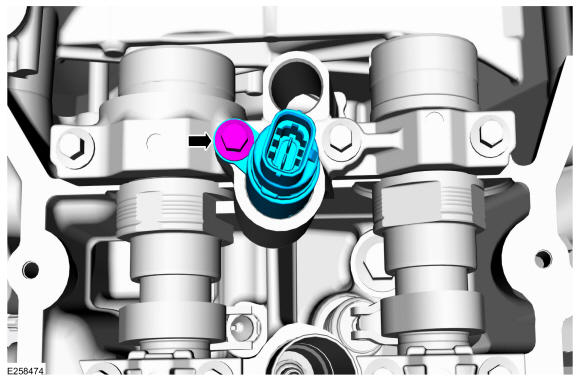

- Remove the bolt and the exhaust VCT oil control solenoid.
Torque: 89 lb.in (10 Nm)

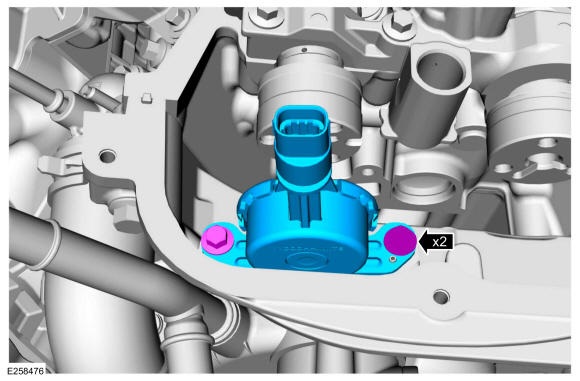

- Remove the bolts and the intake VCT oil control solenoid.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 30 deg.
