Powertrain Control Module (PCM): Removal

WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the PMI routine. Refer to: Module Configuration - System Operation and Component Description

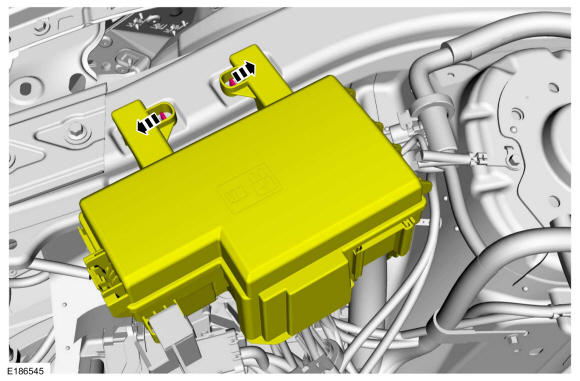

Unclip and position aside the BJB.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the PCM electrical connectors.
2. Remove the retainers and the PCM.

Courtesy of FORD MOTOR COMPANY
