Powertrain Control Module (PCM): Installation
WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
-

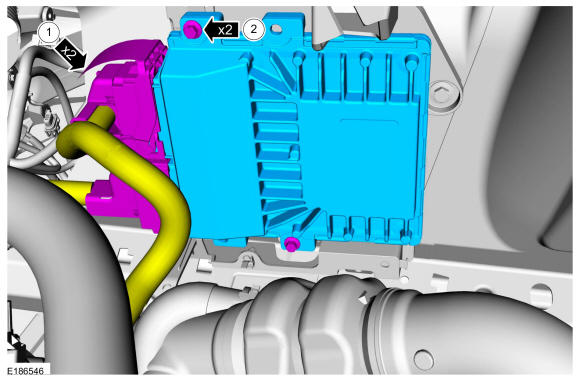

- Connect the PCM electrical connectors.
- Install the PCM and the retainers.
Torque: 80 lb.in (9 Nm)
- Position back the BJB.
-
NOTE: This step is only necessary when installing a new component.
Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description
- Carry out the Parameter Reset procedure. Refer to: ANTI-THEFT KEY PROGRAMMING - SCAN TOOL
- Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
