Oil Pressure Control Solenoid: Removal
WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Removal steps in this procedure may contain installation details.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

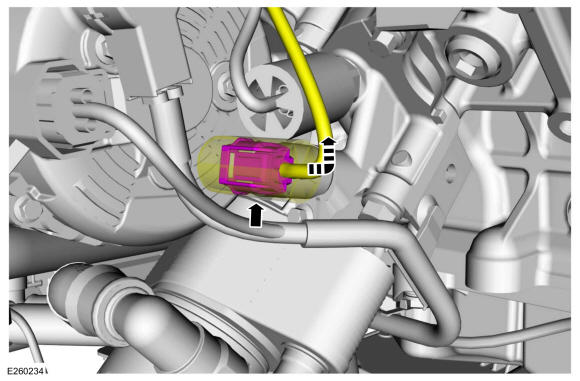

- Position the cover aside and disconnect the oil pressure control solenoid electrical connector.
-
NOTE: Inspect O-ring and lubricate with clean engine oil.

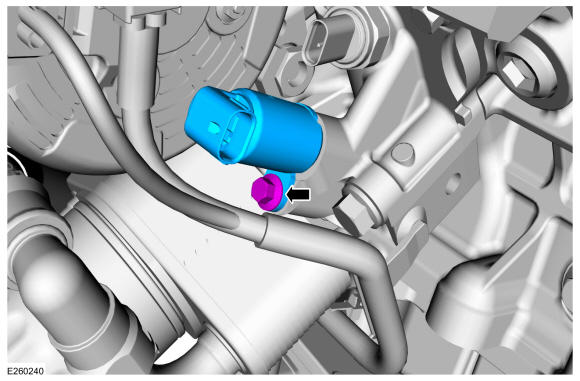

Remove the bolt and the oil pressure control solenoid.
Torque: 97 lb.in (11 Nm)
