Wastegate Control Valve Solenoid: Removal

1. Remove the air cleaner outlet pipe. It is not necessary to remove the lower air cleaner outlet hose elbow from the turbocharger. Refer to Air Cleaner Outlet Pipe .
2. Remove the air cleaner. Refer to Air Cleaner .
3. Disconnect the electrical connector, then detach the wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

4. Disconnect the quick release coupling from the vacuum pump, then detach the hose retainers. Refer to Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

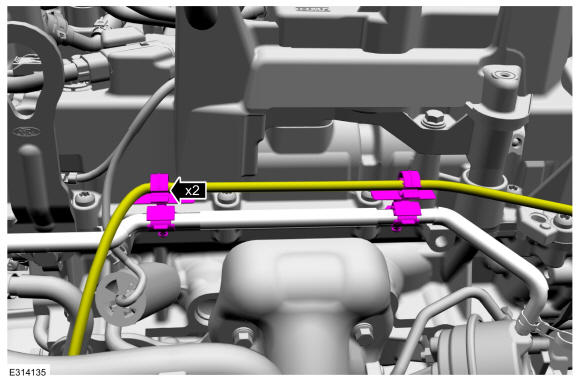

5. Detach the wiring harness from the wire harness retainers.

   Courtesy of FORD MOTOR COMPANY

6. Disconnect the turbocharger control hose, then detach the hose retainers. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

7. Remove the wastegate control valve solenoid retaining nuts, then remove the wastegate control valve solenoid.

Courtesy of FORD MOTOR COMPANY
