Fuel Tank Filler Pipe: Removal
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
-
WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (HYBRID/ENERGI) . Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Drain the fuel tank. Refer to: Fuel Tank Draining .
- Remove the rear wheel on the left-hand side. Refer to: Wheel and Tire
.

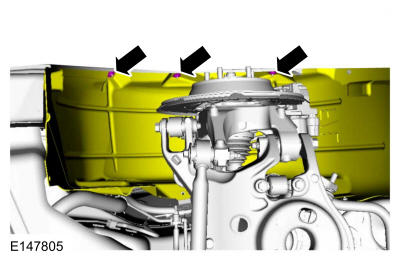

- Torque
: 13 lb.in (1.5 Nm)

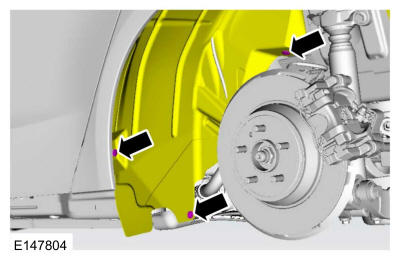

- Torque
: 13 lb.in (1.5 Nm)

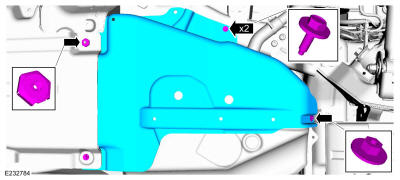

- Refer to: Quick Release Coupling
.

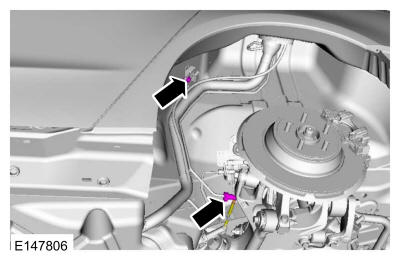

Torque: 80 lb.in (9 Nm)
-

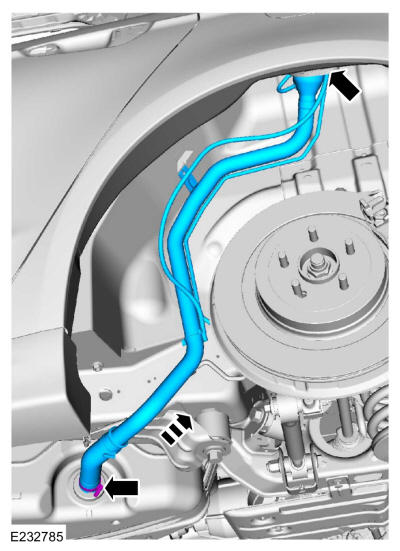

NOTE: Do not remove the hose clamp at the fuel tank filler pipe hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.
Torque: 36 lb.in (4.1 Nm)
