Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component Location
WARNING: This page is about a different variant/trim than selected.

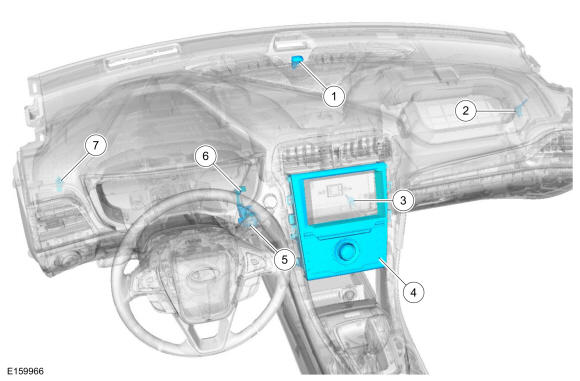

| Item | Description |
|---|---|
| 1 | Sunload Sensor |
| 2 | Passenger Side Register Air Discharge Temperature Sensor |
| 3 | Passenger Side Footwell Air Discharge Temperature Sensor |
| 4 | Heating, Ventilation, and Air Conditioning (HVAC) Module |
| 5 | In-vehicle temperature and humidity Sensor |
| 6 | Driver Side Footwell Air Discharge Temperature Sensor |
| 7 | Driver Side Register Air Discharge Temperature Sensor |

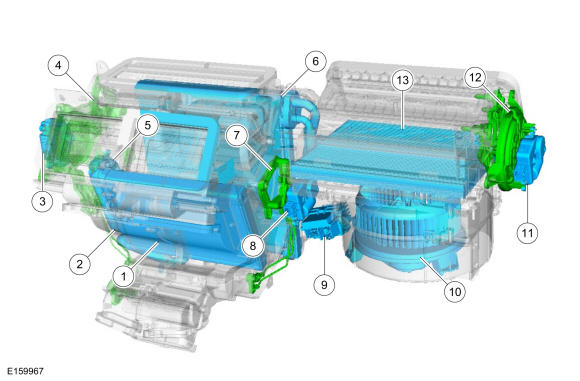

| Item | Description |
|---|---|
| 1 | Heater Core |
| 2 | Evaporator Temperature Sensor |
| 3 | Air Distribution Door Actuator |
| 4 | Air Distribution Door Actuating Assembly |
| 5 | Driver Side Temperature Door Actuator |
| 6 | Evaporator |
| 7 | Passenger Side Temperature Door Actuating Assembly |
| 8 | Passenger Side Temperature Door Actuator |
| 9 | Blower Motor Speed Control |
| 10 | Blower Motor |
| 11 | Air Inlet Door Actuator |
| 12 | Air Inlet Door Actuating Assembly |
| 13 | Cabin Air Filter |

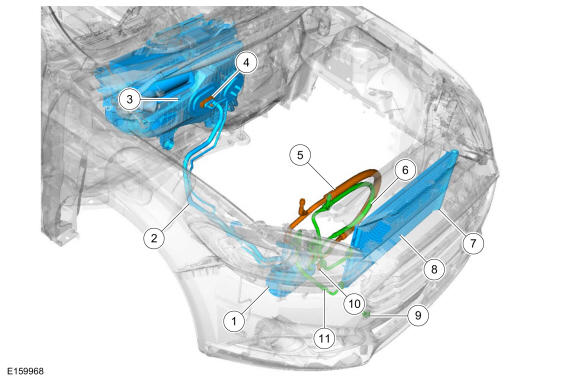

| Item | Description |
|---|---|
| 1 | Air Conditioning (A/C) Compressor |
| 2 | Evaporator Inlet and Outlet Manifold |
| 3 | Climate Control Housing |
| 4 | Thermostatic Expansion Valve |
| 5 | Air Conditioning (A/C) Compressor Inlet Line |
| 6 | Air Conditioning (A/C) Compressor Outlet Line |
| 7 | Receiver Drier Element |
| 8 | Condenser |
| 9 | Ambient Air Temperature Sensor |
| 10 | Air Conditioning (A/C) Pressure Transducer |
| 11 | Condenser Outlet Line |
2.7L EcoBoost

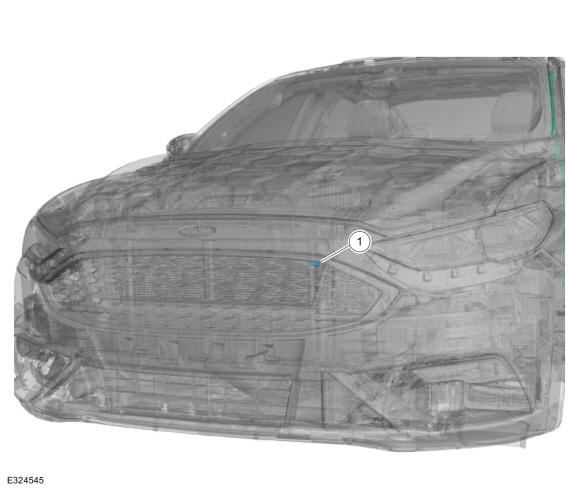

| Item | Description |
|---|---|
| 1 | Ambient Air Temperature Sensor |
Vehicles equipped with Auto Start Stop

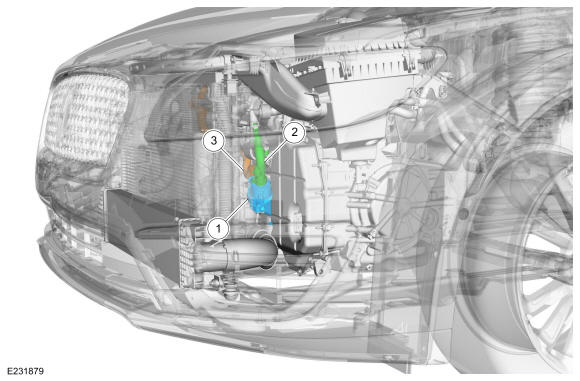

| Item | Description |
|---|---|
| 1 | Cabin Heater Coolant Pump |
| 2 | Cabin Heater Coolant Pump Inlet Hose |
| 3 | Cabin Heater Coolant Pump Outlet Hose |
