Power Transfer Unit Rear Seal: Installation
WARNING: This page is about a different variant/trim than selected.

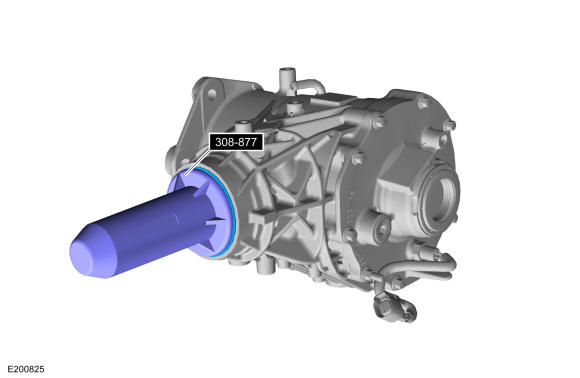

- Using the special tool, install a new rear seal. Use Special Service Tool: 308-877 Installer, Pinion Output Seal.

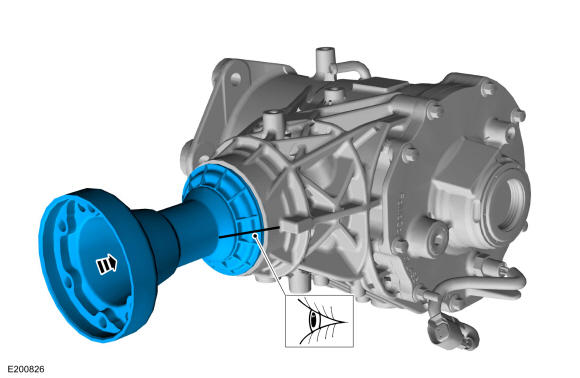

- Align the marks, install the pinion flange.

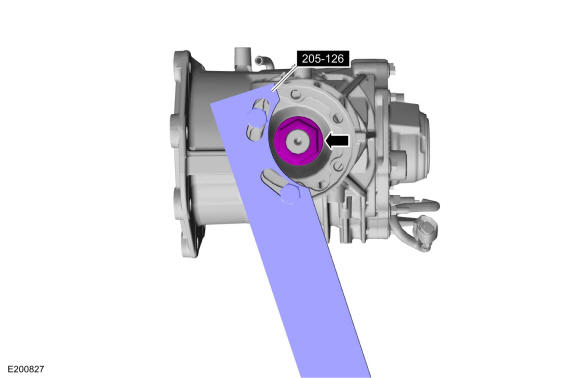

- Using the special tool, install a new pinion flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
Torque: 173 lb.ft (235 Nm)
- Install the PTU/transfer case. Refer to: Power Transfer Unit .
