Power Transfer Unit

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

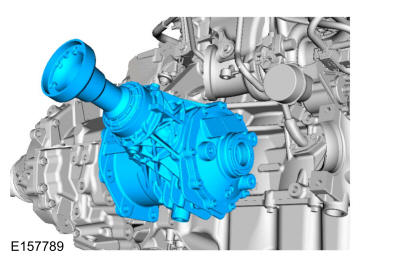

Install the PTU.

Courtesy of FORD MOTOR COMPANY

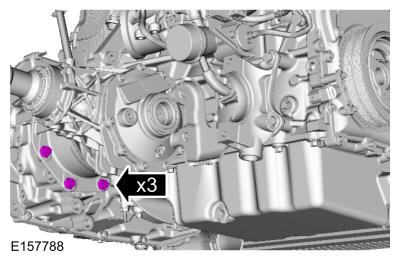

Install the new top PTU bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

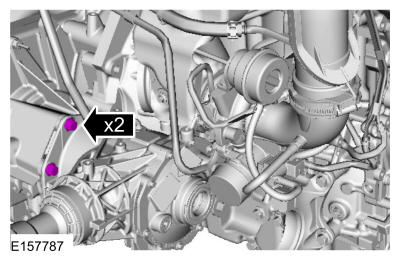

Install the new bottom PTU bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

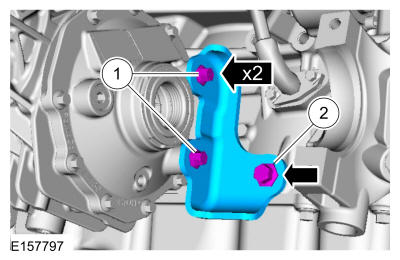

Install the PTU support bracket and the support bracket bolts.
Torque: 1: 18 lb.ft (25 Nm) | 2: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

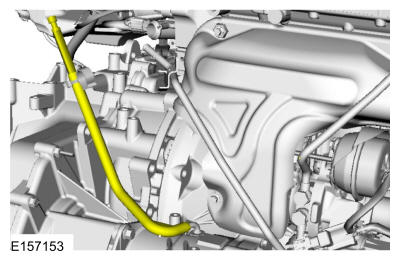

Connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY
Install the front halfshaft RH. Refer to: Front Halfshaft RH .

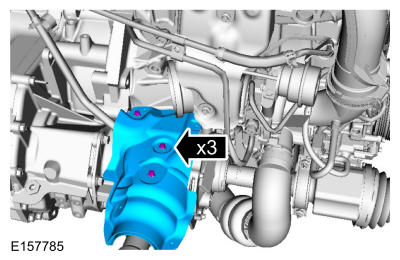

Install the PTU heat shield and heat shield bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the catalytic converter.
- Install the CAC inlet tube and the clamps and retainers.
- Install the CAC outlet tube and clamp.
Courtesy of FORD MOTOR COMPANY
Remove the PTU filler plug.

Courtesy of FORD MOTOR COMPANY
Fill the PTU with clean fluid, level with the fill plug opening.

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
Install the rear driveshaft. Refer to: Rear Driveshaft .
If equipped. Install the underbody shield.
