Fuel Vaporizer System Fuel Pump: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not use silicone based sprays or lubricants on any components installed onto or around the diesel exhaust system or intake air distribution and filtering system. Silicone reacts with the Nitrogen Oxides (NOx) sensors and may cause permanent damage to the NOx sensors.

NOTE: Removal steps in this procedure may contain installation details.

Position vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

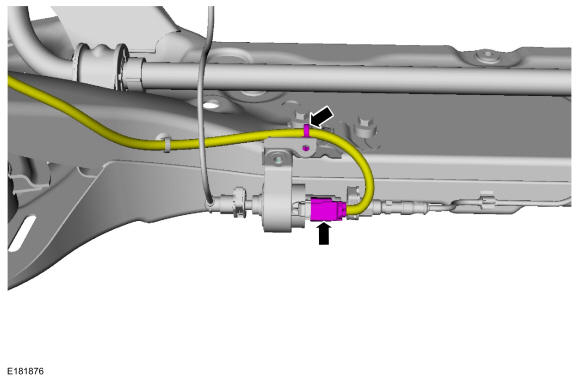

Disconnect the fuel vaporizer system fuel pump electrical connector and wire retainer.

Courtesy of FORD MOTOR COMPANY

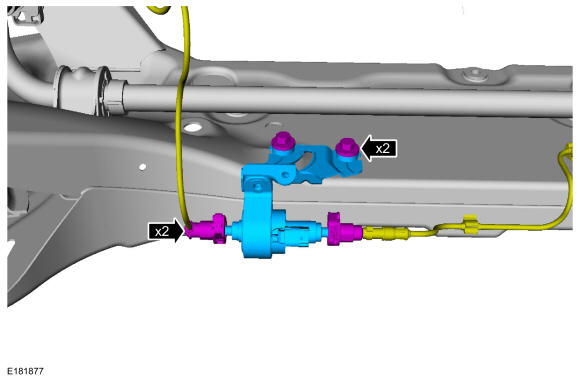

- Disconnect the fuel vaporizer system fuel pump quick release couplings from the fuel vaporizer system pump. Remove the bracket bolts and the fuel vaporizer system fuel pump. Refer to: Quick Release Coupling .
- Torque
  : 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
