Fuel Tank: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation steps.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the fuel tank. Refer to: Fuel Tank Draining .

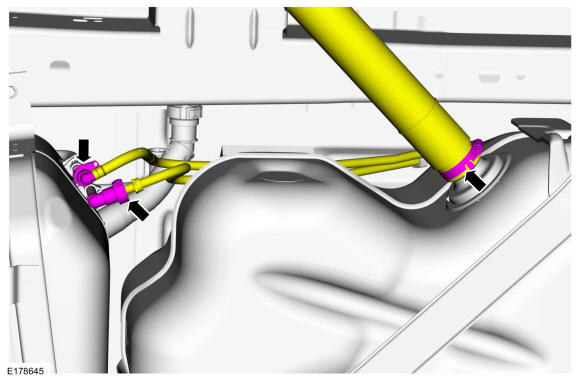

- Loosen the fuel filler neck hose clamp and remove the hose from the fuel tank.
- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

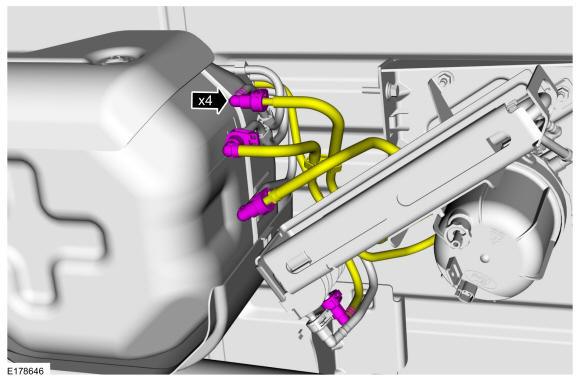

Disconnect the quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

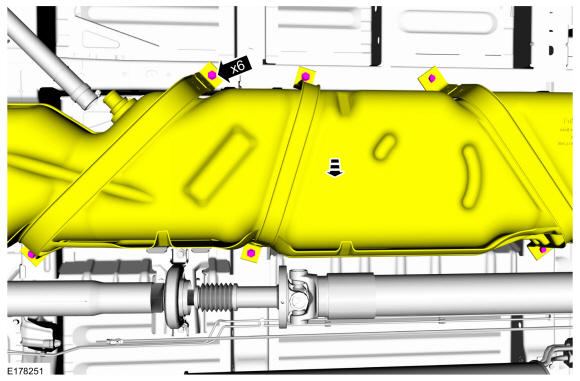

- Support the fuel tank with a powertrain jack and remove the fuel tank strap bolts. Use the General Equipment: Powertrain Jack
- Lower the fuel tank.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

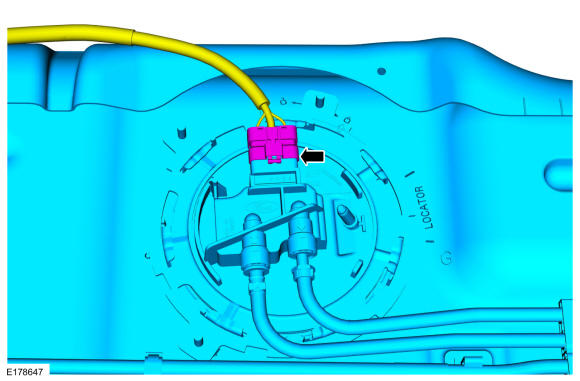

- Disconnect the fuel pump and sender unit electrical connector.
- Remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
