Fuel Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the fuel filter. Refer to: Fuel Filter .
-

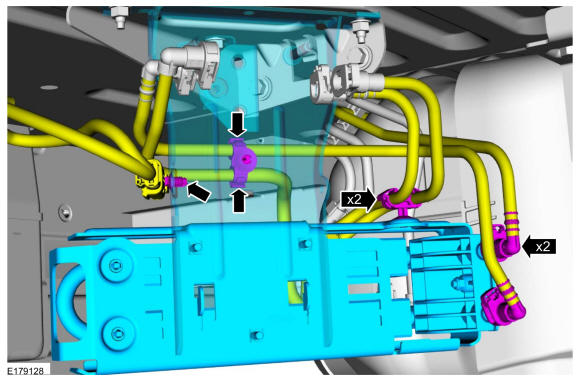

- Disconnect the fuel filter harness retainer.
- Disconnect the fuel cooler quick connect couplings. Refer to: Quick Release Coupling .
- Unclip the fuel filter line retainers.
-

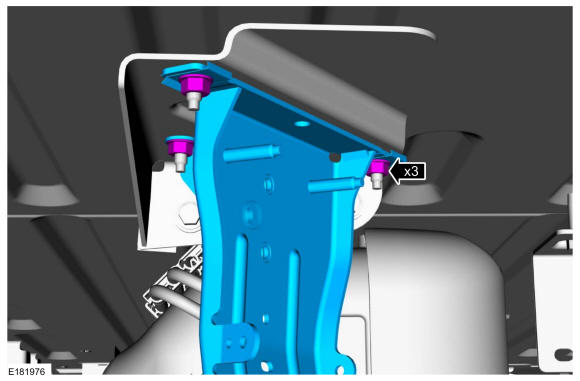

- Remove the fuel cooler bracket nuts.
Torque: 22 lb.ft (30 Nm)
- Remove the fuel cooler bracket nuts.
