Fuel Metering Valve: Installation
WARNING: This page is about a different variant/trim than selected.

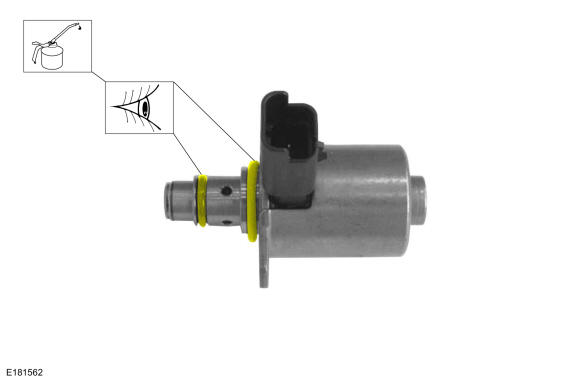

- Inspect the fuel injection pump fuel metering valve O-ring seals. Replace the fuel injection pump fuel metering valve O-ring seals as necessary. Lubricate the fuel injection pump fuel metering valve O-ring seals with clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

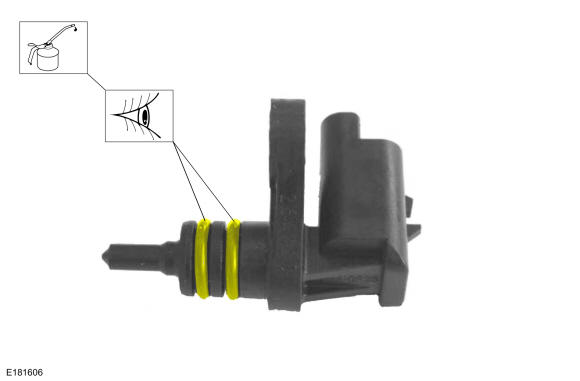

- Inspect the fuel injection pump temperature sensor O-ring seals. Replace the fuel injection pump temperature sensor O-ring seals as necessary. Lubricate the fuel injection pump temperature sensor O-ring seals with clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)
-

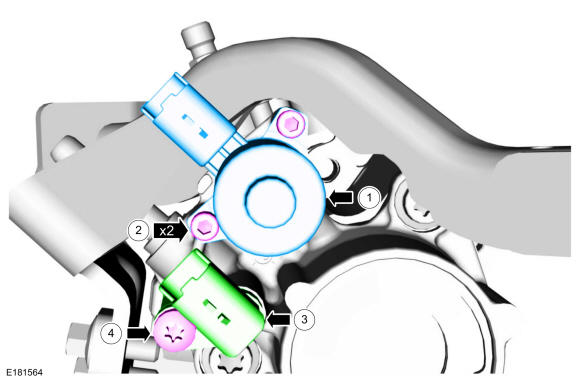

- Install the fuel injection pump fuel metering valve.
- Install the fuel injection pump fuel metering valve bolts.
Torque: 53 lb.in (6 Nm)
- Install the fuel injection pump temperature sensor.
- Install the fuel injection pump temperature sensor mounting bolt.
Torque: 71 lb.in (8 Nm)
- Connect the fuel injection pump temperature sensor and the fuel injection pump fuel metering valve electrical connectors.
- Install the throttle body. Refer to: Throttle Body .
- Connect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- Bleed the Fuel System. Refer to: Fuel System Bleeding .
