Section 14 (Engine - 3.2L DURATORQ-TDCI (148KW/200PS) - Puma): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Strap Wrench
Floor Crane
Adjustable Mounting Arm
Oil Drain Equipment
Vehicle/Axle Stands
Hose Clamp Remover/Installer

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
3. Remove the following items:
   1. Remove the accessory drive belt. Refer to: Accessory Drive Belt .
   2. Remove the cooling module. Refer to: Cooling Module .
   3. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

4. • Remove the oil drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
   • Install the drain plug.

     Torque: 29 lb.ft (39 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment

   Courtesy of FORD MOTOR COMPANY

6. Loosen the clamp and remove the turbocharger CAC pipe.

   Courtesy of FORD MOTOR COMPANY

7. Disconnect and position aside the hose from the ACL (air cleaner) housing.

   Courtesy of FORD MOTOR COMPANY

8. Remove the fuel vaporizer system glow plug. Refer to: Fuel Vaporizer System Glow Plug .

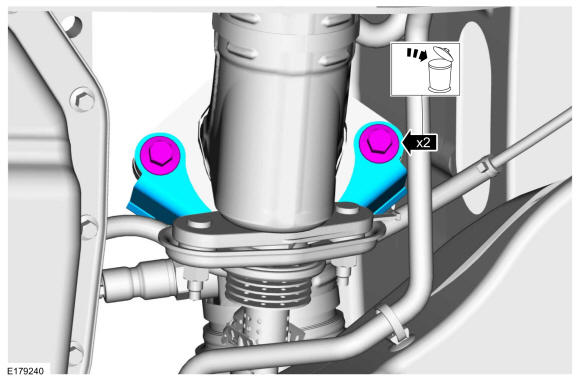

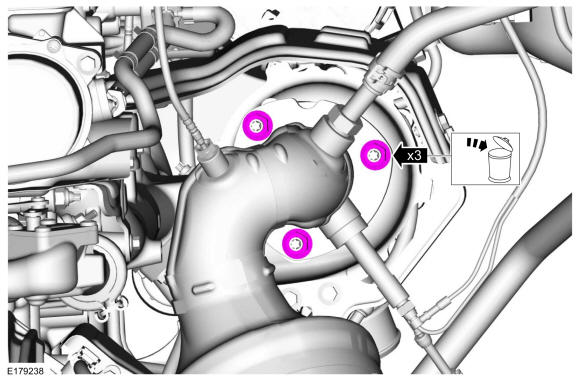

9. Remove and discard the catalytic converter nuts.

   Courtesy of FORD MOTOR COMPANY

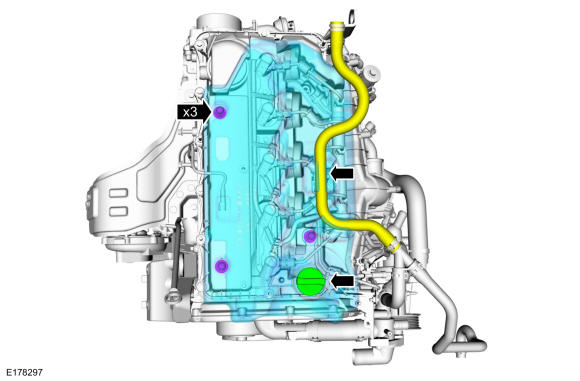

10. Position the hose aside, remove the oil filler cap and remove the engine appearance cover.

    Courtesy of FORD MOTOR COMPANY

11. Disconnect and position aside the electrical connector.

    Courtesy of FORD MOTOR COMPANY

12. Disconnect the ECT sensor electrical connector and hose retainer. Remove the nut and position aside the engine wire harness.

    Courtesy of FORD MOTOR COMPANY

13. Disconnect the coolant hoses from the thermostat assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

14. Disconnect the coolant hose. Remove the bolt and the thermostat assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

15. Disconnect the fuel tubes. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

16. Remove the degas bottle. Refer to: Degas Bottle .
17. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

18. Disconnect and remove the coolant hoses. Remove the cable cover.

    Courtesy of FORD MOTOR COMPANY

19. Remove the nut and disconnect the wire retainer, position aside the cable.

    Courtesy of FORD MOTOR COMPANY

20. Disconnect the wire harness retainer from the BJB bracket.

    Courtesy of FORD MOTOR COMPANY

21. Disconnect the electrical connector. Remove the bolt and position aside the BJB.

    Courtesy of FORD MOTOR COMPANY

22. Remove the bolts for the A/C tubes.

    Courtesy of FORD MOTOR COMPANY

23. Disconnect the wire harness retainer and remove the bolt.

    Courtesy of FORD MOTOR COMPANY

24. Disconnect the wire harness retainers. Remove the bolts and the BJB bracket.

    Courtesy of FORD MOTOR COMPANY

25. Disconnect the retainer and position aside the engine wire harness.

    Courtesy of FORD MOTOR COMPANY

26. Disconnect the coolant connector. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

27. Disconnect the heater hose at the intake. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

28. Disconnect the brake booster hose.

    Courtesy of FORD MOTOR COMPANY

29. Disconnect the tube retainers and position aside the transmission vent tube.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: The catalytic converter bolts are 2 different sizes. Note the position for installation.

    Remove the bolts and the catalytic converter bracket.

    Courtesy of FORD MOTOR COMPANY

31. Remove the bolts, exhaust shield and the gasket. Discard the gasket and bolts.

    Courtesy of FORD MOTOR COMPANY

32. Position aside the catalytic converter. Remove and discard the turbocharger gasket.

    Courtesy of FORD MOTOR COMPANY

33. Remove the bolt and position the bracket aside.

    Courtesy of FORD MOTOR COMPANY

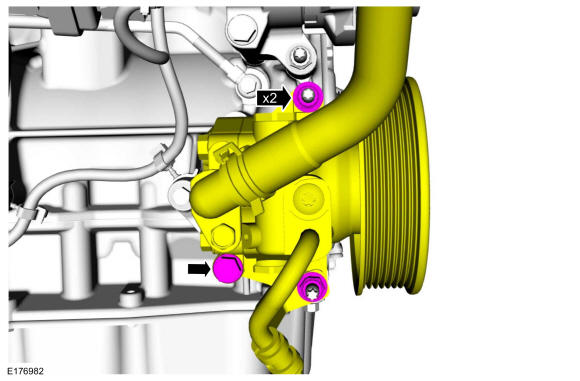

34. Remove nuts and bolts, position aside the power steering pump.

    Courtesy of FORD MOTOR COMPANY

35. Remove the bolt and disconnect the transmission cooler tubes.

    Courtesy of FORD MOTOR COMPANY

36. Remove the nut and position aside transmission cooler tube bracket.

    Courtesy of FORD MOTOR COMPANY

37. Remove the bolts and the transmission cooler tubes.

    Courtesy of FORD MOTOR COMPANY

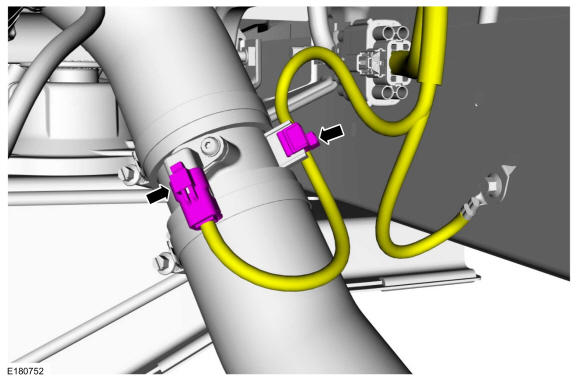

38. Disconnect the CAC temperature sensor electrical connector and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

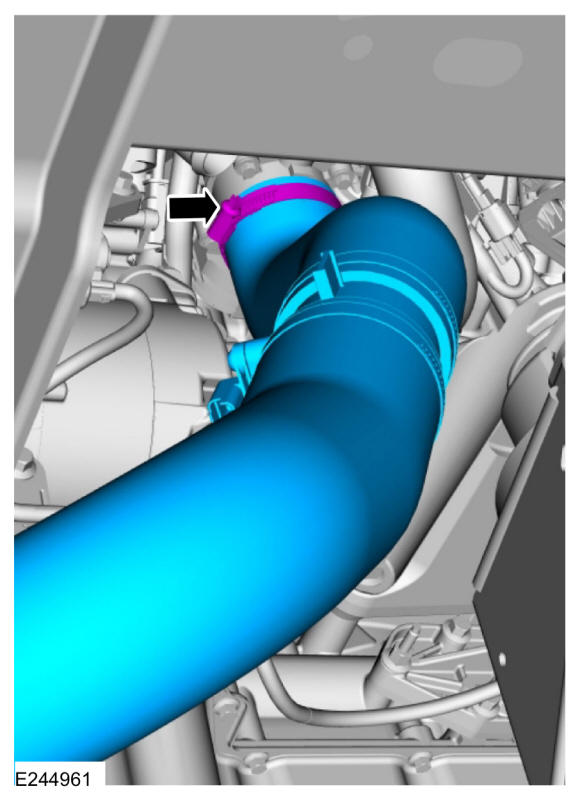

39. Loosen the clamp and remove the CAC pipe.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: Make sure that all openings are sealed.

    Remove the nut and disconnect the A/C tube.

    Courtesy of FORD MOTOR COMPANY

41. NOTE: Make sure that all openings are sealed.

    If equipped with rear A/C, remove the nut and disconnect the A/C tube.

    Courtesy of FORD MOTOR COMPANY

42. Disconnect the A/C electrical connector and wire retainer.

    Courtesy of FORD MOTOR COMPANY

43. Remove the bolts and the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

44. Remove the starter. Refer to: Starter Motor .
45. Disconnect the transmission wire retainers.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Body removed for clarity.

    Disconnect the electrical connectors and wire retainers.

    Courtesy of FORD MOTOR COMPANY

47. If equipped with rear heat, disconnect the coolant hoses.

    Courtesy of FORD MOTOR COMPANY

48. Remove bolts and the torque converter cover.

    Courtesy of FORD MOTOR COMPANY

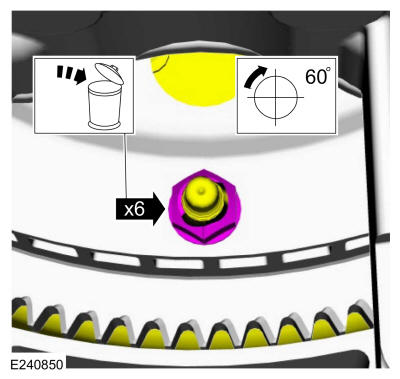

49. NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.
    NOTE: Using a strap wrench, rotate the engine clockwise.

    Remove and discard the torque converter nuts. Use the General Equipment: Strap Wrench

    Courtesy of FORD MOTOR COMPANY

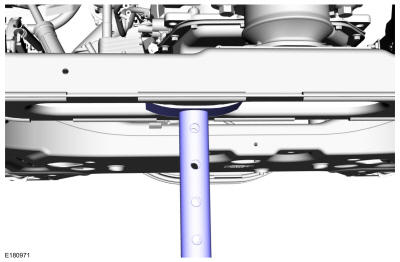

50. Position a stand under the transmission crossmember. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

51. • Remove the bolts and the front subframe braces for the transmission crossmember.
    • Lower the transmission crossmember 25 mm (1 inch).

    Courtesy of FORD MOTOR COMPANY

52. Remove the upper engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

53. • Raise the transmission crossmember.
    • Install the front subframe braces and bolts for the transmission crossmember.

    Courtesy of FORD MOTOR COMPANY

54. Remove the stand from the transmission crossmember.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Engine removed for clarity.

    Support the transmission.

    • Position a 2x4 wooden board on the front subframe.
    • Secure the wooden board in place with a ratchet strap.
    • Position an additional wooden board between the transmission and the wooden board.

    Courtesy of FORD MOTOR COMPANY

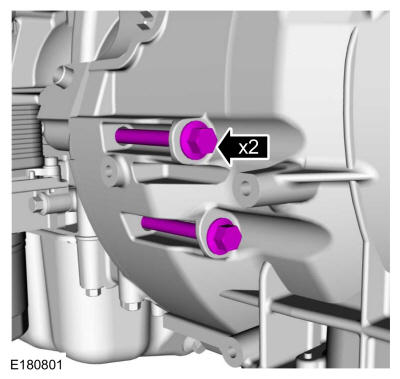

56. Remove the RH upper engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

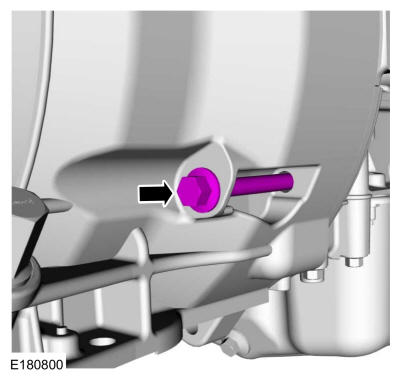

57. Remove the RH lower engine-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

58. Remove the LH engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

59. • Position the powertrain lift table under the engine crossmember and install an adjustable mounting arm to the LH side of the cross member. Use the General Equipment: Adjustable Mounting Arm
    • Install an adjustable mounting arm to the left front corner of the engine. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

60. Install an adjustable mounting arm to the RH side of the cross member. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

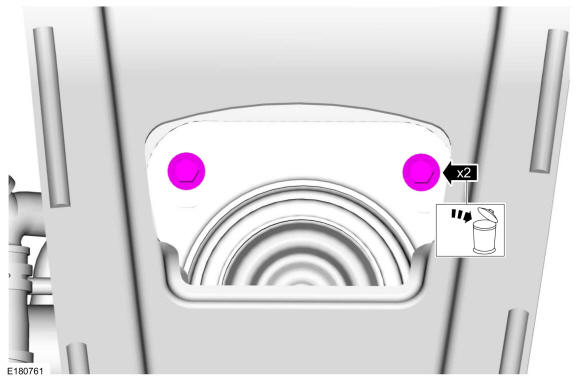

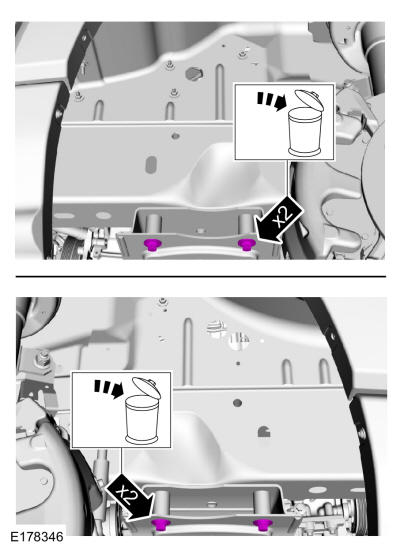

61. Remove and discard the engine crossmember bolts from both sides.

    Courtesy of FORD MOTOR COMPANY

62. Remove and discard the engine mount bolts from both sides.

    Courtesy of FORD MOTOR COMPANY

63. Remove the engine crossmember brackets from both sides.

    Courtesy of FORD MOTOR COMPANY

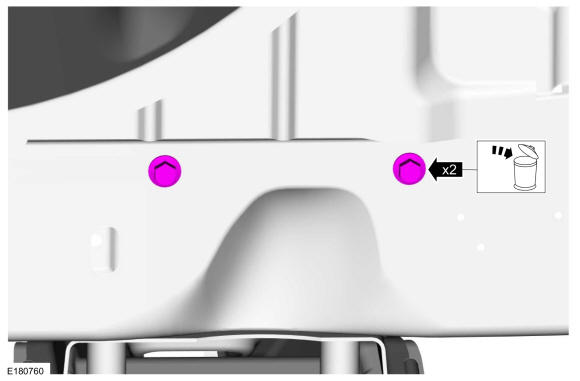

64. Remove and discard the engine crossmember bolts.

    Courtesy of FORD MOTOR COMPANY

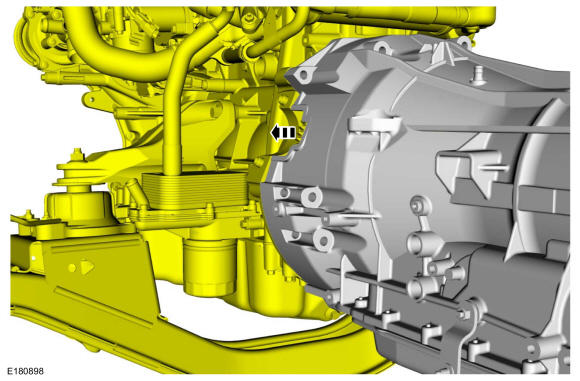

65. Separate the engine and crossmember assembly from the transmission.

    Courtesy of FORD MOTOR COMPANY

66. Slide the engine forward and install the special tool. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    Courtesy of FORD MOTOR COMPANY

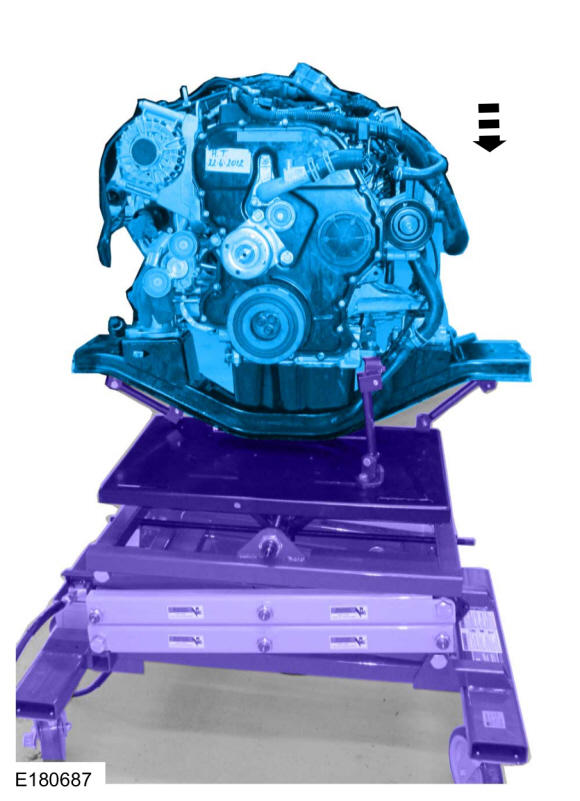

67. Using the powertrain lift table, lower the engine from the vehicle.

    Courtesy of FORD MOTOR COMPANY

68. Install the floor crane. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

69. Remove the nut from the adjustable mounting arm.

    Courtesy of FORD MOTOR COMPANY

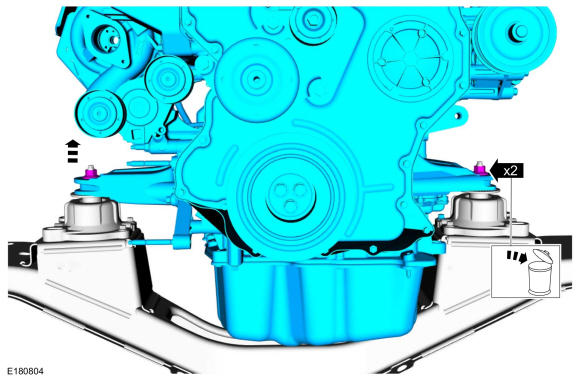

70. • Remove and discard the engine mount nuts.
    • Using the floor crane, lift the engine from the engine crossmember.

    Courtesy of FORD MOTOR COMPANY

71. NOTE: Failure to inspect the components for debris may result in repeat failures.
    NOTE: It may be necessary to use a borescope to inspect the components.

    When an engine or turbocharger is replaced due to a failure, inspect the following components for potential metal debris. If evidence of debris is found, clean or replace the components as needed.

    • CAC and the CAC tubes
    • Intake air system
    • Exhaust manifolds
    • EGR cooler and pipes
    • Diesel Oxidation Catalyst (DOC)
    • Turbocharger (on engine failure only)
