Sliding Door Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

1. Align the front door. Refer to: Front Door Alignment .

Check

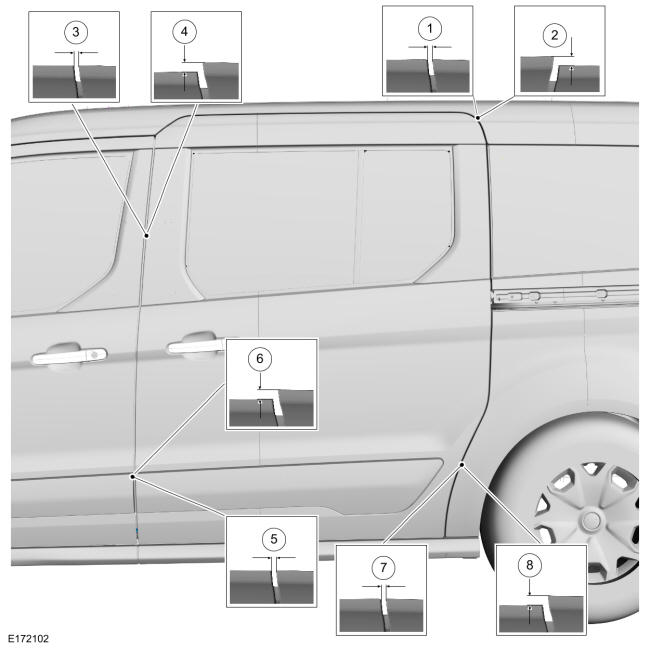

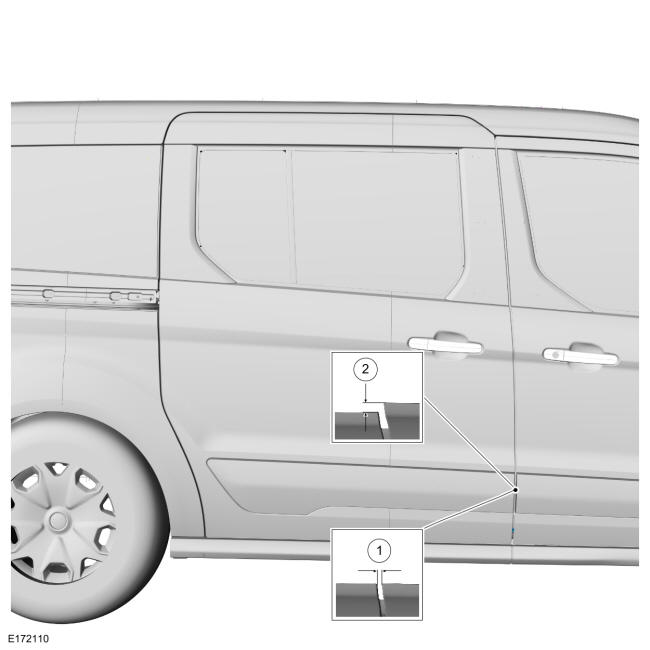

1. Check body to the sliding door dimensions.
   1. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   2. Dimension: 0.0394 ±0.0591 in (1 ±1.5 mm)
   3. Dimension: 0.1890 ±0.0591 in (4.8 ±1.5 mm)
   4. Dimension: 0.0000 ±0.0669 in (±1.7 mm)
   5. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   6. Dimension: 0.0000 ±0.0591 in (±1.5 mm)
   7. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   8. Dimension: 0.0079 ±0.0472 in (.2 ±1.2 mm)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: The following steps are only necessary if adjustment is required.

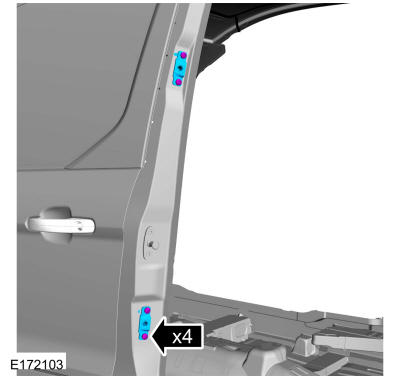

3. Remove the retainers and the striker assembly.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Take extra care not to damage the edges of the component.

   Carefully open and close the sliding door.

Check

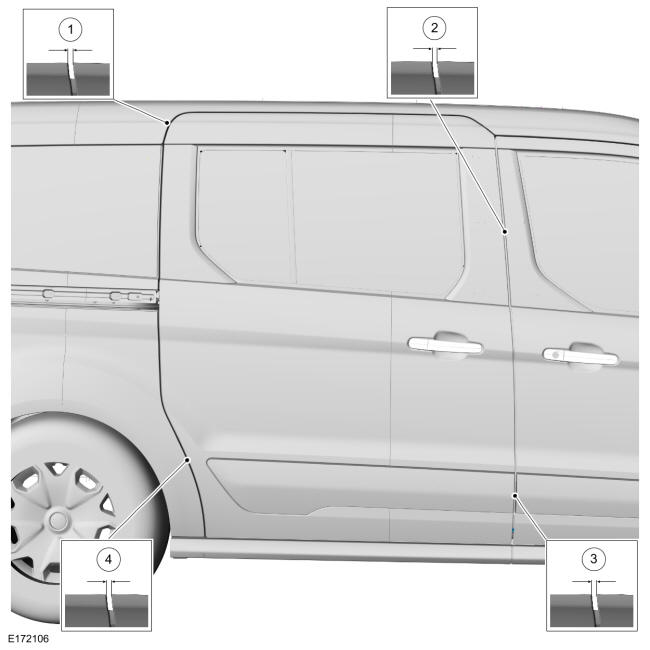

1. Check body to the sliding door dimensions.
   1. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   2. Dimension: 0.1890 ±0.0591 in (4.8 ±1.5 mm)
   3. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   4. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

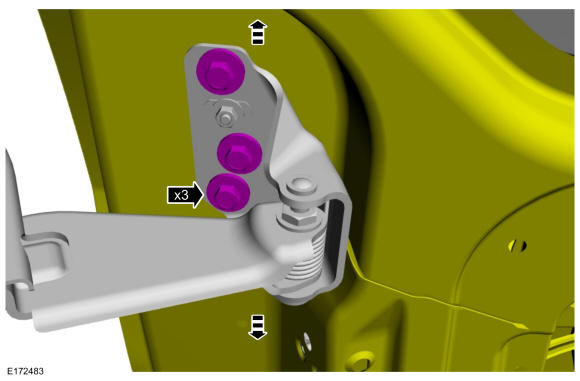

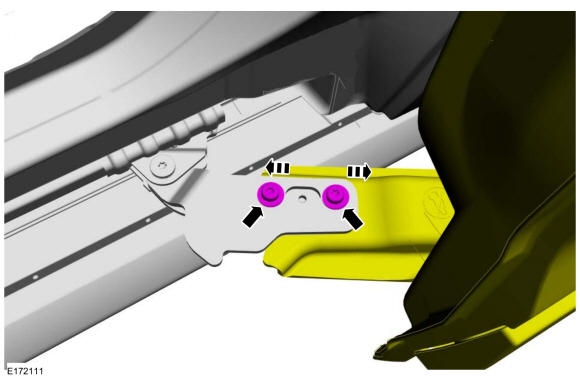

1. Loosen the bolts enough to permit movement of the sliding door.

   Torque: 18 lb.ft (25 Nm)

2. After operation check the alignment and correct if necessary.

Courtesy of FORD MOTOR COMPANY

Check

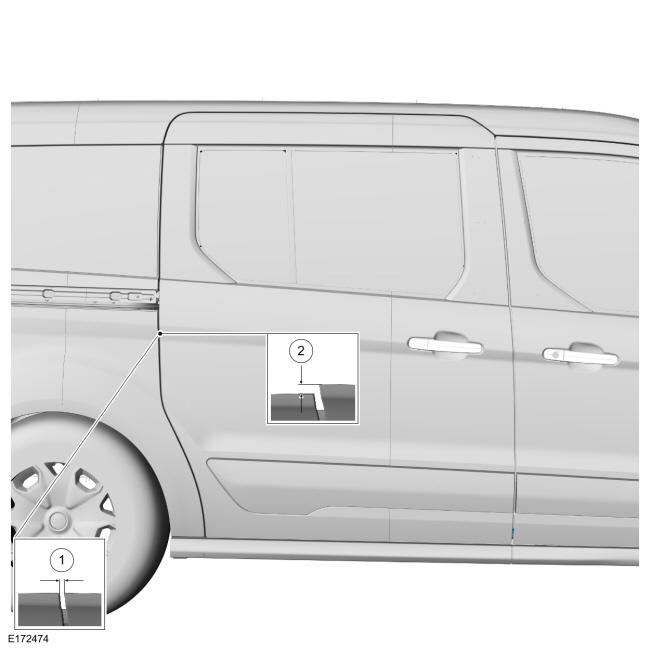

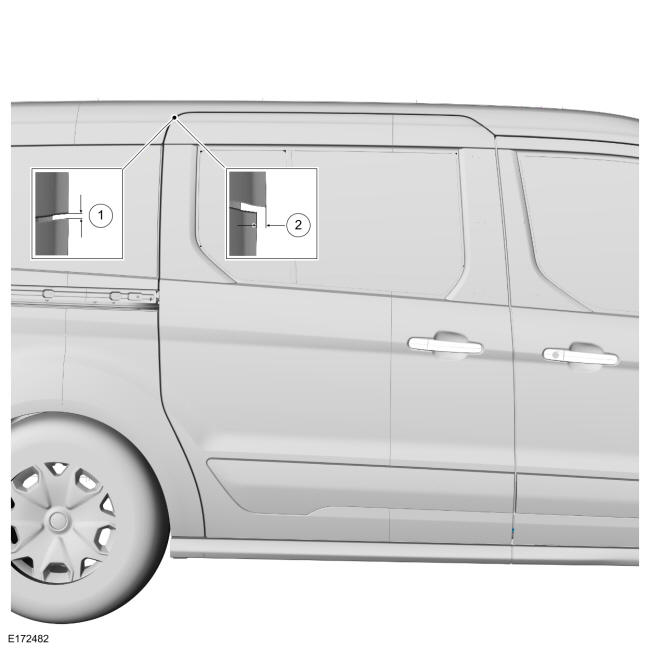

1. Check body to the sliding door dimensions.
   1. Dimension: 0.1575 ±0.0591 in (4 ±1.5 mm)
   2. Dimension: 0.0276 ±0.0394 in (.7 ±1 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

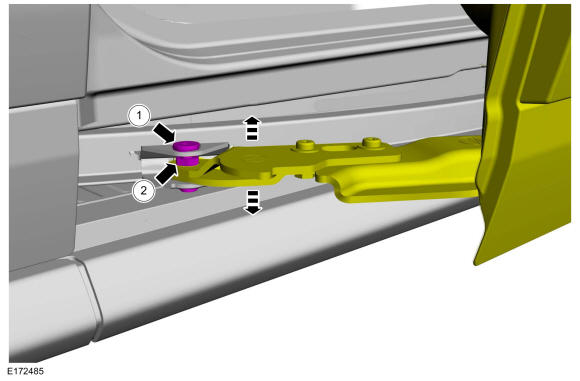

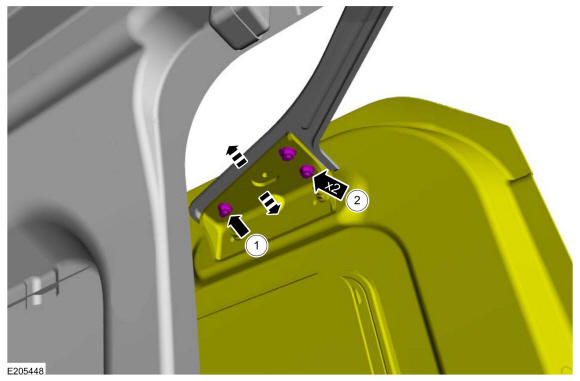

1. Fully open the sliding door. Loosen the nuts enough to permit movement of the sliding door.

   Torque: 1.: 177 lb.in (20 Nm) 2.: 18 lb.ft (25 Nm)

2. After operation check the alignment and correct if necessary.

Courtesy of FORD MOTOR COMPANY

Check

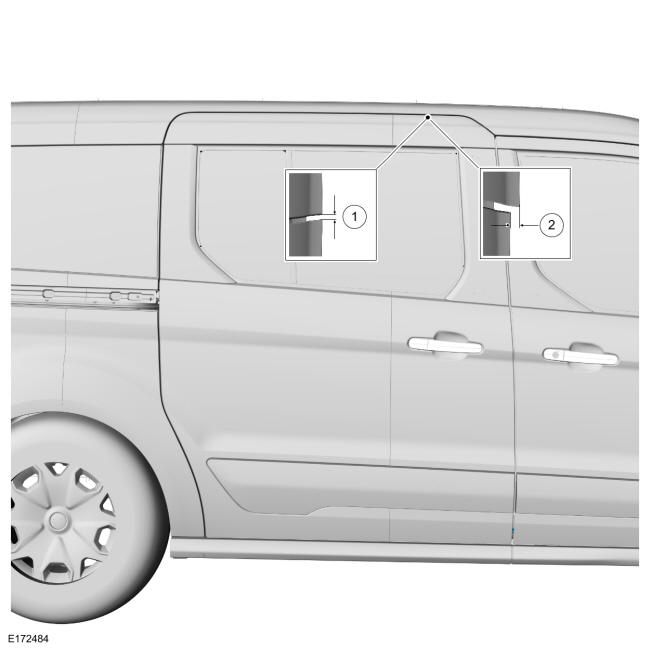

1. Check body to the sliding door dimensions.
   1. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   2. Dimension: 0.0000 ±0.0591 in (±1.5 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

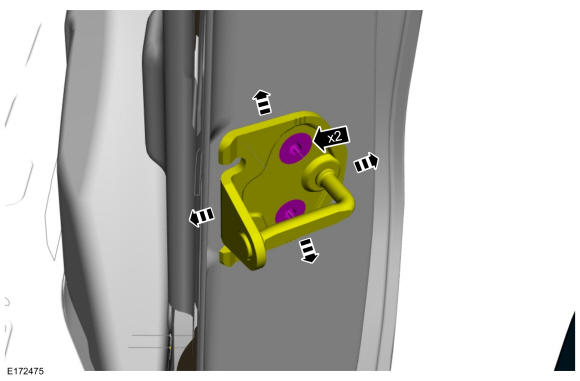

1. Loosen the retainers enough to permit movement of the striker assembly. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

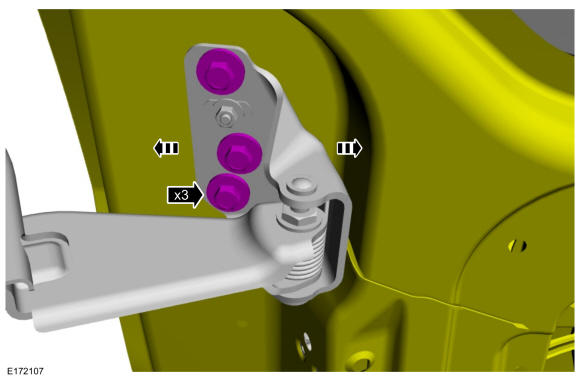

2. Loosen the bolts enough to permit movement of the sliding door.

   Torque: 18 lb.ft (25 Nm)

3. After operation check the alignment and correct if necessary.

   Courtesy of FORD MOTOR COMPANY

4. Loosen the bolts enough to permit movement of the striker assembly.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Check

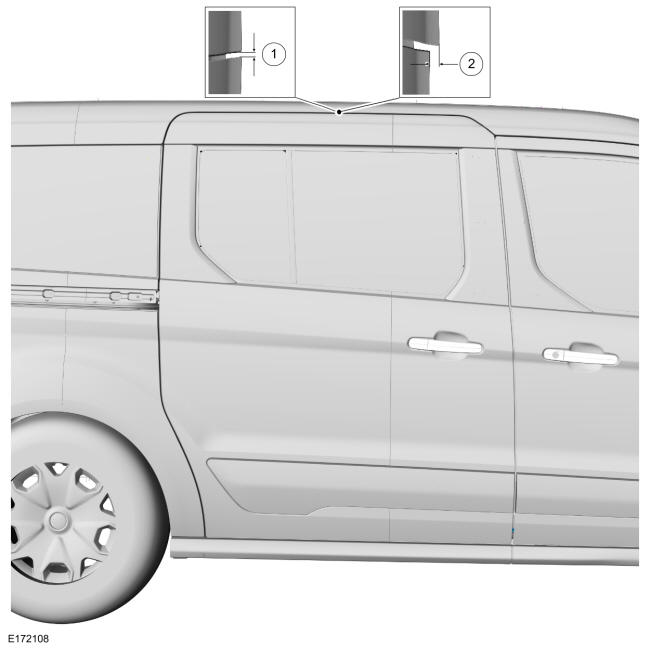

1. Check body to the sliding door dimensions.
   1. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   2. Dimension: 0.0157 ±0.0472 in (.4 ±1.2 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. Loosen the bolts enough to permit movement of the striker assembly.

   Torque: 177 lb.in (20 Nm)

2. After operation check the alignment and correct if necessary.

Courtesy of FORD MOTOR COMPANY

Check

1. Check body to the sliding door dimensions.
   1. Dimension: 0.1969 ±0.0591 in (5 ±1.5 mm)
   2. Dimension: 0.0315 ±0.0394 in (.8 ±1 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. Loosen the bolts enough to permit movement of the sliding door.

   Torque: 18 lb.ft (25 Nm)

2. After operation check the alignment and correct if necessary.

   Courtesy of FORD MOTOR COMPANY

3. Loosen the bolts enough to permit movement of the striker assembly.

   Torque: 177 lb.in (20 Nm)

4. After operation check the alignment and correct if necessary.

Courtesy of FORD MOTOR COMPANY

Check

1. Check body to the sliding door dimensions.
   1. Dimension: 0.1575 ±0.0591 in (4 ±1.5 mm)
   2. Dimension: 0.0276 ±0.0394 in (.7 ±1 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. Loosen the retainers. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

2. 1. Loosen the sliding door hinge pivot bolts.
   2. Adjust the retainer.
3. 1. Tighten the sliding door hinge pivot bolts.
4. After operation check the alignment and correct if necessary.

   Courtesy of FORD MOTOR COMPANY

5. Tighten the retainers.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. NOTE: Only tighten the bolts finger tight at this stage.

   Tighten the bolts.

2. NOTE: Take extra care not to damage the edges of the component.

   Carefully close the sliding door.

3. Open the sliding door.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
