Front Door Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

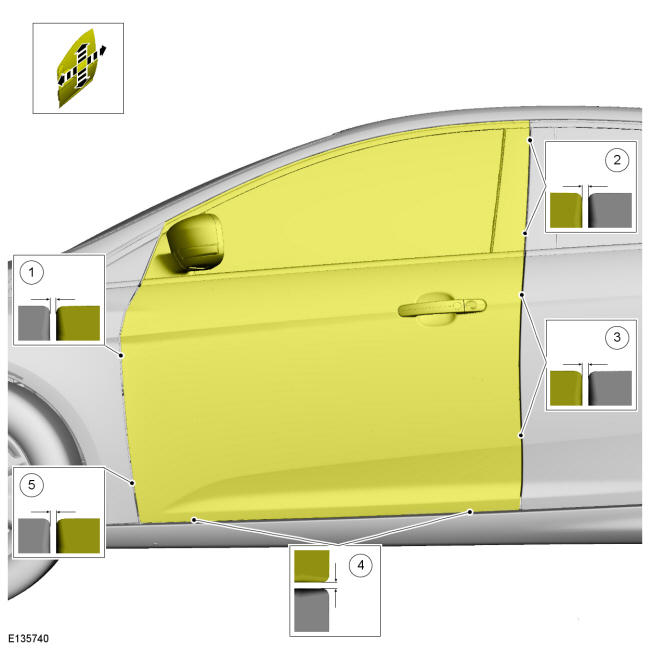

1. Check body to the front door dimensions.
   1. Dimension: 0.1575 ±0.0591 in (4 ±1.5 mm)
   2. Dimension: 0.1772 ±0.0591 in (4.5 ±1.5 mm)
   3. Dimension: 0.1575 ±0.0591 in (4 ±1.5 mm)
   4. Dimension: 0.2087 ±0.0591 in (5.3 ±1.5 mm)
   5. Dimension: 0.1575 ±0.0591 in (4 ±1.5 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

Drivers door

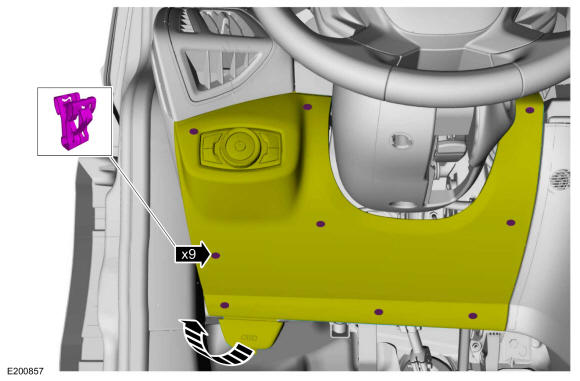

1. Release the clips and position aside the instrument panel finish panel.

   Courtesy of FORD MOTOR COMPANY

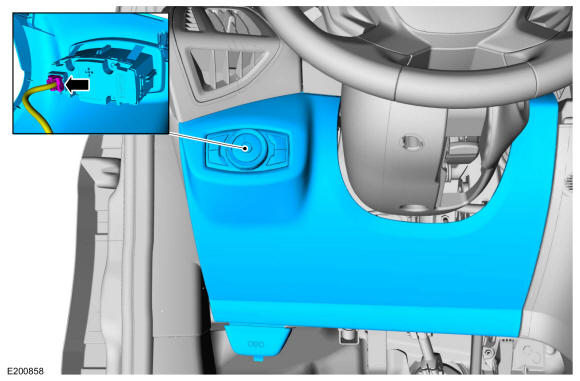

2. Disconnect the electrical connector and remove the instrument panel finish panel.

   Courtesy of FORD MOTOR COMPANY

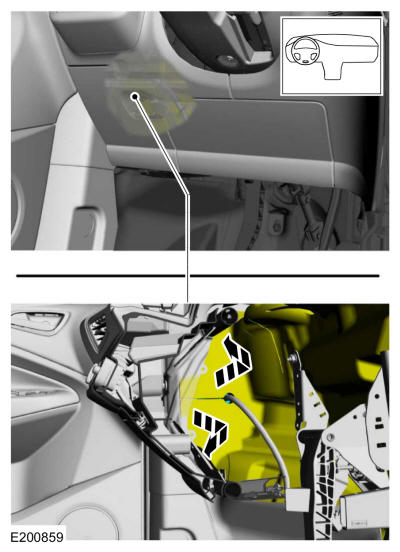

3. Position aside the LH side inner insulator dash panel.

   Courtesy of FORD MOTOR COMPANY

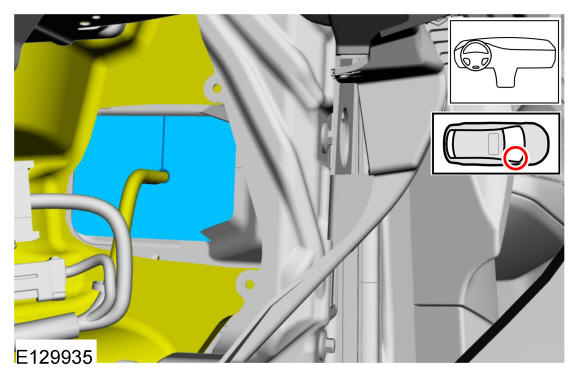

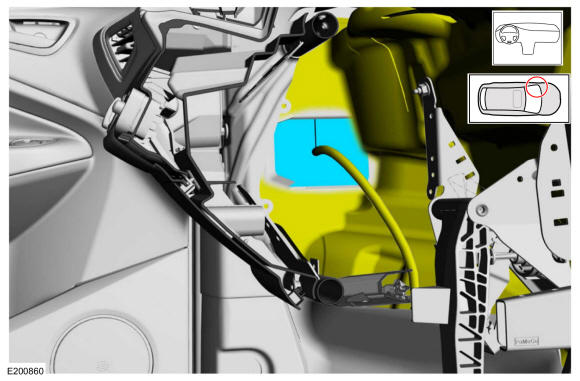

4. Remove the LH side lower cowl pad.

   Courtesy of FORD MOTOR COMPANY

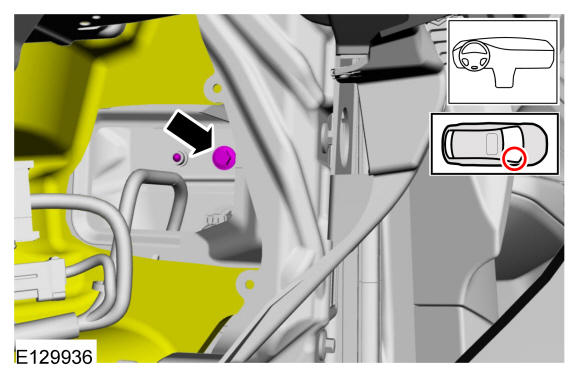

5. Loosen the bolt.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

   Passenger Door

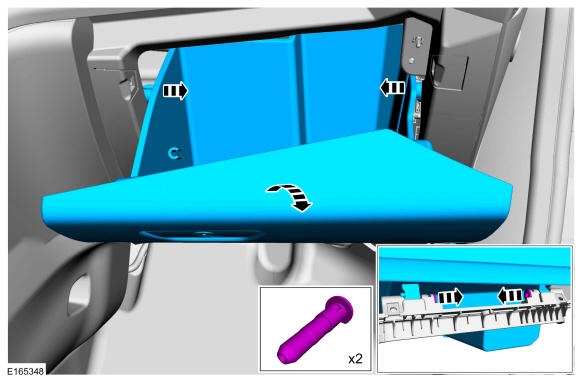

6. Remove the 2 hinge pins and remove the glove compartment.

   Courtesy of FORD MOTOR COMPANY

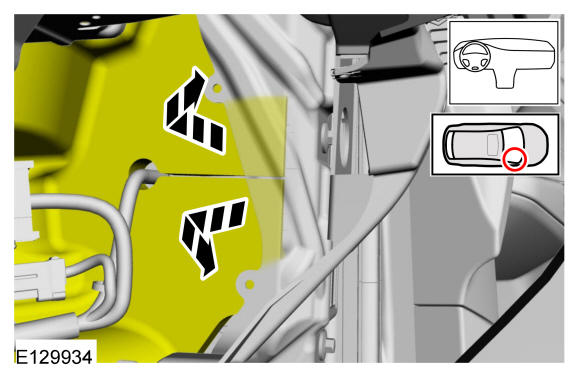

7. Position aside the inner insulator dash panel.

   Courtesy of FORD MOTOR COMPANY

8. Remove the lower cowl pad.

   Courtesy of FORD MOTOR COMPANY

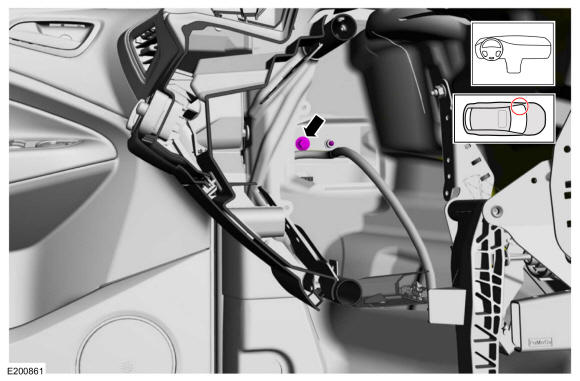

9. Loosen the bolt.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

   NOTE: LH side shown, RH side similar.

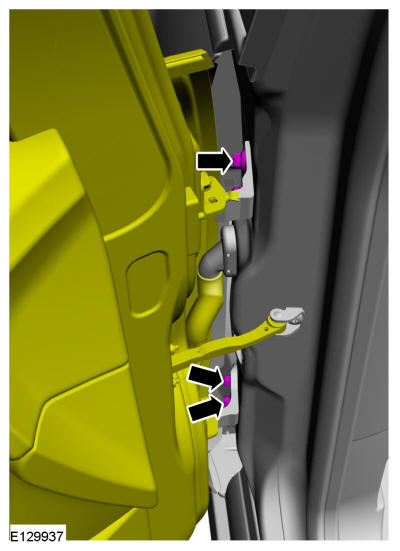

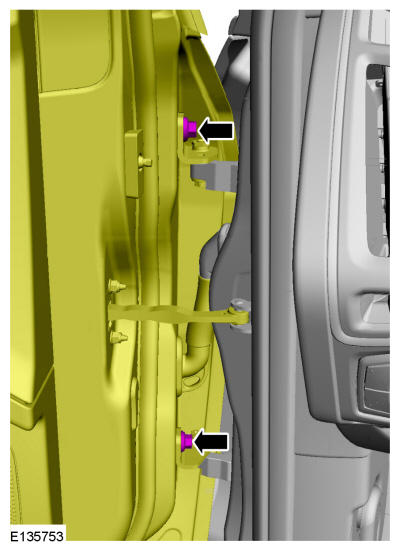

10. Loosen the bolts enough to permit movement of the front door. Loosen: 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

11. Loosen the bolts enough to permit movement of the striker assembly. Loosen: 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

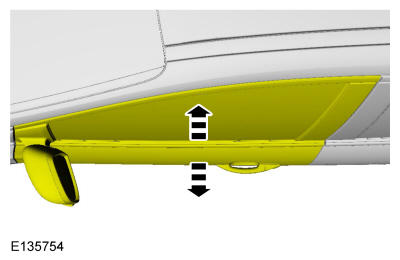

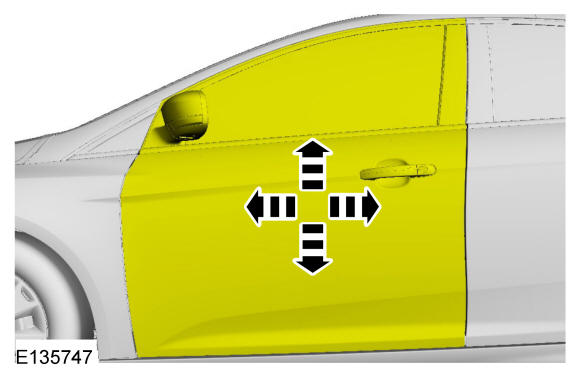

12. Adjust the front door as shown.

    Courtesy of FORD MOTOR COMPANY

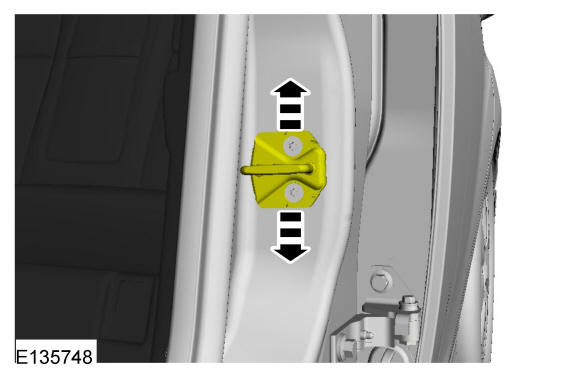

13. Adjust the striker assembly as shown.

    Courtesy of FORD MOTOR COMPANY

14. Tighten the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Tighten the bolts.

    Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

Inspection

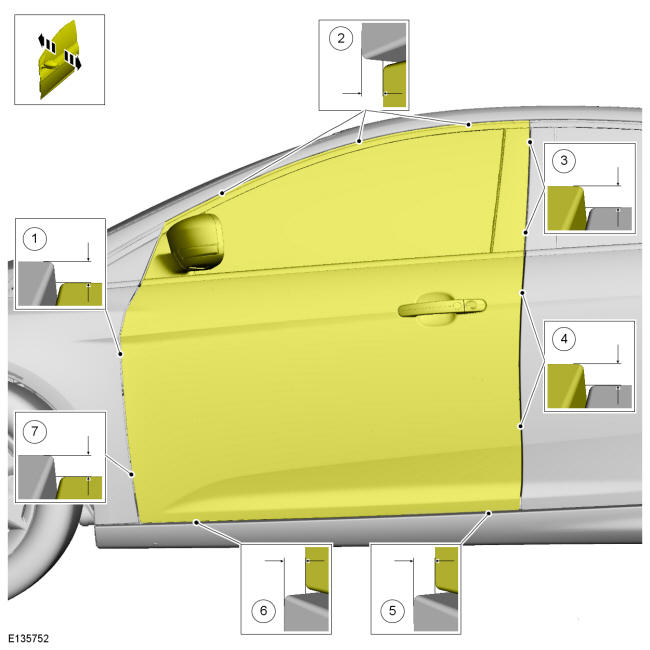

1. Check body to the front door dimensions.
   1. Dimension: 0.0394 -0.0394/+0.0551 in (1 -1/+1.4 mm)
   2. Dimension: 0.0984 ±0.0591 in (2.5 ±1.5 mm)
   3. Dimension: 0.0000 ±0.0591 in (±1.5 mm)
   4. Dimension: 0.0000 -0.0630/+0.0394 in (-1.6/+1 mm)
   5. Dimension: 0.2520 ±0.0591 in (6.4 ±1.5 mm)
   6. Dimension: 0.3228 ±0.0591 in (8.2 ±1.5 mm)
   7. Dimension: 0.0394 -0.0394/+0.0551 in (1 -1/+1.4 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. Loosen the bolts enough to permit movement of the front door. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

2. Loosen the bolts enough to permit movement of the striker assembly. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

3. Adjust the front door as shown.

   Courtesy of FORD MOTOR COMPANY

4. Adjust the striker assembly as shown.

   Courtesy of FORD MOTOR COMPANY

5. Tighten the bolts.

   Torque: 177 lb.in (20 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Tighten the bolts.

   Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
