Starter Motor: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. WARNING: WARNING: Before beginning any service procedure, refer to Health And Safety Precautions within service information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions .

2. Disconnect the battery. Refer to: Battery Disconnect and Connect .
3. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

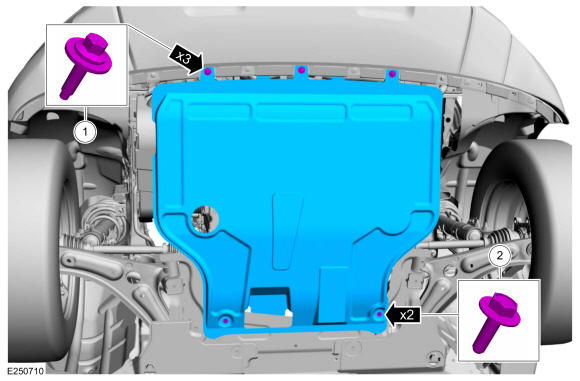

4. Remove the retainers and the underbody shield.

   Torque: 1: 13 lb.in (1.5 Nm) 2: 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

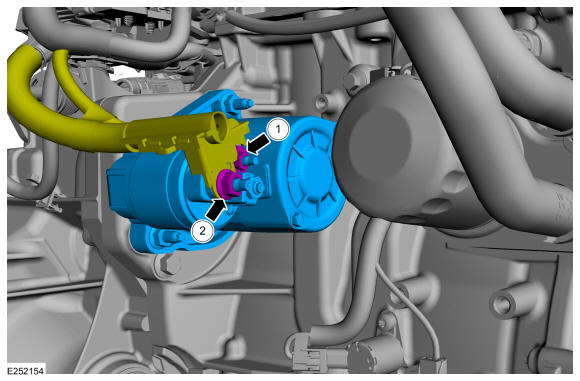

5. 1. Remove the starter motor solenoid control wire retaining nut.

      Torque: 53 lb.in (6 Nm)

   2. Remove the starter motor solenoid positive battery cable retaining nut.

      Torque: 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

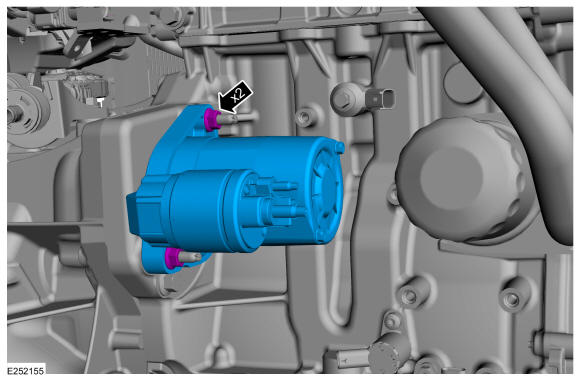

6. Remove the starter motors nuts.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
