Tailgate Release Handle: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the tailgate latch. Refer to: Tailgate Latch .
  2. Remove the tailgate release handle.

    1. Release the tailgate release handle.
    2. Remove the tailgate release handle.

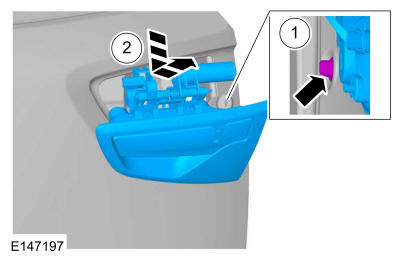

GFD329194Courtesy of FORD MOTOR COMPANY
