Rear Door Latch: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Rear Door Trim Panel .
Refer to: Exterior Rear Door Handle .

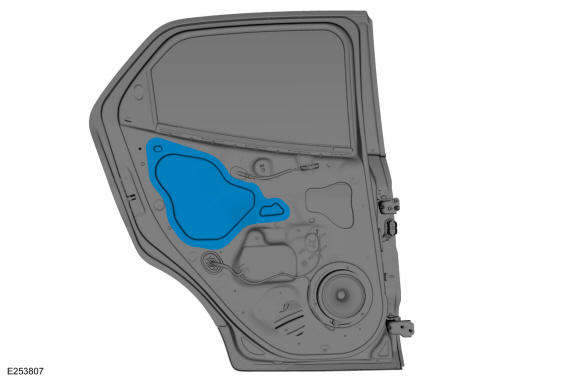

Remove the rear door watershield.

Courtesy of FORD MOTOR COMPANY

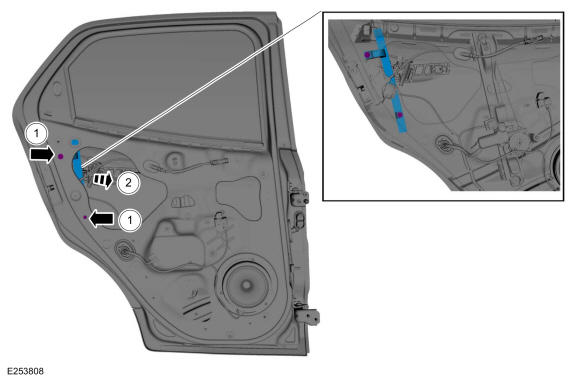

Remove the rear door glass run and bracket.
1. Remove the rear door glass run and bracket bolts.
  Torque: 27 lb.in (3 Nm)
2. Remove the rear door glass run and bracket.
Courtesy of FORD MOTOR COMPANY
Remove the exterior rear door handle reinforcement screw and exterior rear door handle gasket.
1. Remove the exterior rear door handle gasket.
2. Remove the exterior rear door handle reinforcement screw.
Courtesy of FORD MOTOR COMPANY
Remove the rear door latch bolts.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

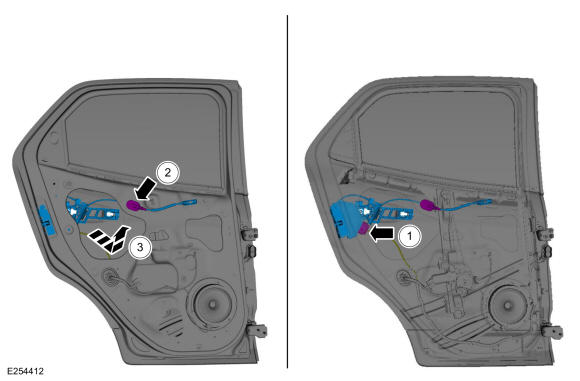

Remove the rear door latch and exterior rear door handle reinforcement as an assembly.
1. Disconnect the electrical connector from the rear door latch.
2. Route the interior rear door handle cable through the door.
3. Remove the rear door latch and exterior rear door handle reinforcement as an assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

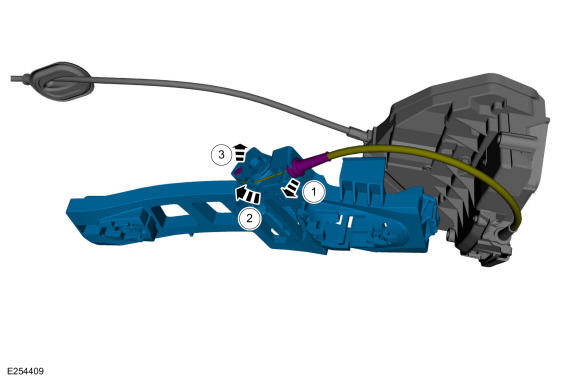

Remove the rear door latch from the exterior rear door handle reinforcement.
1. Disconnect the exterior door handle cable from the mounting bracket.
2. Route the exterior door handle cable out of the exterior rear door handle reinforcement.
3. Remove the exterior door handle cable end from the exterior rear door handle reinforcement.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

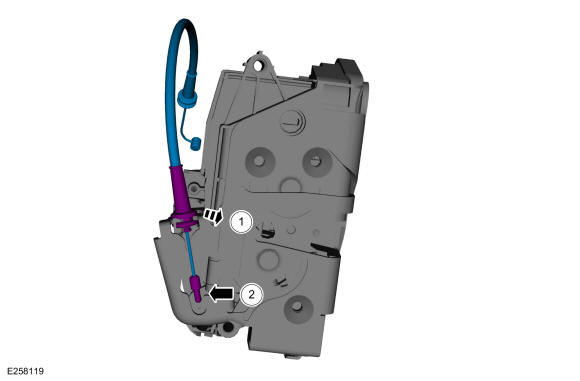

Remove the exterior door handle cable from the rear door latch.
1. Disconnect the exterior door handle cable from the mounting bracket.
2. Remove the exterior door handle cable from the rear door latch.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

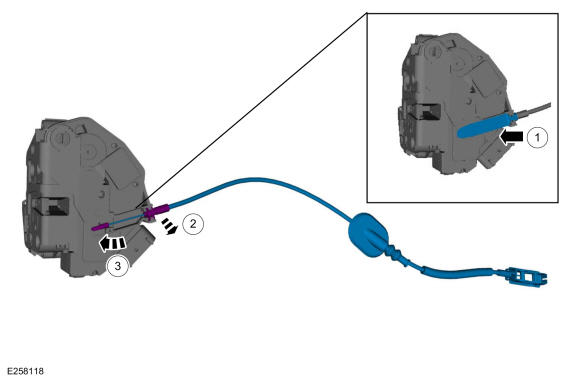

Remove the interior rear door handle cable from the rear door latch.
1. Remove the cover from the interior rear door handle cable.
2. Disconnect the interior rear door handle cable from the mounting bracket.
3. Remove the interior rear door handle cable end from the rear door latch.

Courtesy of FORD MOTOR COMPANY
