Keyless Entry Rear Antenna: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

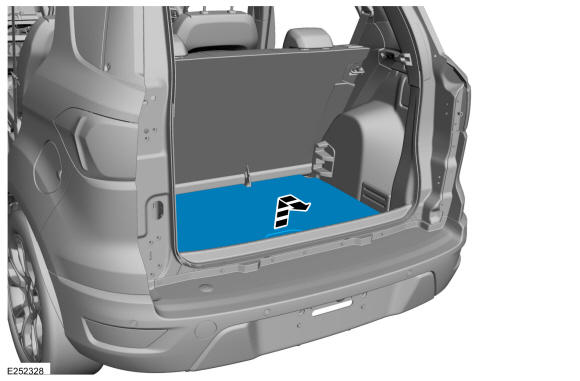

Remove the luggage compartment floor cover.

Courtesy of FORD MOTOR COMPANY

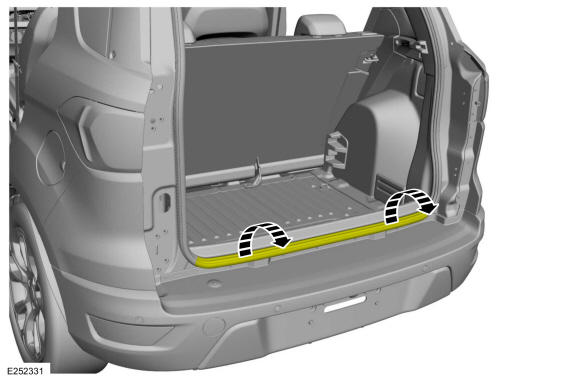

Position the liftgate weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

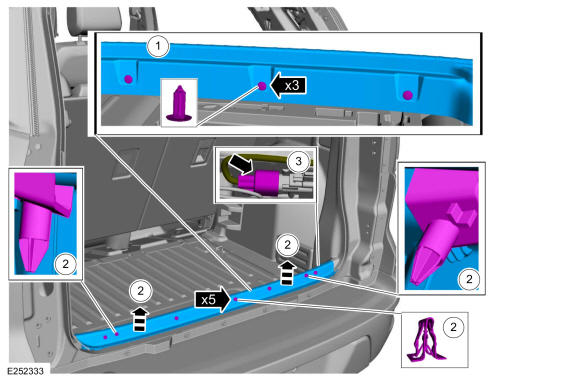

Remove the load compartment scuff plate trim panel.
1. Remove the pin-type retainers.
2. Release the clips and the locator pins.
3. Disconnect the keyless entry rear antenna electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

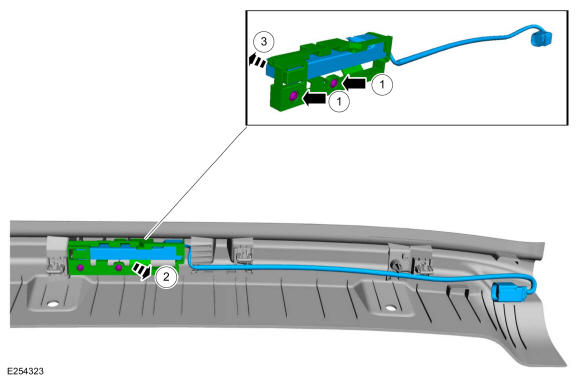

Remove the keyless entry rear antenna
1. Remove the screws.
2. Remove the keyless entry rear antenna and bracket assembly.
3. Remove the keyless entry rear antenna from the bracket assembly.

Courtesy of FORD MOTOR COMPANY
