Hood Latch Release Handle: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

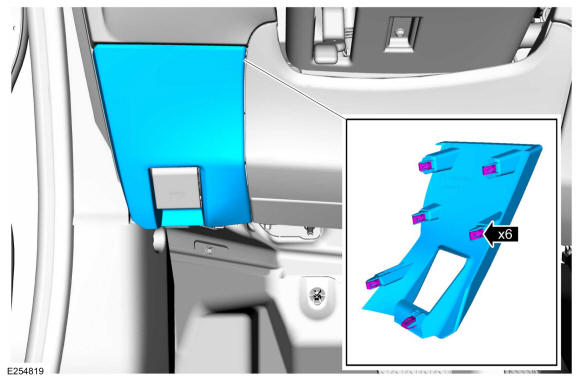

  1. Remove the LH instrument panel trim cover.
    GFD329168Courtesy of FORD MOTOR COMPANY

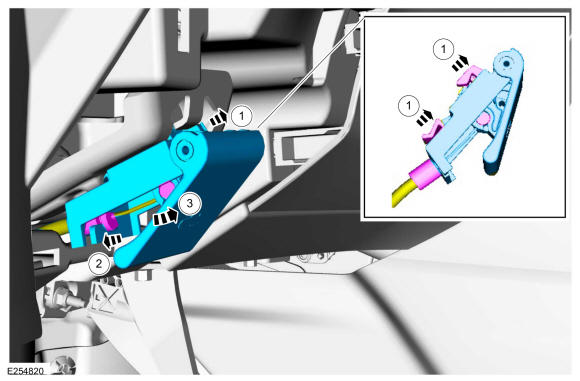

  2. Remove the hood latch release handle.

    1. Release the hood latch release handle retaining tabs from the instrument panel.
    2. Release the hood latch release cable from the hood latch release handle mounting bracket.
    3. Remove the hood latch release cable eyelet from the hood latch release handle.

GFD329169Courtesy of FORD MOTOR COMPANY
