Hood Latch Release Cable: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner. Refer to: Air Cleaner - 1.0L. Refer to: Air Cleaner. Refer to: Air Cleaner - 2.0L.
  2. Remove the battery tray. Refer to: Battery Tray .
  3. Remove the hood latch release handle. Refer to: Hood Latch Release Handle .

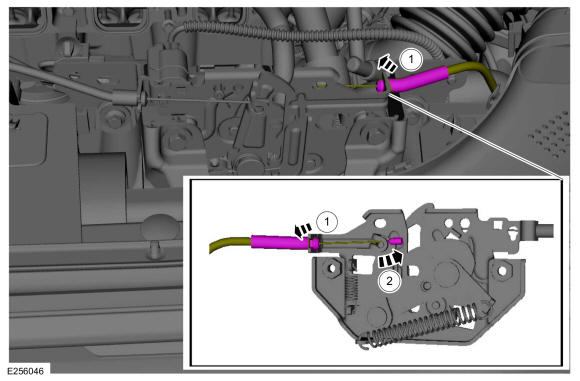

  4. Disconnect the primary hood latch release cable.

    1. Disconnect the primary hood latch release cable from the mounting bracket.
    2. Remove the primary hood latch release cable eyelet from the hood latch.

    GFD329161Courtesy of FORD MOTOR COMPANY

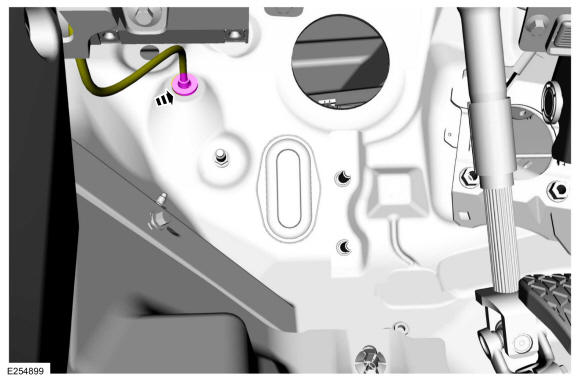

  5. Route the hood latch release cable and grommet into the engine compartment.
    GFD329162Courtesy of FORD MOTOR COMPANY

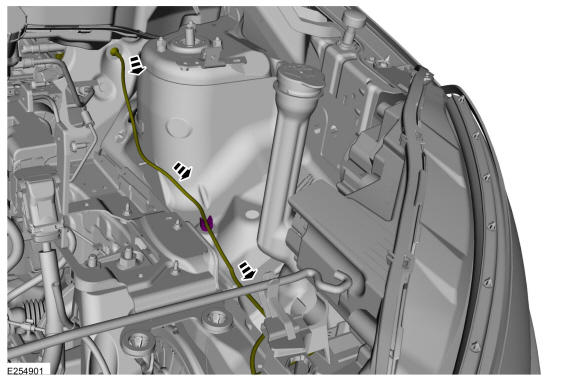

  6. Route the hood latch release cable and release cable routing clip.
    GFD329163Courtesy of FORD MOTOR COMPANY

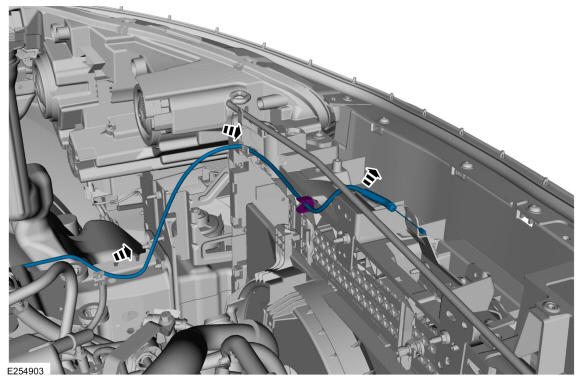

  7. Release cable routing clip and remove the hood latch release cable.
GFD329164Courtesy of FORD MOTOR COMPANY
