Hood Latch Release Cable: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

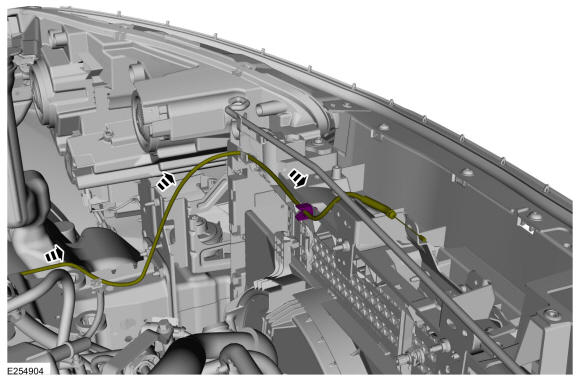

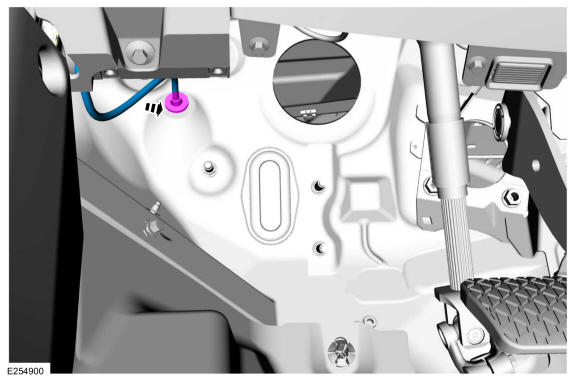

- Route the hood latch release cable and grommet into the engine compartment.
- Route the hood latch release cable and secure cable routing clip.
- Route the hood latch release cable and secure cable routing clip.
- Connect the primary hood latch release cable.

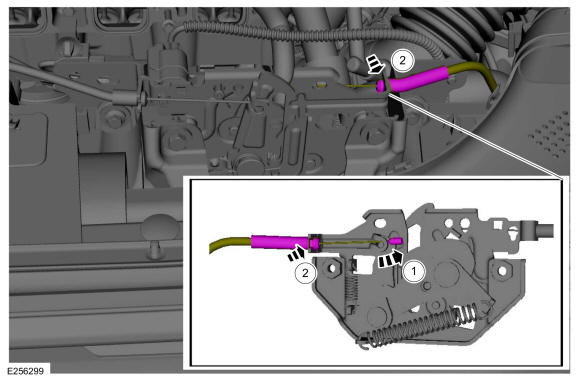

- Install the primary hood latch release cable eyelet to the hood latch.
- Connect the primary hood latch release cable to the mounting bracket.
- Install the hood latch release handle. Refer to: Hood Latch Release Handle .
- Install the battery tray. Refer to: Battery Tray .
- Install the air cleaner. Refer to: Air Cleaner - 1.0L. Refer to: Air Cleaner. Refer to: Air Cleaner - 2.0L.
