Front Door Lock Cylinder: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LHD shown in illustration, RHD similar.
NOTE:
Repair individual door lock cylinders by discarding the inoperative door lock cylinder and building a new door lock cylinder using the appropriate lock repair service kit. The lock repair service kit includes a detailed instruction sheet to build the new lock to match the key cut pattern for the vehicle, thus allowing for single point replacement without needing to replace or reprogram other locks or keys. Remove the exterior front door handle.

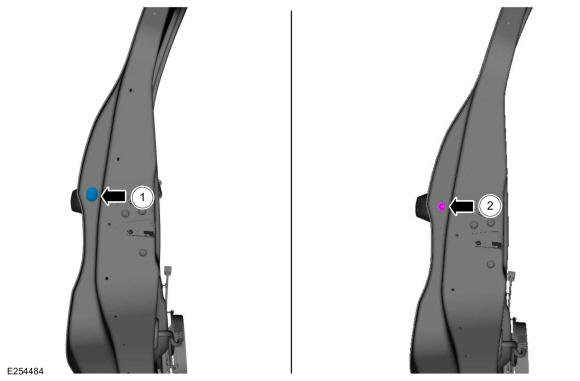

- Remove the access plug and the exterior front handle retaining screw.
- Remove the access plug from the front door.
- Remove the exterior front door handle retaining screw.
- Remove the exterior front door handle trim cover and remove the front door lock cylinder.
