Front Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown in illustration, RH side similar.
  1. Remove the front door trim panel Refer to: Front Door Trim Panel .
  2. Remove the front door lock control switch.

    1. Release the front door lock control switch retaining tabs.
    2. Remove the front door lock control switch from the front door trim panel.

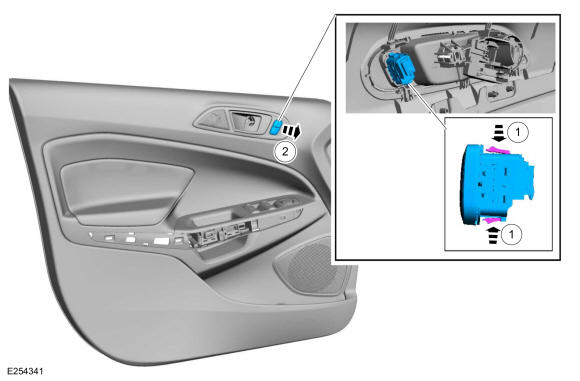

GFD329156Courtesy of FORD MOTOR COMPANY
