Instrument Panel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

All vehicles

  1. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .

    1.5L/2.0L

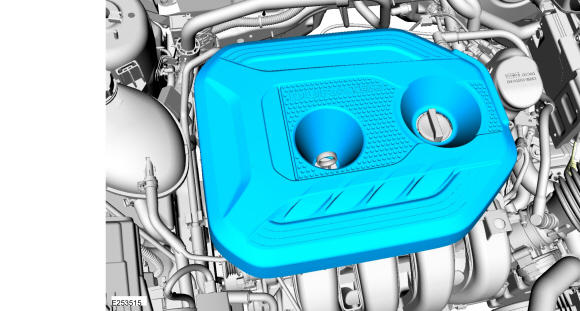

  2. Remove the engine appearance cover.
    GFD329080Courtesy of FORD MOTOR COMPANY

    1.5L

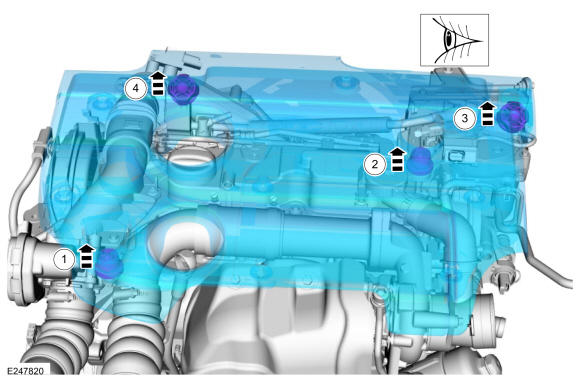

  3. Remove the engine appearance cover.
    GFD329081Courtesy of FORD MOTOR COMPANY

    All vehicles

  4. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

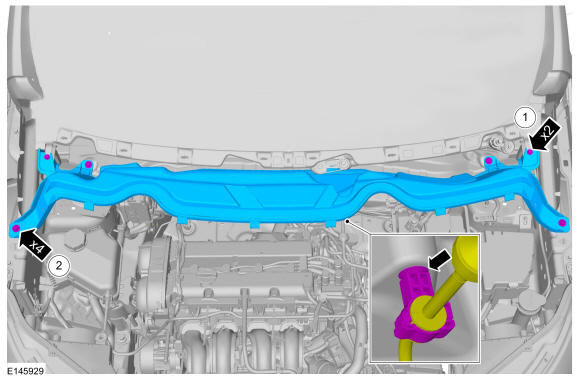

  5. Remove the cowl panel bolts, position aside the vacuum line and remove the cowl panel.

    • Remove the bolts.

      Torque: 27 lb.in (3 Nm)

    • Remove the bolts.

      Torque: 44 lb.in (5 Nm)

    GFD329082Courtesy of FORD MOTOR COMPANY

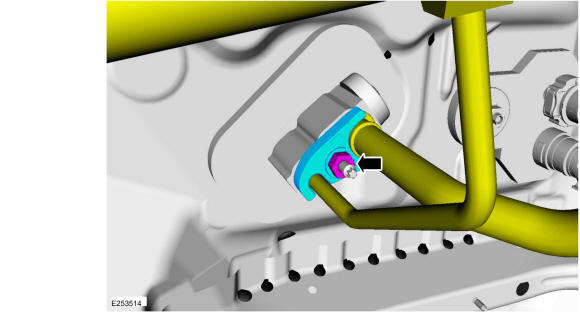

  6. Remove the thermostatic expansion valve nut and flange, and position aside the lines.

    • Make sure to cover any open ports to prevent debris from entering the system.

      Torque: 133 lb.in (15 Nm)

    • NOTE: Only use the specified material to lubricate the seals.

      Install and lubricate new O-rings seals

    GFD329083Courtesy of FORD MOTOR COMPANY

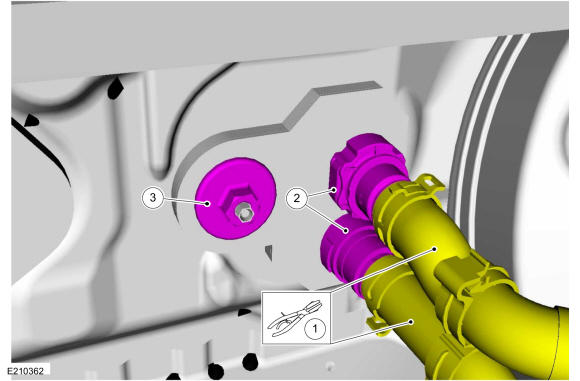

    1. Pinch off the heater hoses. Use the General Equipment: Locking Pliers
    2. Disconnect the heater hoses.
    3. Remove the HVAC nut.

      Torque: 9 lb.in (1 Nm)

    • Make sure to cover any open ports to prevent coolant from spilling into the interior while removing the instrument panel from the vehicle.

    GFD329084Courtesy of FORD MOTOR COMPANY

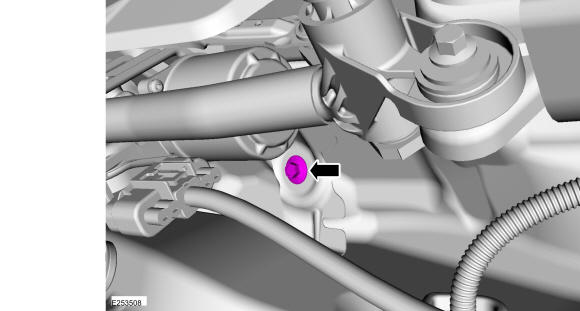

  8. Remove the cowl to in-vehicle cross beam bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD329085Courtesy of FORD MOTOR COMPANY
  9. Remove the floor console. Refer to: Floor Console .
  10. Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .

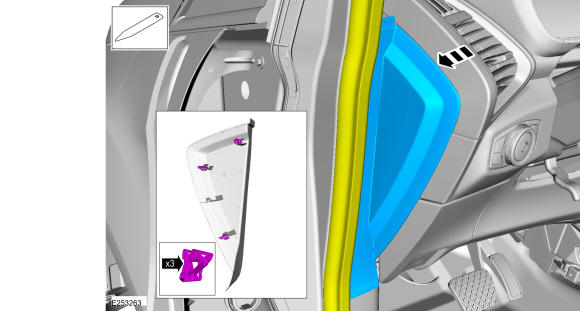

  11. Position aside the weather strip, release the clips and remove the LH instrument panel side trim panel.
    GFD329086Courtesy of FORD MOTOR COMPANY

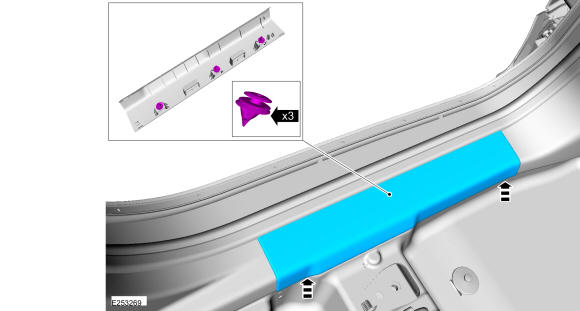

  12. Release the retainers and remove the LH scuff plate.
    GFD329087Courtesy of FORD MOTOR COMPANY

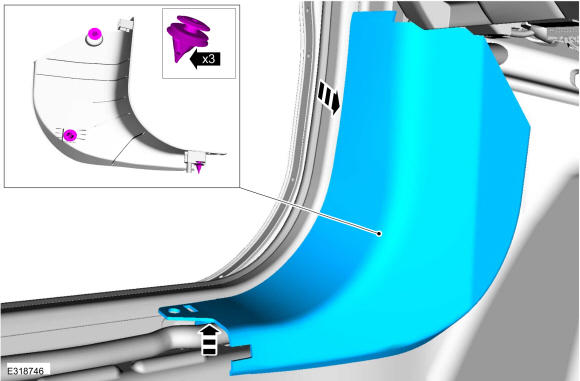

  13. Release the retainers and remove the LH lower cowl trim panel.
    GFD329088Courtesy of FORD MOTOR COMPANY

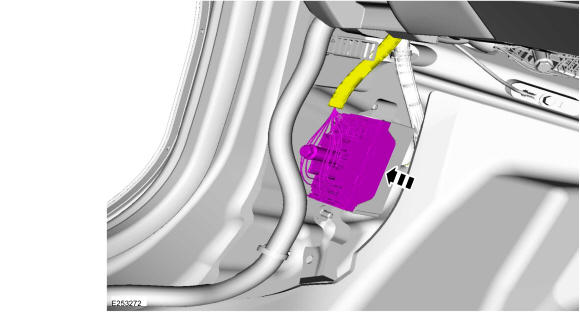

  14. Disconnect the electrical connector.
    GFD329089Courtesy of FORD MOTOR COMPANY
  15. Remove the hood release handle. Refer to: Hood Latch Release Handle .

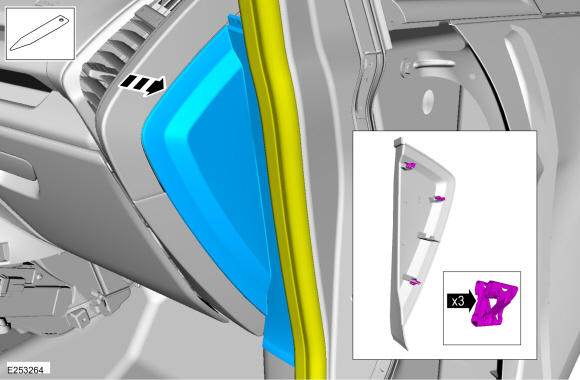

  16. Position aside the weather strip, release the clips and remove the RH instrument panel side trim panel.
    GFD329090Courtesy of FORD MOTOR COMPANY

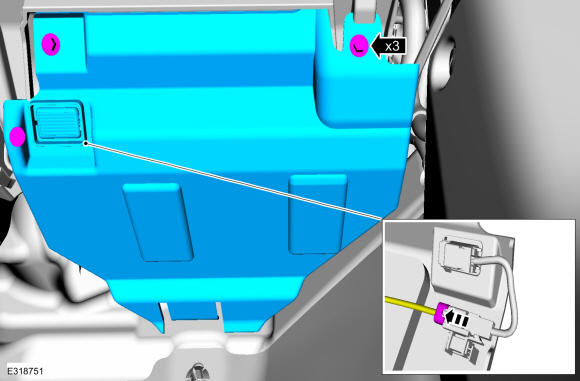

  17. Remove the bolts and the RH hush panel.

    • Disconnect the electrical connector.

    GFD329091Courtesy of FORD MOTOR COMPANY

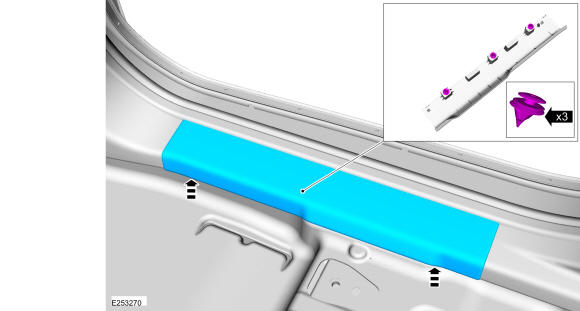

  18. Release the retainers and remove the RH scuff plate.
    GFD329092Courtesy of FORD MOTOR COMPANY

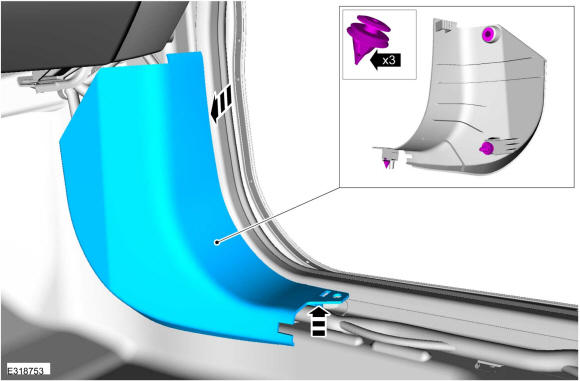

  19. Release the retainers and remove the RH lower cowl trim panel.
    GFD329093Courtesy of FORD MOTOR COMPANY

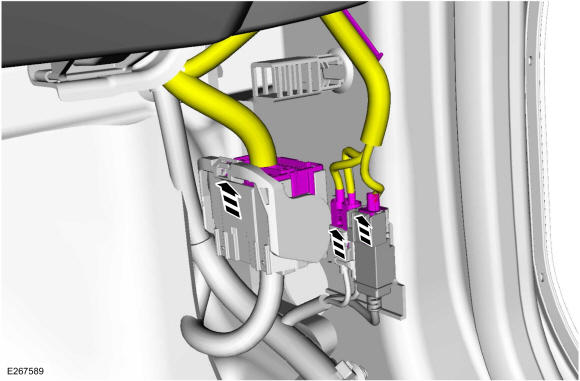

  20. Disconnect the electrical connectors.
    GFD329094Courtesy of FORD MOTOR COMPANY
  21. Remove the driver side front door only. Refer to: Front Door .

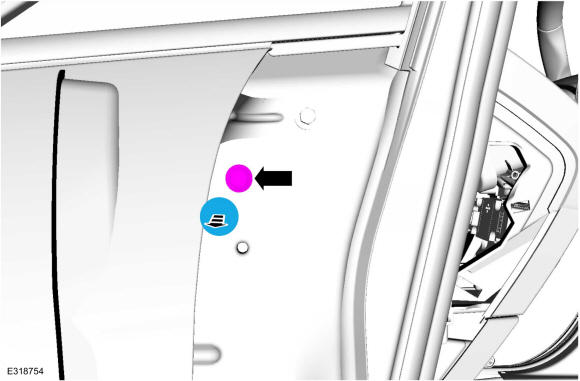

  22. NOTE: Driver side door opening, upper cowl.

    Remove the bolt cover and the LH upper cowl on in-vehicle cross beam bolt.

    Torque: 18 lb.ft (25 Nm)

    GFD329095Courtesy of FORD MOTOR COMPANY
  23. NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

    Secure the steering column.

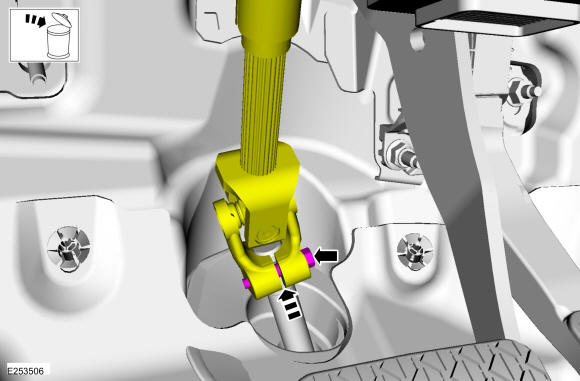

  24. WARNING: WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: NOTICE:

    Remove and discard the lower steering column shaft coupler bolt and separate the steering column shaft coupler from the steering shaft.

    Torque: 25 lb.ft (34 Nm)

    GFD329096Courtesy of FORD MOTOR COMPANY

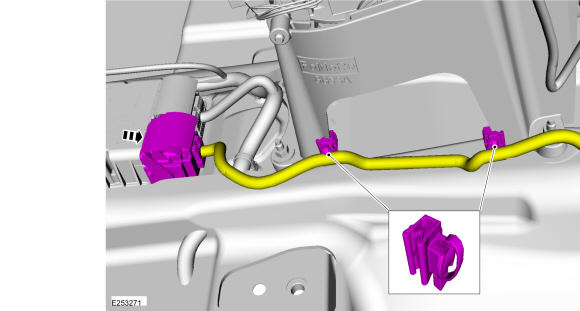

  25. Disconnect the electrical connector, release the harness retainers and position aside the harness.
    GFD329097Courtesy of FORD MOTOR COMPANY

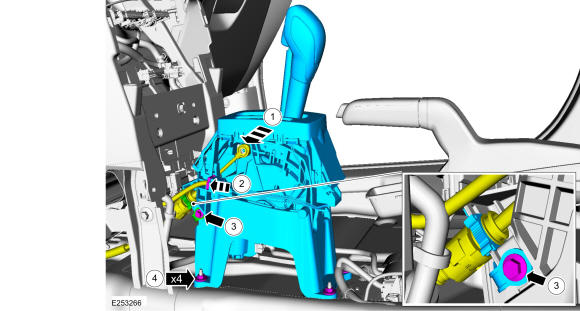

    Vehicles with automatic transmission

    1. Remove the selector lever cable end from the selector lever mechanism.
    2. Disconnect the electrical connector.
    3. Remove the selector lever cable retaining clip bolt and remove the clip from the selector lever cable.
    4. Remove the nuts and the selector lever assembly.

      Torque: 80 lb.in (9 Nm)

    GFD329098Courtesy of FORD MOTOR COMPANY

    All vehicles

  27. Remove the glove compartment. Refer to: Glove Compartment .

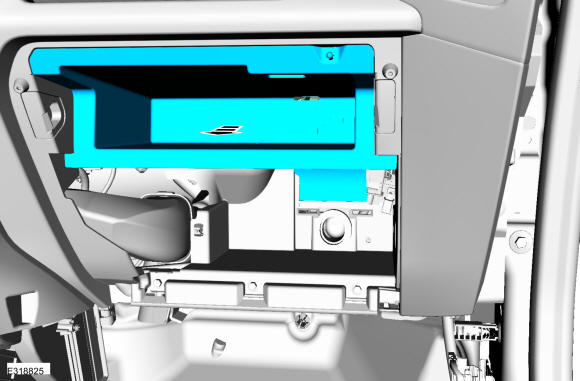

  28. Remove the glove compartment tray.
    GFD329099Courtesy of FORD MOTOR COMPANY

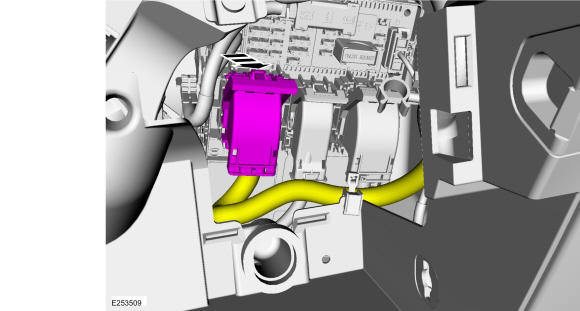

  29. Disconnect the electrical connector.
    GFD329100Courtesy of FORD MOTOR COMPANY

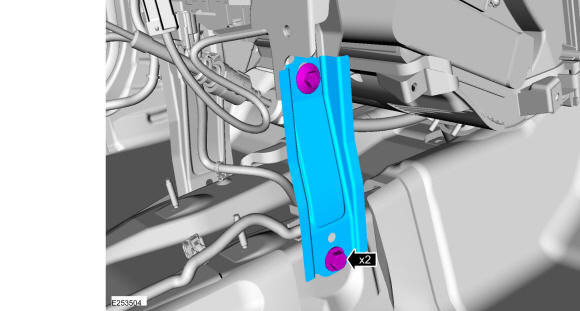

  30. Remove the bolts and the RH side instrument panel center support brace.

    Torque: 18 lb.ft (25 Nm)

    GFD329101Courtesy of FORD MOTOR COMPANY

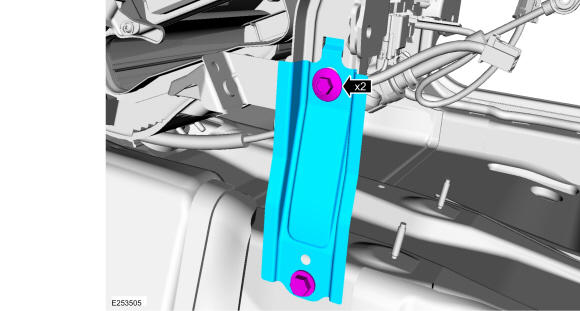

  31. Remove the bolts and the LH side instrument panel center support brace.

    Torque: 18 lb.ft (25 Nm)

    GFD329102Courtesy of FORD MOTOR COMPANY

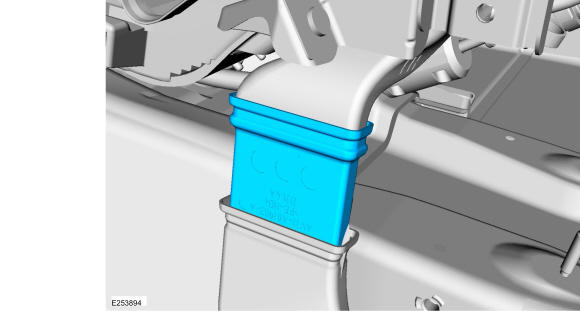

  32. NOTE: If equipped.

    Remove the LHHVAC duct.

    GFD329103Courtesy of FORD MOTOR COMPANY

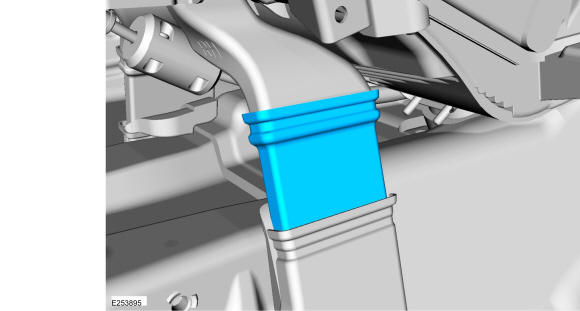

  33. NOTE: If equipped.

    Remove the RHHVAC duct.

    GFD329104Courtesy of FORD MOTOR COMPANY

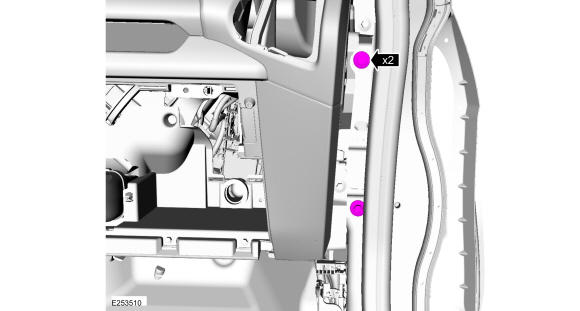

  34. Remove the RH instrument panel bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD329105Courtesy of FORD MOTOR COMPANY

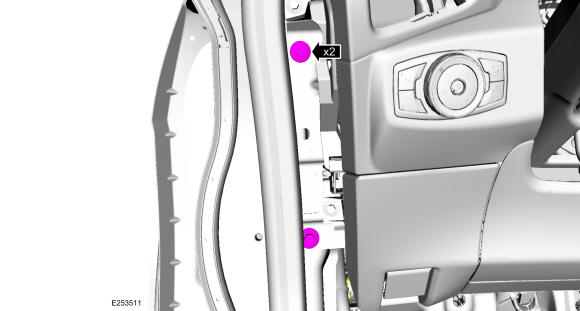

  35. Remove the LH instrument panel bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD329106Courtesy of FORD MOTOR COMPANY

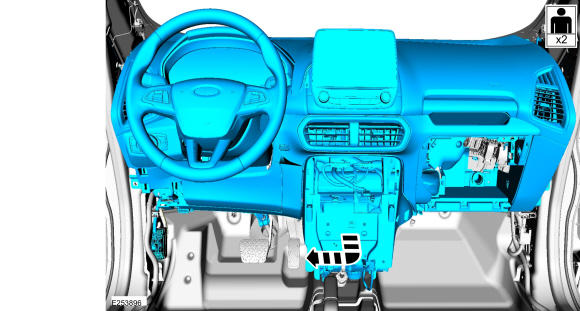

  36. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel through the drivers side door opening.

GFD329107Courtesy of FORD MOTOR COMPANY
