Transfer Case Rear Seal: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

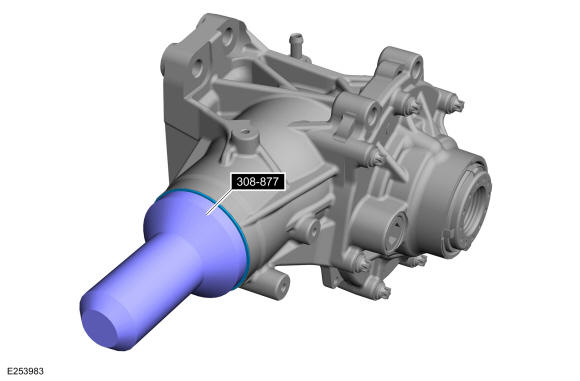

- Using the special tool, install a new rear seal. Use Special Service Tool: 308-877 Installer, Pinion Output Seal.
- If needed, replace the seal deflector on the output flange using a press.

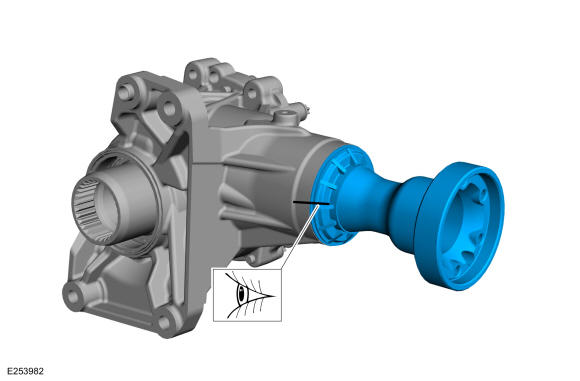

- Align the marks, and install the pinion flange.
- Install the PTU shield, then install and tighten the PTU shield bolts.
Torque: 124 lb.in (14 Nm)
-
NOTE: Refer to the rotational torque previously recorded with the Nm (lb-in) torque wrench. Tighten the pinion nut in small increments until it is within 2.3-3.0 Nm of the reference measurement. If 3.0 Nm is exceeded, then the collapsible spacer will be damaged and a new collapsible spacer will be required.

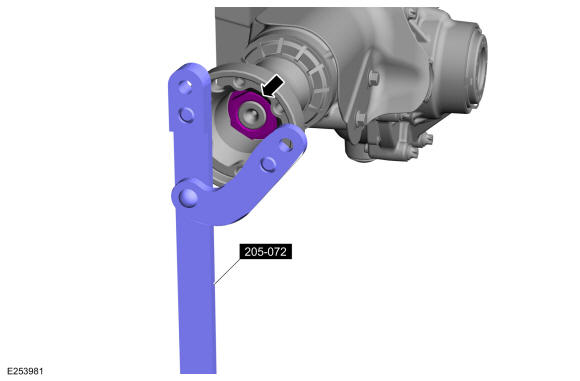

Using the special tool to hold the output pinion flange, install and tighten the new pinion flange nut.. Use Special Service Tool: 205-072 Universal Flange Holding Wrench.
- Install the PTU. Refer to: Transfer Case .
