Transfer Case Input Shaft Seal LH: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the PTU/transfer case. Refer to: Transfer Case .
  2. Remove the PTU cover bolts and PTU cover.
    GFD327835Courtesy of FORD MOTOR COMPANY

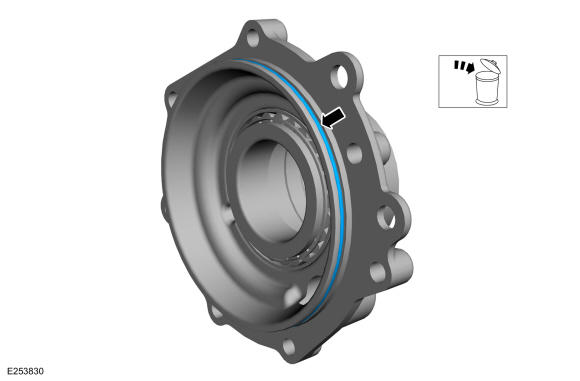

  3. Remove and discard the PTU cover O-ring seal.
    GFD327836Courtesy of FORD MOTOR COMPANY

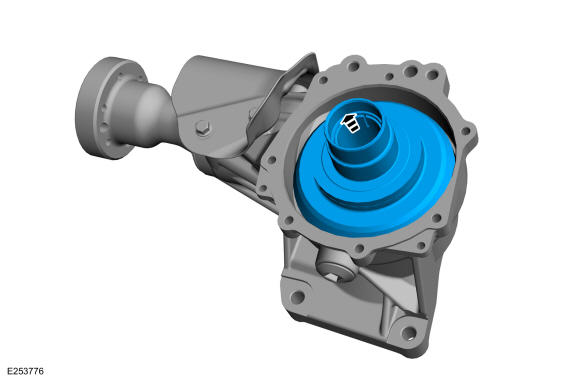

  4. Remove the input shaft.
    GFD327837Courtesy of FORD MOTOR COMPANY

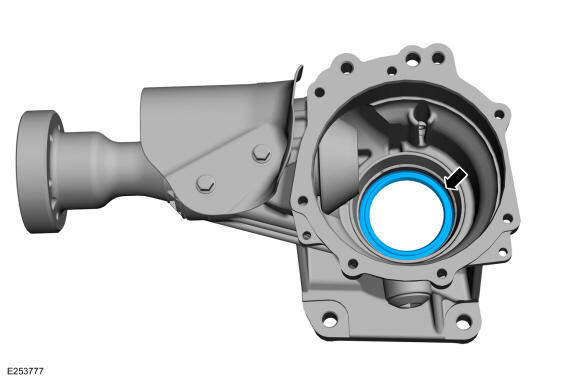

  5. Remove and discard the LH input shaft seal.
GFD327838Courtesy of FORD MOTOR COMPANY
