Transfer Case Input Shaft Seal LH: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

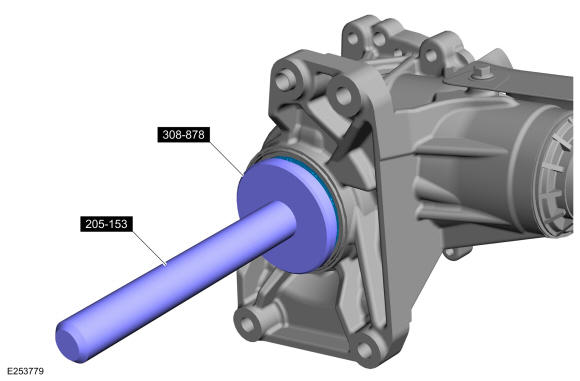

- Using the special tools, install a new LH input shaft seal. Use Special Service Tool: 308-878 Installer, Input Seal., 205-153 (T80T-4000-W) Handle.

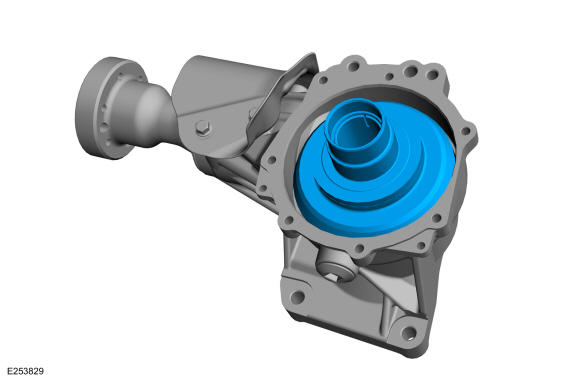

- Install the input shaft.

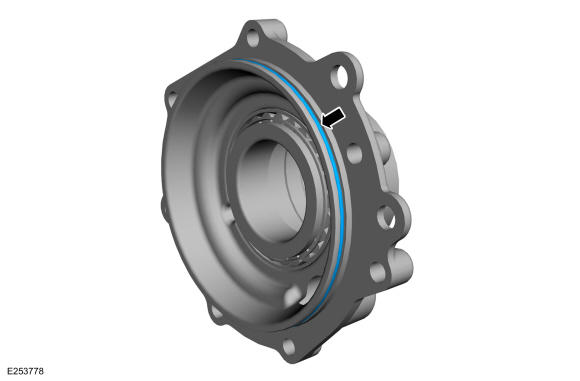

- Install a new PTU cover O-ring seal.

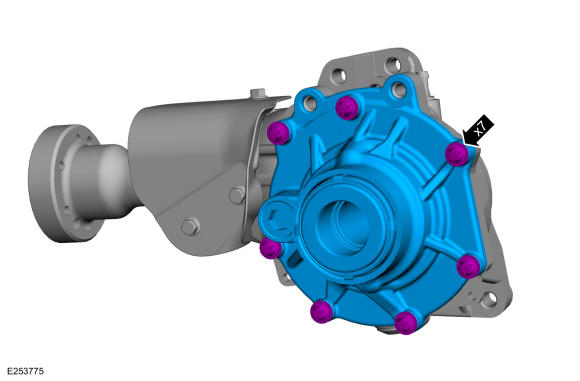

- Install the PTU cover and PTU cover bolts.
Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 35 deg.
- Install the PTU/transfer case. Refer to: Transfer Case .
