Transfer Case Fluid Level Check
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL | WSS-M2C942-A |
- Follow the health and safety precautions. Refer to: Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the engine undershield.

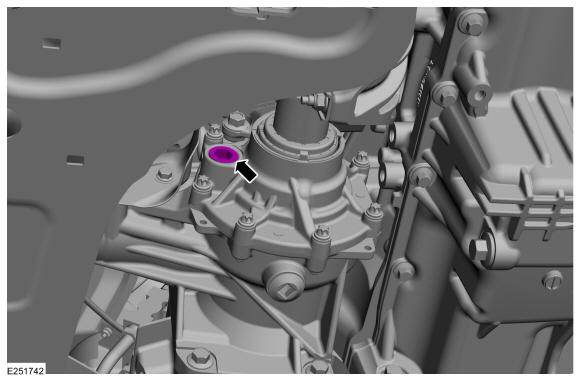

- Remove the PTU (Power Transfer Unit) fill plug.
-
NOTE: Incorrect fluid fill can result in transfer case failure.NOTE: Do not fill to the level of the fill plug, this will lead to filling excess oil.

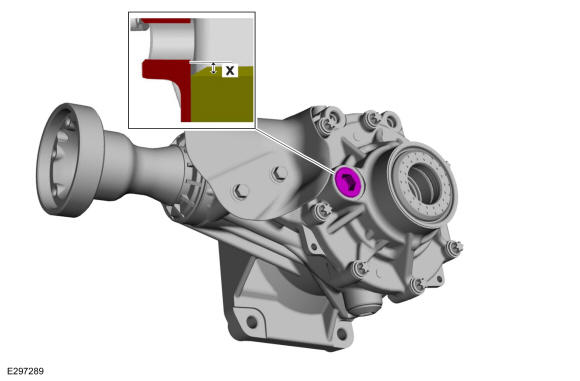

Add the specified amount and type of oil through the filler plug hole until the level reaches the bottom of the filler plug hole X: 0 mm. Refer to: Specifications .
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the PTU fill plug.
Torque: 44 lb.ft (60 Nm)

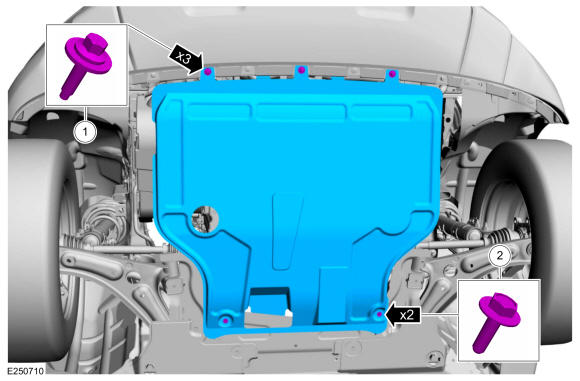

- Install the engine undershield.
- Torque: 18 lb.in (2 Nm)
- Torque: 18 lb.in (2 Nm)
