Removal And Installation: Battery: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery. Refer to: Battery Disconnect and Connect .

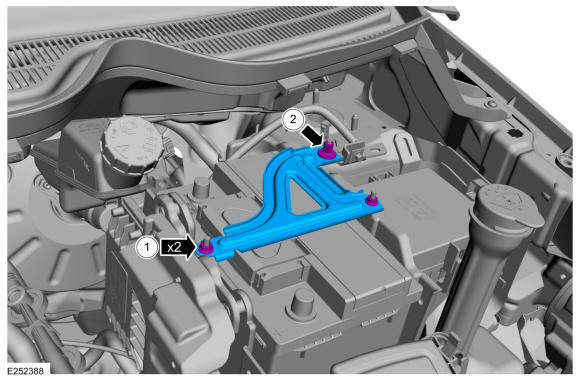

1. Remove the battery hold-down bracket nuts.
  Torque: 62 lb.in (7 Nm)
2. Remove the nut and the battery hold-down bracket.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

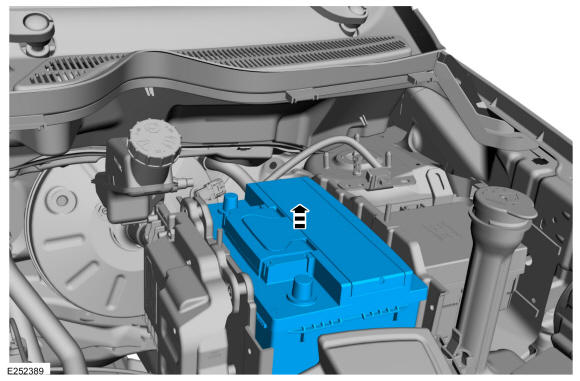

Remove the battery.

Courtesy of FORD MOTOR COMPANY
