Battery Cables - 1.5L Duratec (90kW/120PS) - I3/1.5L Duratec Flex Fuel (96kW/130PS) - I3: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

NOTE: The battery positive terminal is integrated into the Battery Junction Box (BJB).

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Vehicles with automatic transmission

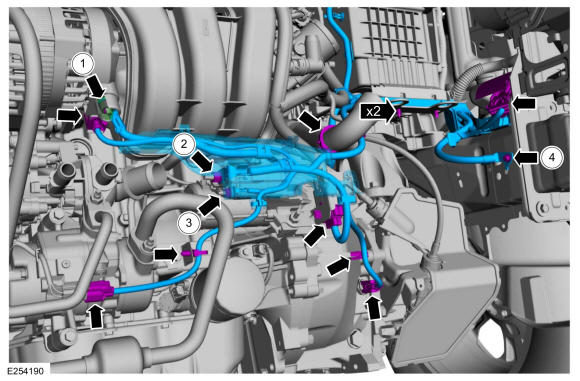

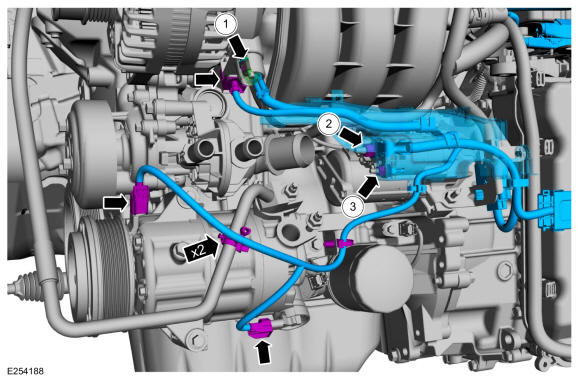

1. Torque: 89 lb.in (10 Nm)
2. Torque: 44 lb.in (5 Nm)
3. Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

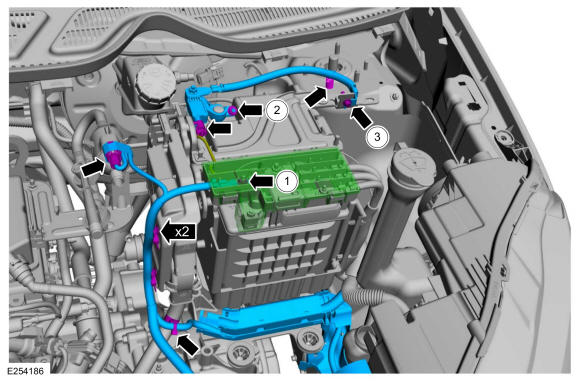

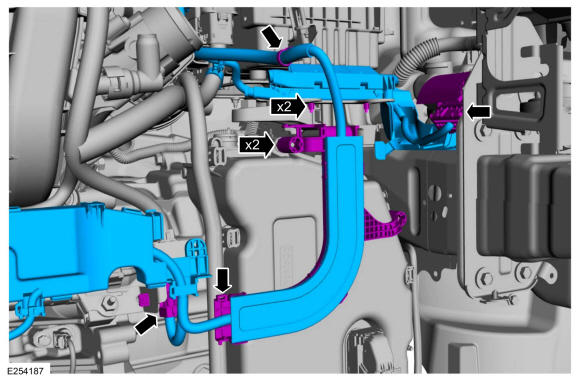

1. Torque: 133 lb.in (15 Nm)
2. Torque: 106 lb.in (12 Nm)
3. Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

Vehicles with manual transmission
1. Torque: 106 lb.in (12 Nm)
2. Torque: 44 lb.in (5 Nm)
3. Torque: 89 lb.in (10 Nm)
4. Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

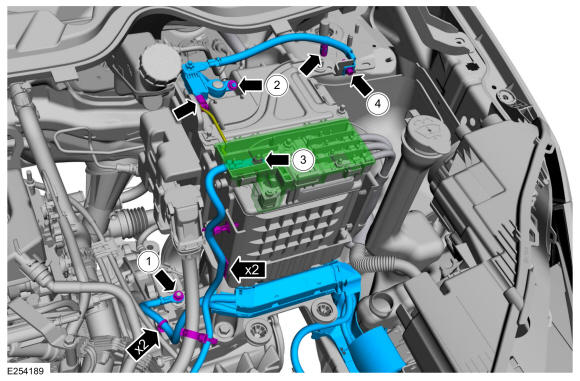

1. Torque: 133 lb.in (15 Nm)
2. Torque: 106 lb.in (12 Nm)
3. Torque: 53 lb.in (6 Nm)
4. Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
