Catalytic Converter: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
If the catalytic converter is not being replaced, the HO2S and the catalyst monitor sensor do not need to be removed from the catalytic converter. Disconnecting the electrical connectors is still necessary.
- Remove the PTU. Refer to: Transfer Case .

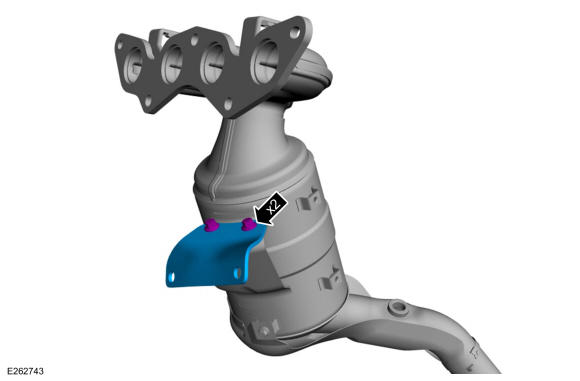

- Remove the bolts and catalytic converter mounting bracket.
- Remove the catalytic converter.

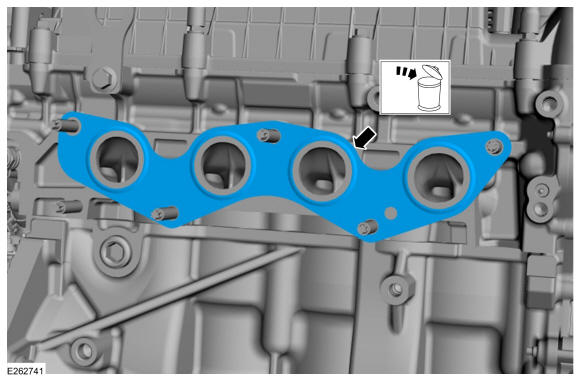

- Remove and discard the gasket.
