Catalytic Converter: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

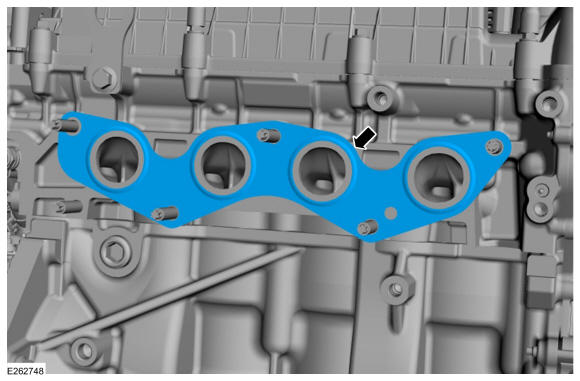

- Install a new gasket.

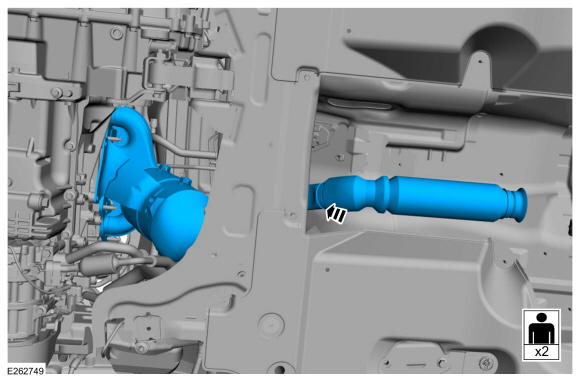

- Install the catalytic converter.
- Install the bolts and catalytic converter mounting bracket.
Torque: 17 lb.ft (23 Nm)
- Install the PTU. Refer to: Transfer Case .
